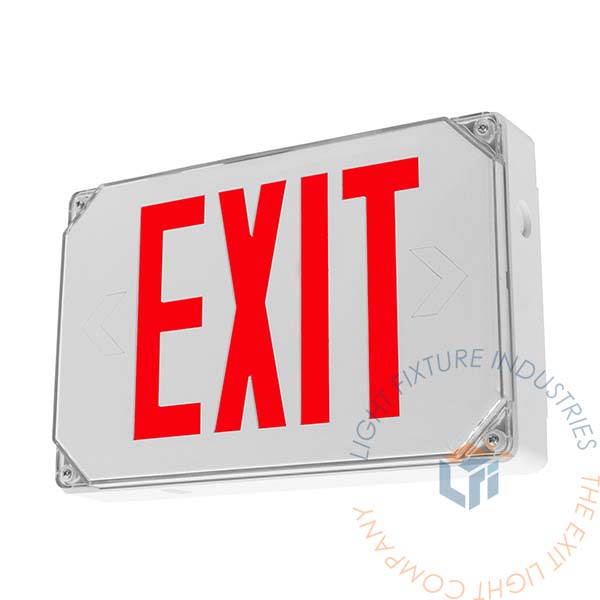

Exit Sign | Wet Location Rated Red [WLT-R]

A must for your outdoor exit signage needs, the engineering grade silicone gasketed enclosure and internal battery heater(Cold Weather Rated Units) provide an excellent solution. This exterior weatherproof ultra bright Exit Sign is a compact unit that provides the affordability you've been looking for in a high-end package. Long life LEDs and NiCad battery make this unit energy efficient and maintenance free! Suitable for top, side, and wall mount installations. Standard unit is capable of operating in temperatures 10° to 40 °C / 50 °F to 104 °F.

65.00 65.0 USD 65.00

59.00

  • Operation Type
  • Sides
  • Temp Rating

This combination does not exist.


Download Spec-Sheet:
Download MSDS:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Listed for wet location
  • Ultra bright LEDs
  • Suitable for top, side, and wall mount installations
  • Push-to-test switch
  • 120 or 277 VAC operation
  • Extremely low operating costs
  • Removable directional indicators
  • 5VA Flame retardant, UV stabilized polycarbonate enclosure
  • Maintenance free NiCad battery

Previous Product Codes: WLT-R

Compatible Battery: BAA-3618


SPECIFICATIONS

Dimensions
Width 2.5"
Height 8.5"
Length 12.5"
Weight 10.00 lb

WHAT'S INCLUDED

  • RED LED Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • Additional matching faceplate (extra cost)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

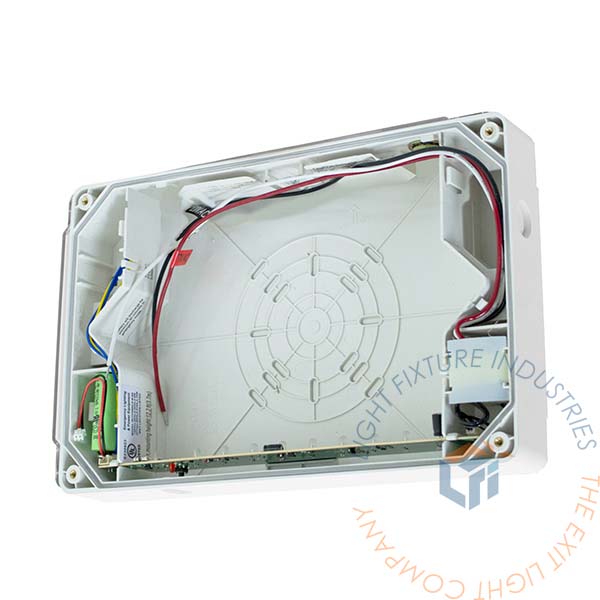

CONSTRUCTION

The WLT-R is constructed of 5VA flame retardant, UV stabilized polycarbonate housing. High impact, UV stabilized polycarbonate lens included, some discoloration may occur over time if installed in direct sunlight. Fully gasketed with engineering grade silicone. White housing is standard.

ILLUMINATION

The WLT-R series uses ultra bright, energy efficient red LEDs.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The WLT-R series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. The battery is protected by a low voltage cut-off circuit.

OPERATIONAL TEMPERATURE

Temperature Ratings
SeriesTemperature
Standard Option0° to 40 °C / 32 °F to 104 °F
Expanded Temperature Rated-20° to 50 °C / -4 °F to 122 °F

SELF-TESTING OPTION

Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

ELECTRICAL COMPONENTS

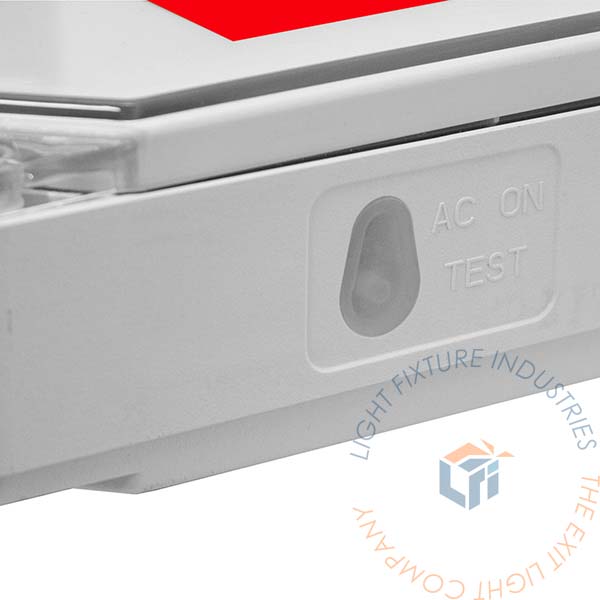

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

INSTALLATION

The WLT-R is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-outs provided for conduit feed applications. Knock-out chevrons for customized egress signage.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
