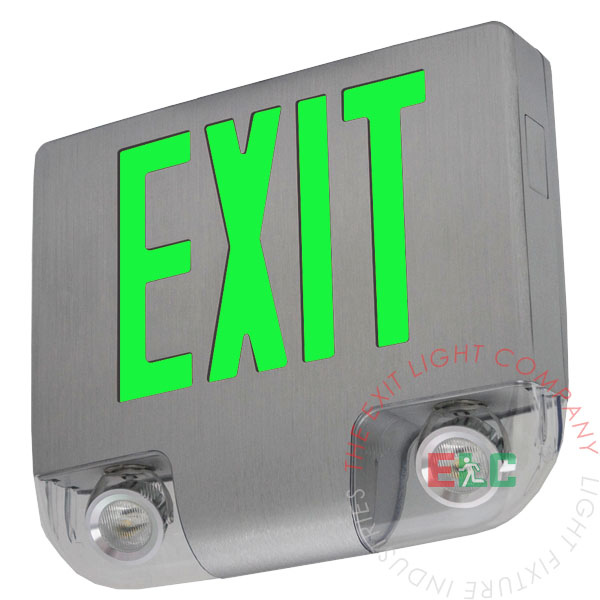

Combo | Cast Aluminum Green [COMBOCA-G]
A beautiful combination of exit sign and emergency lighting, housed in premium grade die cast aluminum. Works on either 120 or 277 VAC. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Faceplate includes knock-out left/right arrows. Can be installed flush (single-sided only), top or side mount.
|Operation Type: Battery Backup|
Unique modern design provides spec-grade EXIT sign with LED lamp heads in one low-profile, premium grade aluminum housing unit.
Uses two 1W high performance premium grade, ultra-bright white LED lamps.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The COMBOCA-G Cast Aluminum Combo Emergency Light is designed with a maintenance-free 8.4V 1700mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Total Luminaire Lumens : 85.7 Per Lamp
At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 16ft for a 3ft path of egress and spaced at 12ft for a 6ft path of egress.
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
The COMBOCA-G is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.
