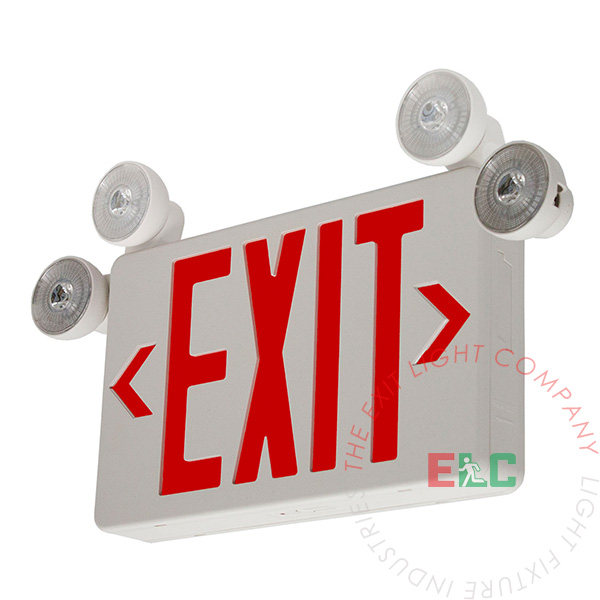

![Combo | C Series Swivel Red | White Housing | Battery Backup [COMBOC-R]](/web/image/product.product/9759/image_1024/%5BCOMBOC-R-W-BB%5D%20Combo%20%7C%20C%20Series%20Swivel%20Red%20%7C%20White%20Housing%20%7C%20Battery%20Backup%20%5BCOMBOC-R%5D%20%28Battery%20Backup%29?unique=25022b5)
![Combo | C Series Swivel Red | White Housing | Battery Backup [COMBOC-R]](/web/image/product.product/9759/image_128/%5BCOMBOC-R-W-BB%5D%20Combo%20%7C%20C%20Series%20Swivel%20Red%20%7C%20White%20Housing%20%7C%20Battery%20Backup%20%5BCOMBOC-R%5D%20%28Battery%20Backup%29?unique=25022b5)
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
- Fully adjustable swivel-mount LED lamp heads each equipped with white LEDs
- Universal mounting canopy for top installation, flush mount to wall, or side mount
- Lightweight with snap-together construction for easy installation
- LED status indicator
- Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
- Push-to-test switch
- Universal transformer for 120 or 277 VAC operation
SPECIFICATIONS
| Dimensions | |
|---|---|
| Height | 7.48" |
| Depth | 1.73" |
| Length | 11.61" |
| Weight | 4.00 lb |
WHAT'S INCLUDED
- RED LED Combo Exit Sign / Emergency Light (Lamp Heads Inside Unit)
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The COMBOC-R series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.
ILLUMINATION
Uses two 1W LED lamp heads. Lamp heads are on track-and-swivel guides. Heads are moveable from side to top of the unit for a wider area of coverage pipe.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The COMBOC Combo Exit Sign series is equipped with a maintenance-free 3.6V 1000mAh (2000mAh for Remote Heada Capable Units) NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (10°C) to 104°F (40°C).
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 32°F to 104°F |
PHOTOMETRICS
Total Luminaire Lumens : 160 Per Lamp
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 16ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
REMOTE HEAD CAPABLE OPTION
The remote head capability option allows the COMBOC unit to supply power to up to two additional 3.6V LED remote heads. The unit can supply power to either 2 single head remote lamps or 1 double head remote lamp. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
ELECTRICAL SPECIFICATIONS
| Series | Input Voltage | Power Consumption | Current | Discharge Duration |
|---|---|---|---|---|
| COMBOC-G | 120/77VAC 60Hz | 3W (120V) / 3.7W (277V) | 32mA (120V) / 20mA (277V) | 90 Minutes |
INSTALLATION
The COMBOC-R is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
