Combo | C Series Swivel Red | White Housing | Battery Backup [COMBOC-R]

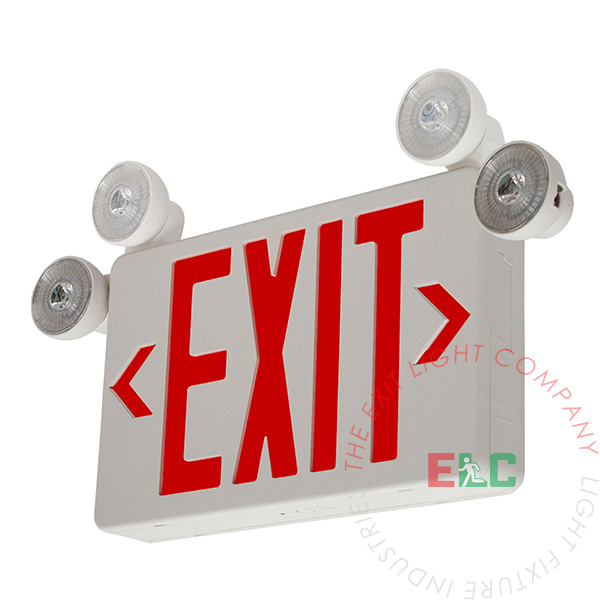

A compact, reliable and secure Exit Sign / Emergency Light Combo. Save money buying this 2-in-1 product. Unit heads are fully adjustable and swivel from top to side mount. Long lasting, low maintenance nickel cadmium battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC. Faceplate includes knock-out left/right directional chevrons. Fixture is single or double sided.
The COMBOC-R series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.
Uses two 1W LED lamp heads. Lamp heads are on track-and-swivel guides. Heads are moveable from side to top of the unit for a wider area of coverage pipe.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The COMBOC-R Combo series is designed with a maintenance-free 3.6V 900mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F (10°C) to 104°F (40°C).
Total Luminaire Lumens : 134.9 Per Lamp
Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 36ft for a 3ft path of egress.
Dual voltage input 120/347 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
The COMBOC-R is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.
