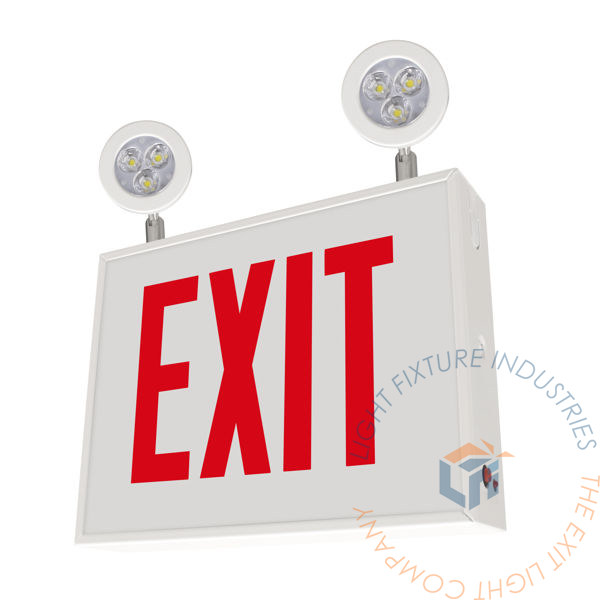

Combo | Chicago Approved Red [CHCO-R]

City of Chicago approved LED Combo Exit sign with steel housing and glass face. Now standard with energy saving LED illumination instead of incandescent lamps.

109.00 109.0 USD 109.00

95.00

  • Operation Type
  • Arrows
  • Sides
  • Signage

This combination does not exist.

Operation Type: Battery Backup

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

City of Chicago Approved
This product is approved for Chicago City.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • City of Chicago approved
  • Now uses LEDs for improved energy efficiency
  • Open-face glass panel, silk-screen letters
  • 20 gauge steel housing with white powder coat finish
  • Mounting Canopy for Side Mount
  • Integrated solid state system, lock out, low voltage battery cutoff, dual voltage 120/277


SPECIFICATIONS

Dimensions
Height 16.1"
Depth 3"
Length 10.9"
Weight 10.00 lb

WHAT'S INCLUDED

  • RED LED Combo Exit Sign
  • One "EXIT" Faceplate
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The CHCO-R series is contructed from durable 20-gauge steel with a white finish. Features a heat-tampered, impact-resistant glass lens.

ILLUMINATION

The CHCO-R Combo Exit Sign offers two adjustable metal lamp LED heads: 3.6VDC 1.8W(2).

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The CHCO-R series is designed with a maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
Battery Backup10°C to 40°C / 50°F to 104°F


ELECTRICAL COMPONENTS

Univeral input 100-300 VAC 50HZ operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit.

INSTALLATION

The CHCO-R Combo Exit Sign is suitable for wall and side mount via steel mounting canopy.

Mounting Configurations Explained

DIMENSIONS
