This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA, NFPA 101 Life Safety Code, and Listed for Wet Locations
- DOE Registered (US Department of Energy)
- Certified to CEC under Title 20 Regulations
- Round LED Lamps
- Maintenance free NiCad battery (Included)
- Fixture can be single or double sided
- Ultra bright LEDs
- Push-to-test switch
- 120 or 277 VAC operation
- Extremely low operating costs
- Removable directional indicators
- 5VA Flame retardant, UV stabilized polycarbonate enclosure
- Optional 3.6V Remote Head Option (Supports two single or one double head)
Compatible Battery: BAA-3618
Compatible Remote Head(s): RHB-WPL1, RHB-WPL2, RHB-L1
To use with with remote heads, please change the Operation Type above to Battery Remote Head Capable (3.6V) to ensure compatibility. Code at time of checkout must read: WLTCOMBO-R-W-RH.
SPECIFICATIONS
| Dimensions (May Vary by Model) | |
|---|---|
| Height | 13.5" |
| Depth | 2.5" |
| Length | 12.5" |
| Weight | 10.00 lb |
WHAT'S INCLUDED

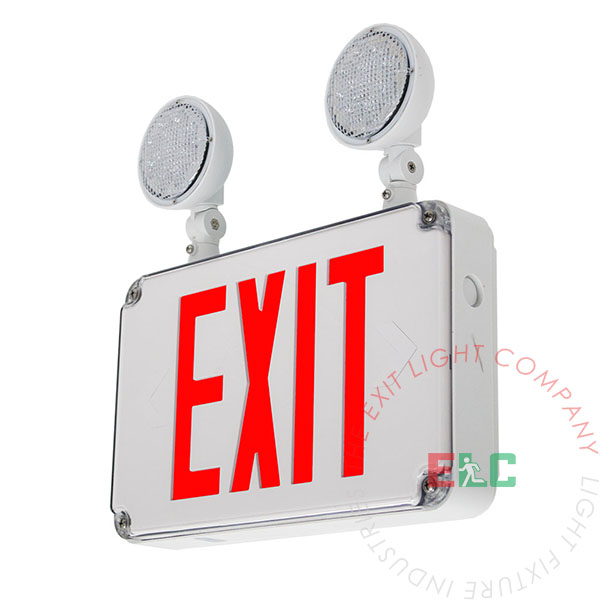

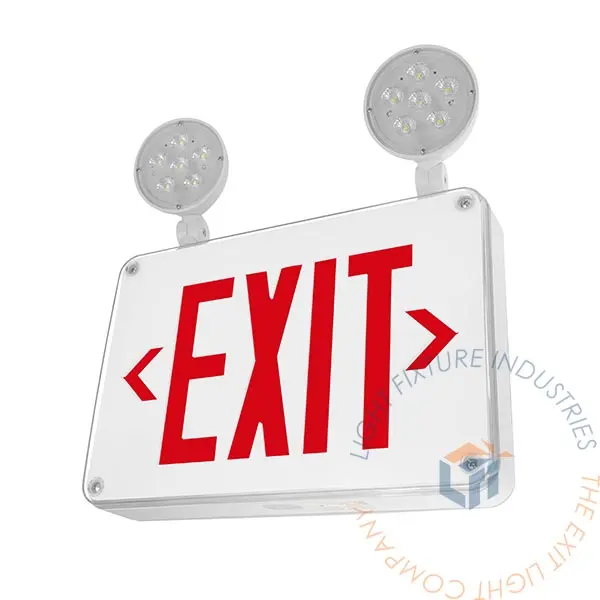

- RED LED Outdoor Combo Exit Sign / Emergency Light
- Two "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The WLTCOMBO series is constructed of 5VA flame retardant, UV stabilized polycarbonate housing. High impact, UV stabilized polycarbonate lens included, some discoloration may occur over time if installed in direct sunlight. Fully gasketed with engineering grade silicone.
ILLUMINATION
The WLTCOMBO series uses ultra bright, energy efficient red or green LEDs. Features 2 fully adjustable LED lamp heads.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP

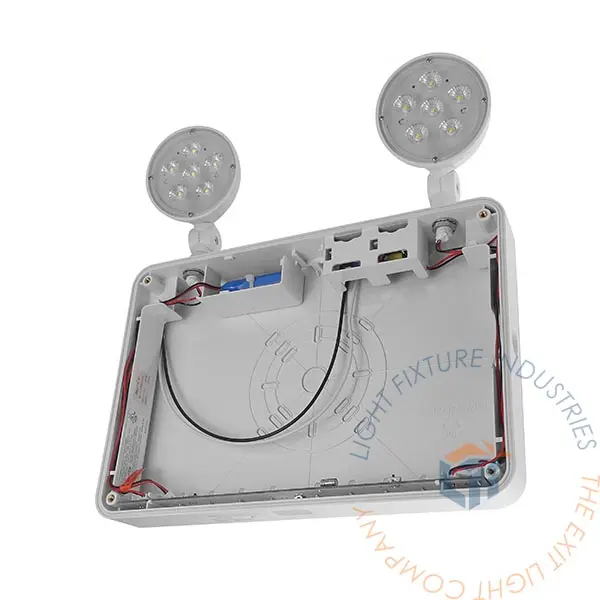

The WLTCOMBO series is designed with a maintenance-free battery system that provides a minimum emergency duration of 90 minutes. The Battery Backup model uses a 3.6V Nickel Metal Hydride (NiMH) battery, while the Remote Head Capable model uses a 3.6V Nickel Cadmium (NiCad) battery. Both battery types feature a 24-hour recharge time and are protected by a low voltage cut-off circuit to prevent deep discharge and prolong battery life.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 50°F to 104°F |
| Expanded Temperature | -4°F to 122°F |
PHOTOMETRICS
Total Luminaire Lumens : 170lm
Input Wattage: 2.33W
Input Voltage: 3.6V
Amps: .646
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 22ft for a 3ft path of egress.
Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 6ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
REMOTE HEAD CAPABLE OPTION
The remote head capability option allows the WLTCOMBO unit to supply power to up to two single or one double 3.6V LED remote heads. The remote heads would then operate on the same emergency mode as the standard units. This unit only supports LED remote heads.
ELECTRICAL COMPONENTS

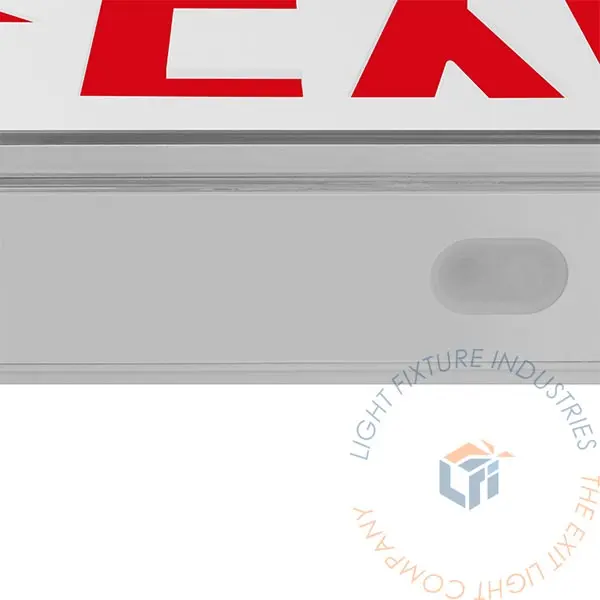

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
ELECTRICAL SPECIFICATIONS
| Series | Input Voltage | Power Consumption | Current | Discharge Duration |
|---|---|---|---|---|
| WLTCOMBO-R-BB/RH | 120/277VAC 60Hz | 4.32W (120V) / 4.57W (277V) | 37.7mA (120V) / 17.2mA (277V) | 90 Minutes |
| WLTCOMBO-R-BB-CW | 120/277VAC 60Hz | 4.38W | 36mA (120V) / 18mA (277V) | 90 Minutes |
INSTALLATION

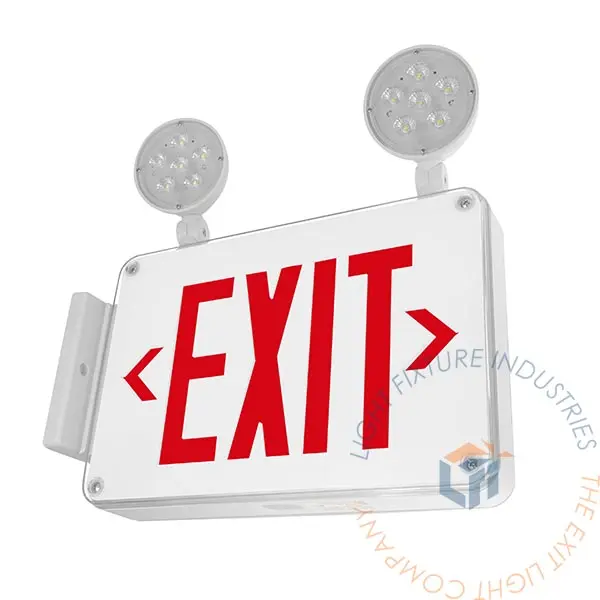

The WLTCOMBO combination unit is suitable for surface wall and end mounting. Suitable for indoor and wet location installations.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
