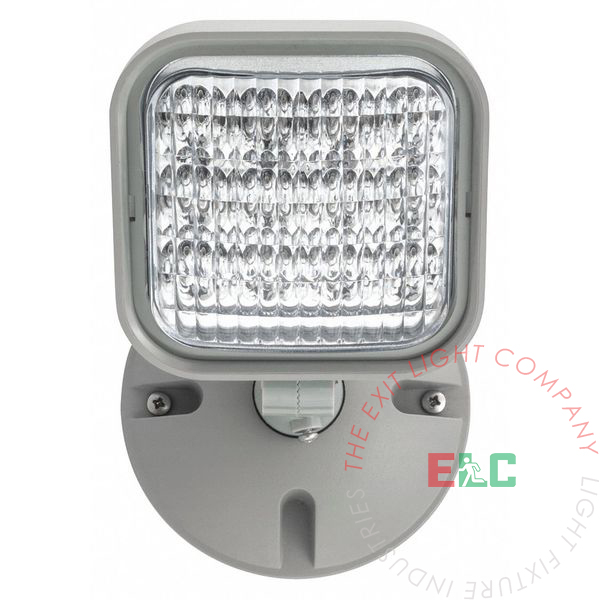

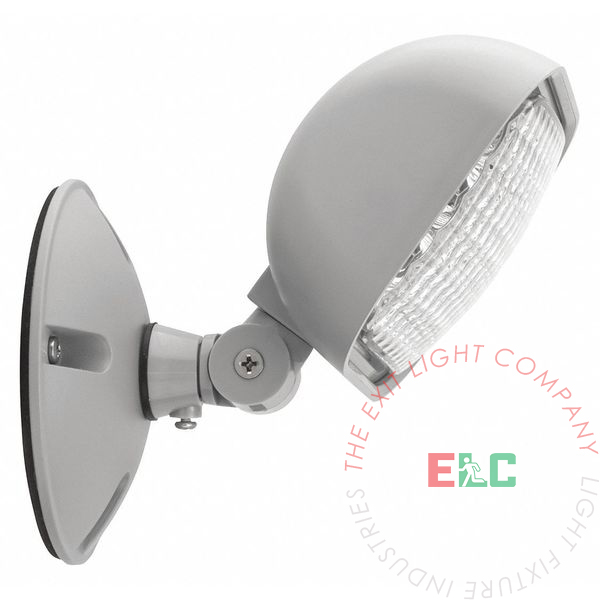

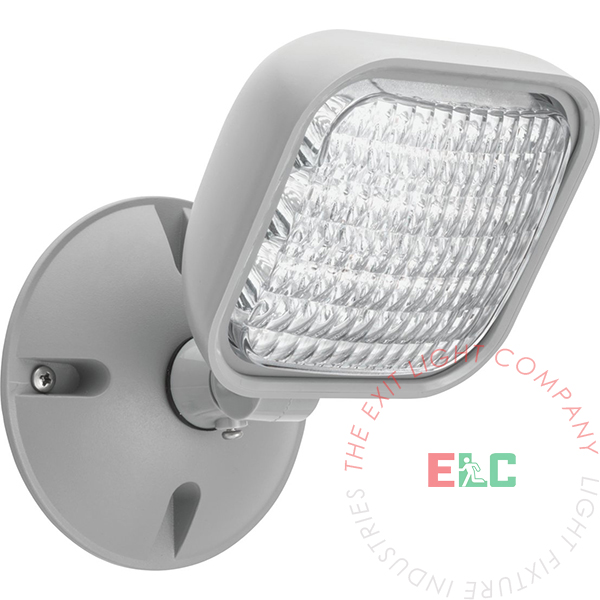

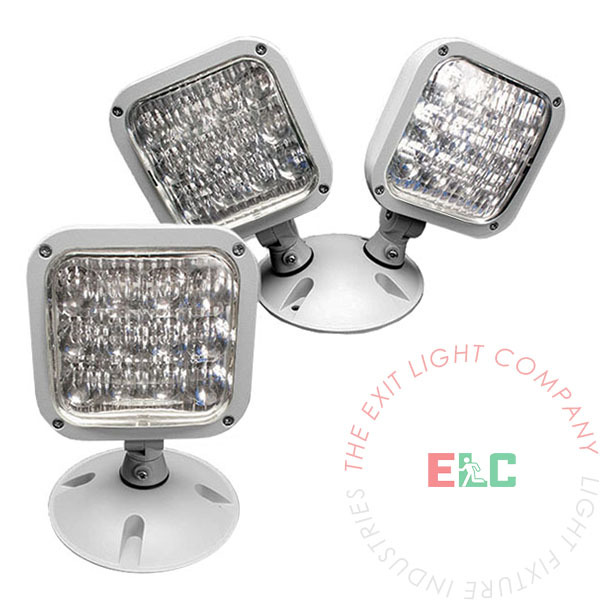

Accessory | Remote Head | Gray Aluminum | Square Head Wet Location Rated [RHB-SWP]

Easily increase available emergency light by attaching this remote lamp head to your existing remote head capable emergency light.

30.00 30.0 USD 30.00

30.00

  • Heads

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:

LED Lighting

This unit uses energy efficient and long lasting LED's.

FEATURES

  • Meets UL 924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
  • Adjustable 8 LED lamp head
  • Multi-Volt: 3/6/9/12V
  • Constructed from premium grade die-cast aluminum
  • Adjustable lamp head(s)
  • For use with any remote head capable emergency light or exit sign with matching voltage

Compatible Units (Battery Backup + Remote Head Capable Option Must be Selected)

Emergency Light(s): EL-2, EL-M2, and EL-LWET

Combo Exit Sign(s): COMBO2, COMBOJR2,  and COMBOLP
and COMBOLG

Exit Sign(s): LEDJR


SPECIFICATIONS

Dimensions
Height 6.62"
Depth 4.25"
Length 10.37"
Weight 4.00 lb

WHAT'S INCLUDED

  • Single or Double Lamp LED Remote Head
  • Weatherproof Gasket
  • Mounting Hardware


CONSTRUCTION

The RHB-SWP remote head series is constructed from premim grade die-cast aluminum. Housing is sealed and gasketed

ILLUMINATION

The RHB-SWP remote head series has long lasting, efficent, and ultra bright LED's with a chrome-plated metallized reflector and lens for optimal light distribution.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option-22°F to 122°F


ELECTRICAL COMPONENTS

Powered from low voltage power source with low voltage wiring (not provided).

INSTALLATION

The RHB-SWP LED Remote Head includes a universal mounting base plate with mounting hardware. The distance of maximum run is determined by system voltage, wire gauge and total maximum wattage on the run. Suitable for wall or ceiling mount.

Mounting Configurations Explained

DIMENSIONS
