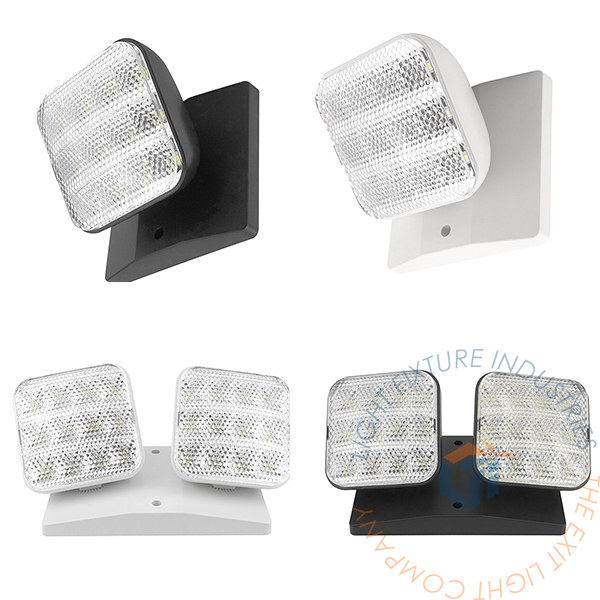

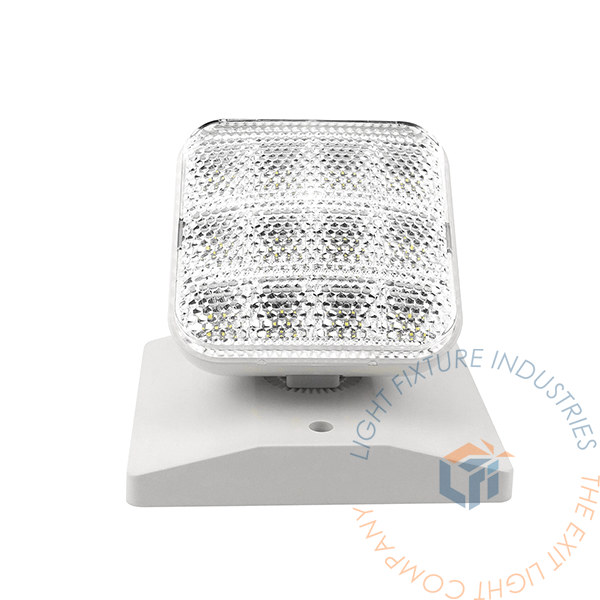

Accessory | Remote Head | Square Head [RHB-L]

Keep the energy savings coming! By using LED remote heads with your remote capable LED emergency light, you not only lower the cost of operating 2 units, you also lower the cost versus standard incandescent units.

10.00 10.0 USD 10.00

10.00

  • Heads
  • Voltage
  • Self Testing Compatible

This combination does not exist.

Voltage: MV 3/6/9V
Self Testing Compatible: No Self Testing Compatible

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Light Bulb(s) Included
This unit includes light bulb(s).

FEATURES

  • Adjustable 12 LED lamp head
  • Constructed of VO flame retardant, high impact thermoplastic housing
  • For use with any remote head capable emergency light or exit sign with matching voltage

Previous Product Codes: RHB-L1 and RHB-L2

Compatible Units (Battery Backup + Remote Head Capable Option Must be Selected)

Emergency Light(s): EL-2, EL-M2, and EL-LWET

Combo Exit Sign(s): COMBO2, COMBOJR2, and COMBOLP
and COMBOLG

Exit Sign(s): LEDJR


SPECIFICATIONS

Dimensions
Width 4.5"
Height 4.875"
Length 5.875"
Weight 2.00 lb

WHAT'S INCLUDED

  • Single or Double Lamp LED Remote Head
  • Mounting Hardware


CONSTRUCTION

The RHB-L remote head is constructed from injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic white finish.

ILLUMINATION

Smooth thermoplastic reflector with plastic lens for optimal light distribution. Adjustable lamp head with 12 LED's that provides increased center-to-center spacing.


ELECTRICAL COMPONENTS

Powered from low voltage power source with low voltage wiring (not provided).

INSTALLATION

The RHB-L LED Remote Head includes a universal mounting base plate with mounting hardware. The distance of maximum run is determined by system voltage, wire gauge and total maximum wattage on the run. Suitable for wall or ceiling mount

Mounting Configurations Explained

DIMENSIONS
