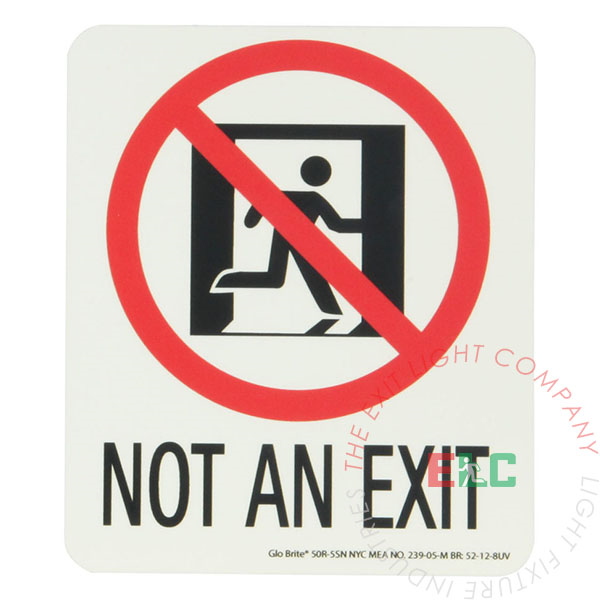

Marker | Photoluminescent | 'Not An Exit' [PNE-D]

A simple way to add additional emergency egress signage. Identifies emergency evacuation route.
No electricity or battery required. These signs can be easily placed on any flat surface using double-sided tape. Under normal lighting conditions, these signs are highly visible. In the event of low (or absence of) lighting due to power failure the signs will "glow-in-the-dark." (Signs must be "charged" to glow, requires exposure to 54 LUX (5-ft candles) of fluorescent, metal halide or mercury vapor light illumination).

34.00 34.0 USD 34.00

34.00

    This combination does not exist.


    Download Spec-Sheet:
    Installation Instructions:

    ADA Compliant
    This product is compliant with the Americans with Disabilities Act.
    Photoluminescent
    This unit uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology.
    Made in the USA
    This unit is made in the United States.

    FEATURES

    • Meets New York City Building Code Reference Standard RS 6-1 & 6-1A and Local Law 26
    • Meets UL 1994
    • Emergency Egress/Safety Sign
    • Explosion proof semi-rigid plastic
    • No power or wiring required
    • Requires continued exposure to at least 54 LUX illumination
    • Indoor use only


    SPECIFICATIONS

    Dimensions
    Width 5.5"
    Height 6.5"
    Depth 0.0625"
    Weight 2.00 lb


    CONSTRUCTION

    This photoluminescent Egress Sign is constructed with non-toxic, non-radioactive Glo Brite ® photoluminescence technology.

    ILLUMINATION

    Under normal lighting conditions, these signs are highly visible. In the event of low or no lighting due to power failure, the lettering on the signs will "Glow in the Dark". (Signs must be "charged" to glow -- requires 54 LUX (5ft candles) of LED, fluorescent, metal halide or mercury vapor light illumination for 60 minutes).

    EMERGENCY OPERATION

    Upon failure of the normal utility power, this unit will provide at least 90 minutes of illumination. *This sign must be charged for a minimum of 60 minutes prior to being fully operational.


    ELECTRICAL COMPONENTS

    The PNE-D sign does not require any type of electrical components.

    INSTALLATION

    No electricity or battery required. These signs can be easily installed using one of the four following methods (Instructions Provided):

    1) Peel and Stick

    2) Foam Tape

    3) Mechanically Fasten

    4) Construction Adhesive

    Mounting Configurations Explained

    View Installation Instructions
