  3. Exit Sign | Photoluminescent | Plastic | UL Listed [PA1]
Public Pricelist

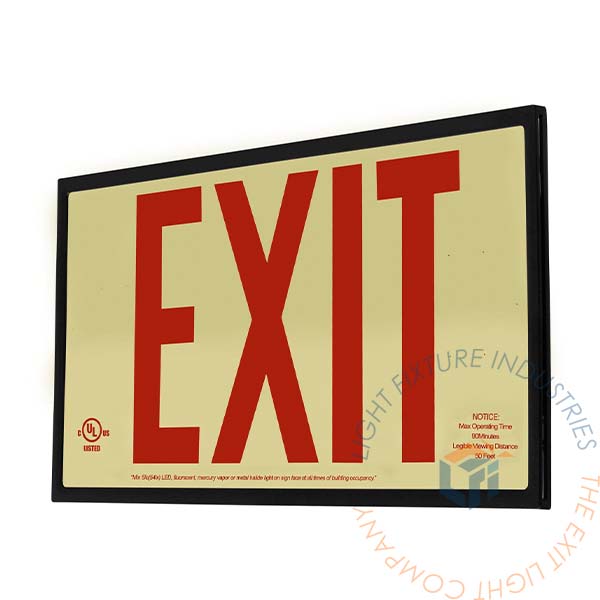

Exit Sign | Photoluminescent | Plastic | UL Listed [PA1]

https://www.lightfixtureindustries.com/web/image/product.template/1310/image_1920?unique=346b4c9
The PA1 exit sign, certified by UL, guarantees a minimum glow duration of 90 minutes and visibility up to 50 feet without the need for electricity, wiring, or batteries. To charge its photoluminescent material, it requires an exposure to 54 LUX (equivalent to 5-foot candles) of light from sources such as LED, fluorescent, metal halide, or mercury vapor lamps for a period of 60 minutes. Designed for indoor and outdoor areas.

$ 50.00 50.0 USD $ 50.00

Not Available For Sale

  • Letter Color
  • Viewing Distance

This combination does not exist.

Contact Us
Viewing Distance: 50'

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Photoluminescent
This product uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology. ​
 No Electricity

This unit doesn't require electricity or a battery.

FEATURES

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Listed for Wet Locations
  • No electricity, no batteries required
  • Life Expectancy 20 years
  • Operating Temperature -4°F – 122°F
  • Field installable arrow configuration
  • 50 foot viewing distance
  • 90 minutes of illumination
  • Requires 54 LUX (5-ft candles) of LED, fluorescent, metal halide or mercury vapor light to charge material for 60 minutes
  • Indoor/Outdoor installation
  • No future hazmat disposal needed

Previous Product Codes:  PAJ

SPECIFICATIONS

Dimensions (May Vary by Model)
Width 15.5"
Height 8.6"
Depth .38"
Weight 4.00 lb

WHAT'S INCLUDED

  • Single Sided RED or GREEN Photoluminescent Exit Sign
  • Two optional adhesive arrows
  • Black Frame
  • Installation Instructions

CONSTRUCTION

The PA1 Series Exit Sign has a thin, low profile construction with 50' visibility. It has a durable plastic photoluminescent panel with a black plastic frame. This photoluminescent exit sign is explosion-proof for areas requiring explosion-proof exit signage.

ILLUMINATION

The PA1 Series Exit Sign has a viewing visibility of 50'. Provides consistent, uniform illumination.

EMERGENCY OPERATION

Upon failure of the normal utility power the PA1 exit sign will provide at least 90 minutes of illumination.

Charging this glow in the dark exit sign requires 54 LUX (5-ft candles) of LED, fluorescent, metal halide, or mercury vapor light for 60 minutes.

*The sign must be charged for a minimum of 60 minutes to become fully operational.

BATTERY - BATTERY BACKUP

The PA1 Series Exit Sign does not require a battery to operate.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option
-4°F to 122°F

ELECTRICAL COMPONENTS

The PA1 Series Exit Sign does not use nor require any type of electrical components.

INSTALLATION

The PA1 Series Exit Sign is designed for wall mount application. The black frame features holes in each corner for easy installation. For signs without a frame, double-sided tape (tape not provided) can be used for mounting. It also comes with two self-adhesive arrows for easy customization. This sign is suitable for both indoor and outdoor installations. However, prolonged exposure to direct sunlight in outdoor settings may lead to some discoloration, particularly in signs with plastic components. The photoluminescence of the lettering itself is not expected to be significantly affected by sunlight exposure.

   Mounting Configurations Explained

   View Installation Instructions


DIMENSIONS
