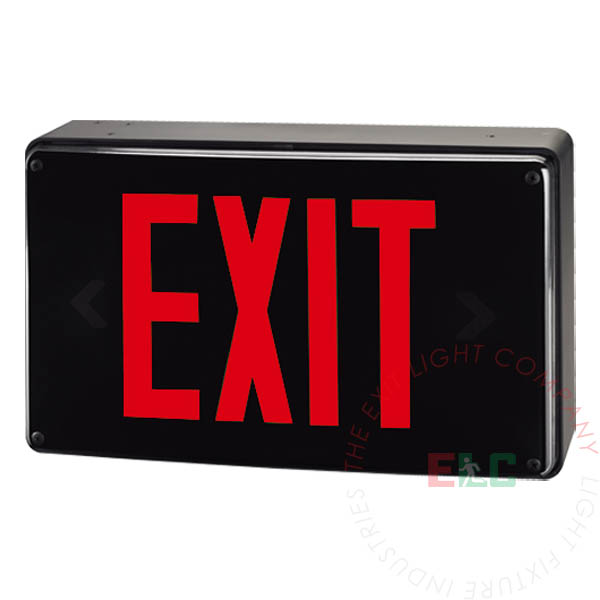

Exit Sign | VR Series Vandal Resistant Red [LEDVR-R]

Vandal resistant exit sign is designed to stand up to high abuse areas such as correctional facilities, schools, apartment complexes, and public areas that may be subject to vandalism. The extreme duty, heavy gauge, die cast aluminum housing and high abuse polycarbonate faceplate offer the ultimate protection and performance.

362.00 362.0 USD 362.00

280.00

  • Housing Color
  • Operation Type
  • Sides
  • Temp Rating
  • Alarm
  • Fire Alarm Interface

This combination does not exist.


Download Spec-Sheet:

CSA Certified
Indicates that the product was tested and has met the certification requirements.
LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • CSA listed to UL924 standards, IP66 & Title 20
  • Listed for wet and hose-down location
  • Since this item is made to order, please expect a 6 week lead time
  • Sealed nickel-cadmium battery: Provides a minimum of 90-minutes emergency operation
  • 120/277/347 VDC input
  • Constructed from .420 thick, heavy duty-cast aluminum
  • High abuse clear polycarbonate shield
  • Field selectable chevrons
  • Standard operating temperature: 32°F to 113°F (0°C to 45°C)
  • Optional Expanded Temperature Rating: -40°F to 113°F (-40°C to 45°C)
  • Allows for wall/flush, ceiling, and flagpole/end installation


SPECIFICATIONS

Dimensions
Height 14"
Depth 9"
Length 4"
Weight 12.00 lb

WHAT'S INCLUDED

  • RED LED Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Second "EXIT" Faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The ultra heavy duty design and appearance of the LEDVR series exit warns potential vandals that this is no regular sign. The stencil is protected by a 1/8” thick, impact resistant polycarbonate shield that is recessed into the housing and fastened with 4 tamper resistant screws. Polycarbonate lens is UV stabilized but some discoloration may occur over time if installed in direct sunlight. The LEDVR offers a contemporary look and durability like no other.

ILLUMINATION

The LEDVR series uses ultra bright, energy efficient red or green LEDs.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The LEDVR series is designed with a maintenance-free, sealed Nickel-Cadmium battery providing a minimum emergency duration of 90 minutes.  The battery operating temperature without the internal heater option is 32°F to 113°F; with the internal heater (IH) option the minimum battery operating temperature is -40°F to 113°F.

OPERATIONAL TEMPERATURE

Temperature Ratings
SeriesTemperature
Standard Option0°C to 45°C / 32°F to 113°F
Expanded Temperature Rating-40°C to 45°C / -40°F to 113°F

ELECTRICAL COMPONENTS

The LEDVR has a 120/277V input. Solid state charger, auto-test, and transfer are standard on self powered units. The self powered version comes standard with an external LED status indicator and test switch.

INSTALLATION

The LEDVR is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-outs provided for conduit feed applications.  Perforated chevron arrows allow for on-site setup.

Mounting Configurations Explained

DIMENSIONS
