This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL and cUL Listed
- Rated for Damp Locations
- Injection-molded, high-impact, UL94 V-0 thermoplastic construction
- 120-277 VAC operation

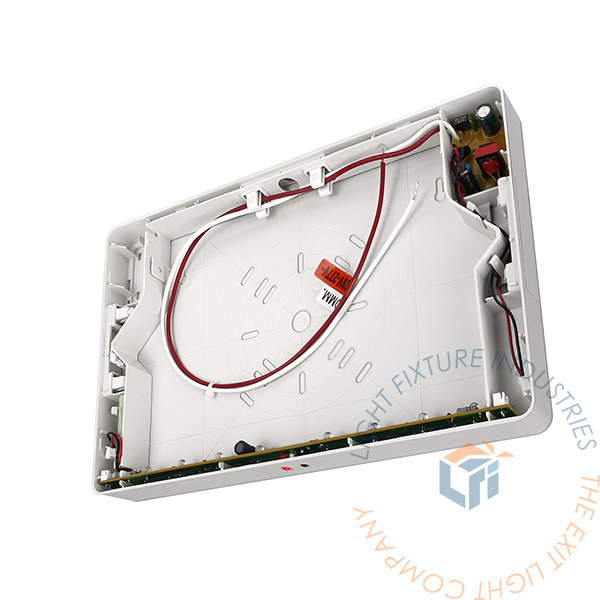

- Universal mounting pattern knock-out in back plate for J-box mounting

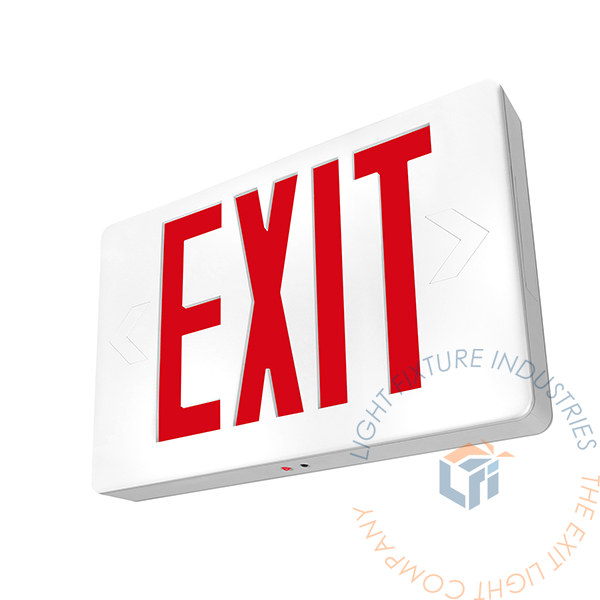

- Knock-out left/right arrows
- Test switch and charge indicator
- Innovative and easy installation in minutes
Compatible Battery: BAA-12
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 11.96" |
| Height |
7.59" |
| Depth |
1.02" |
| Weight | 5.00 lb |
WHAT'S INCLUDED
- Thin Red LED Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- Battery (Inside Unit) - Must connect the battery after installation
CONSTRUCTION
The LEDT series is constructed from injection-molded, high-impact, engineering-grade, UV-stabilized, UL 94 V-0 thermoplastic. White housing is standard.
ILLUMINATION
Long-Lasting, efficient Red LEDs.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
BATTERY - BATTERY BACKUP
The LEDT Thin Exit Sign series is designed with a maintenance-free 1.2V 1000mAh NiMH battery that provides an emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 0°C to 40°C / 32°F to 104°F |
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
ELECTRICAL SPECIFICATIONS
| Series | Input Voltage | Power Consumption | Current | Discharge Duration |
|---|---|---|---|---|
| LEDT | 120-277VAC 60Hz | 1.6W | 20mA | 90 Minutes |
INSTALLATION

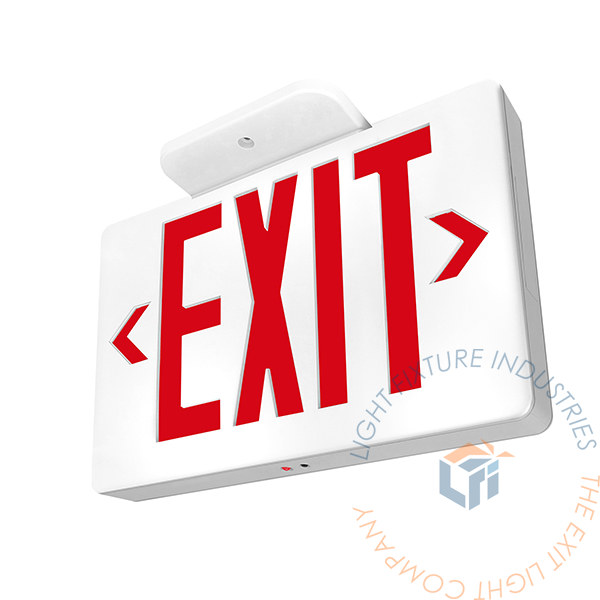

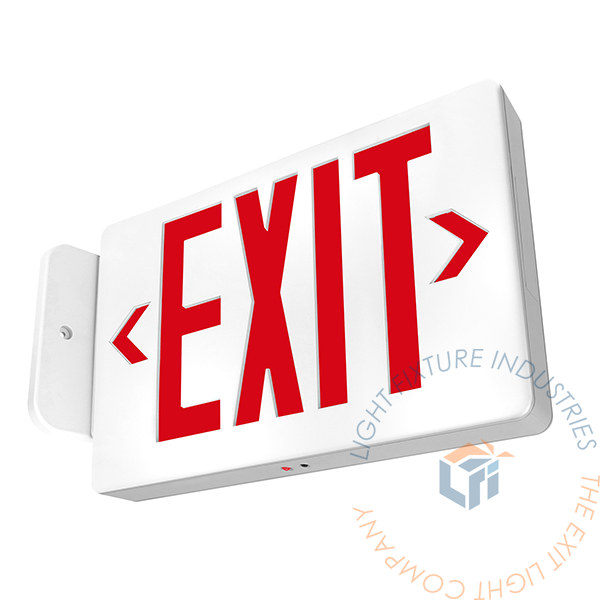

The LEDT is suitable for surface wall, side, and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage. The LEDT exit sign can be installed in damp location areas.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
