Exit Sign | JR Series Red [LEDJR-R]

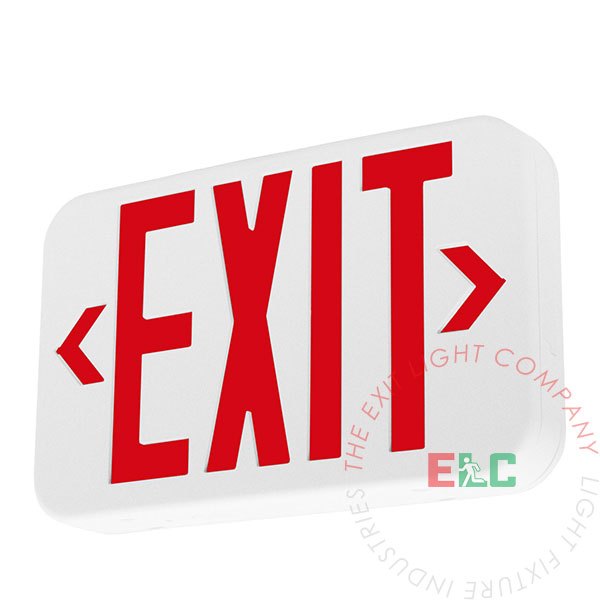

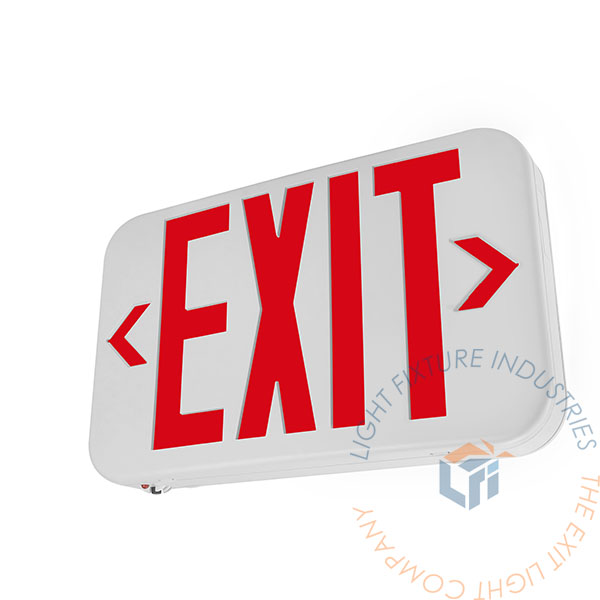

A modern, energy effecient UL Listed LED Exit Sign with standard Red LED letters. This unit works on either a 120 or 277 VAC and includes a backup battery providing up to 90 minutes of power during an emergency.

A left and right arrow can be knocked out from the faceplate to point to the exit direction. A universal mounting bracket allows for easy mounting from the top or sides. This exit sign is pre-assembled and shipped single sided with an additional EXIT faceplate included in the box for optional manual assembly.

Compatible Battery:
Battery Backup: BAA-12
Remote Head Capable: BAA-3618 (White Housing ONLY)

20.00 20.0 USD 20.00

20.00

  • Housing Color
  • Operation Type

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:
Download MSDS:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

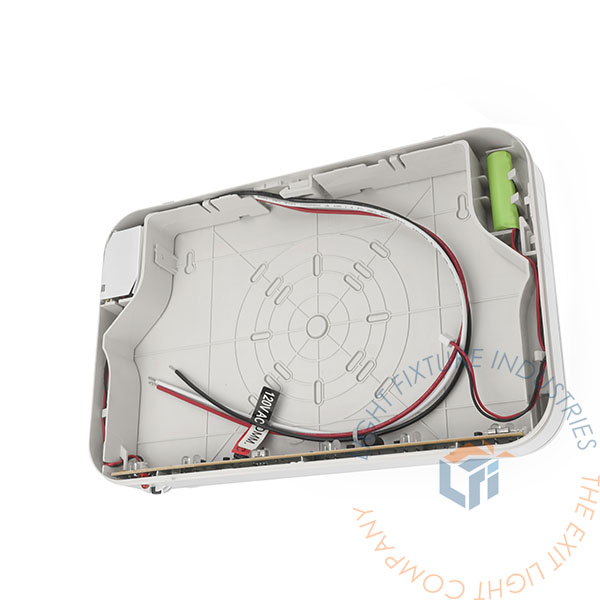

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Listed for damp location
  • Push-to-test switch
  • 120 or 277 VAC operation
  • Injection-molded, VO flame retardant, high impact housing
  • Charge rate / power on LED indicator light
  • Universal mounting canopy for top or side installation

Previous Product Codes: LEDRBB-JR, LEDRBB-JR-RH, LEDR-JR


SPECIFICATIONS

Dimensions
Width 11.6"
Height 7.2"
Depth 2"
Weight 5.00 lb

WHAT'S INCLUDED

  • RED LED Exit Sign
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The LEDJR-R Exit Sign is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing. White and Black housing options are available.

ILLUMINATION

The LEDJR-R Exit Sign illumination is achieved by use long-lasting, efficient ultra bright red LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours

BATTERY - BATTERY BACKUP

The LEDJR-R Exit Sign is designed with a maintenance-free 1.2V 1000mAh NiCad battery (Battery Backup Models) or a 3.6V 1800mAh battery (Remote Head Capable Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
Battery Backup + Remote Head Capable20°C to 30°C / 68°F to 86°F
Battery Backup0°C to 0°C / 32°F to 104°F

REMOTE HEAD CAPABLE OPTION

The remote head capability option allows the LED unit to supply power to up to two additional 3.6V remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section). If no remote heads are attached to the exit sign, the battery run-time is approximately 180 minutes.

ELECTRICAL COMPONENTS

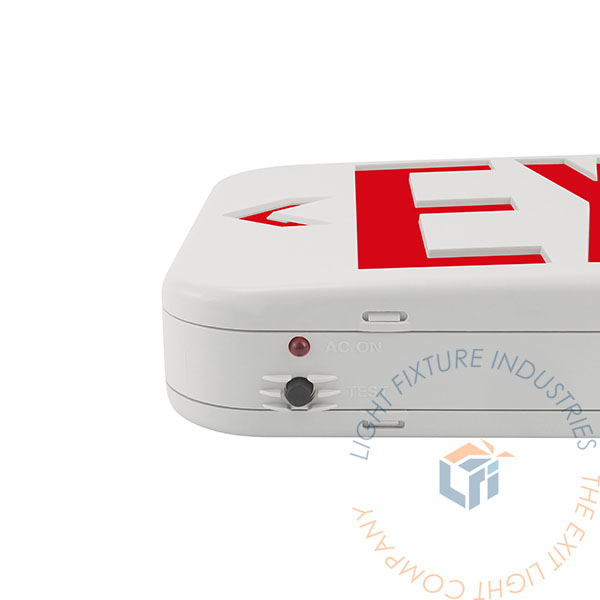

Dual voltage input 120/277 VAC operation.  LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

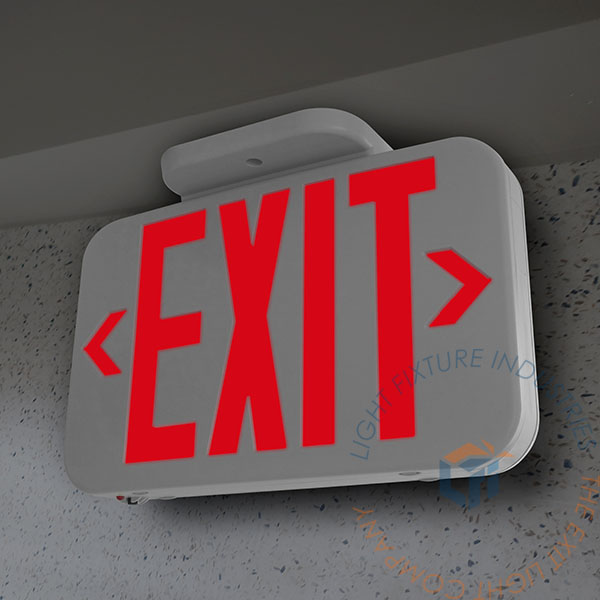

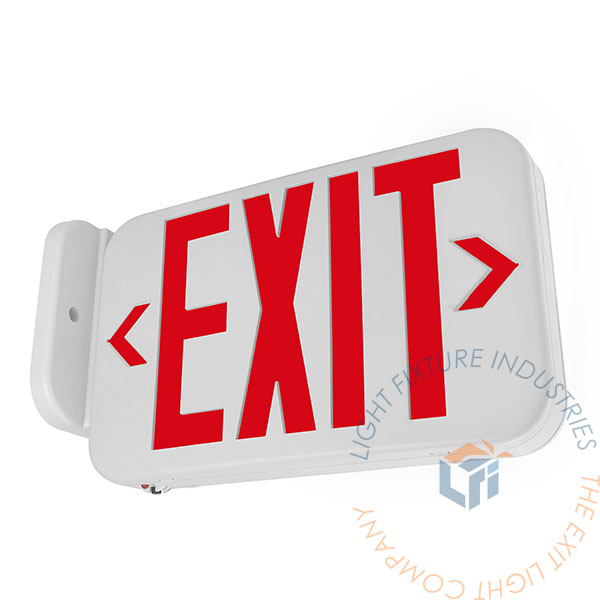

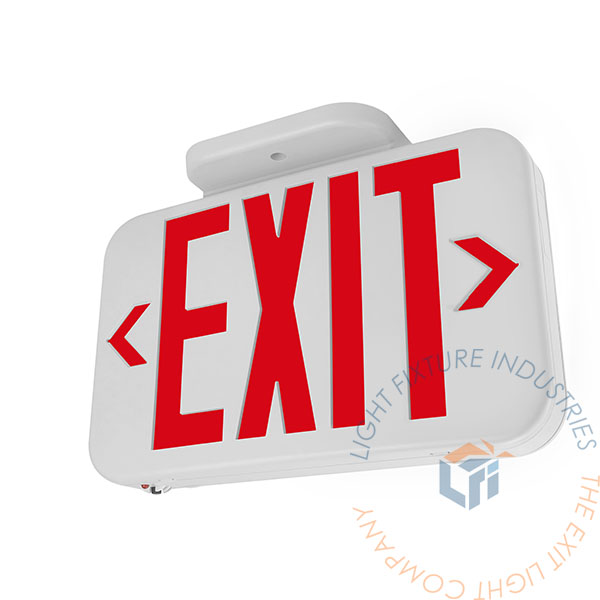

The LEDJR-R Exit Sign is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
