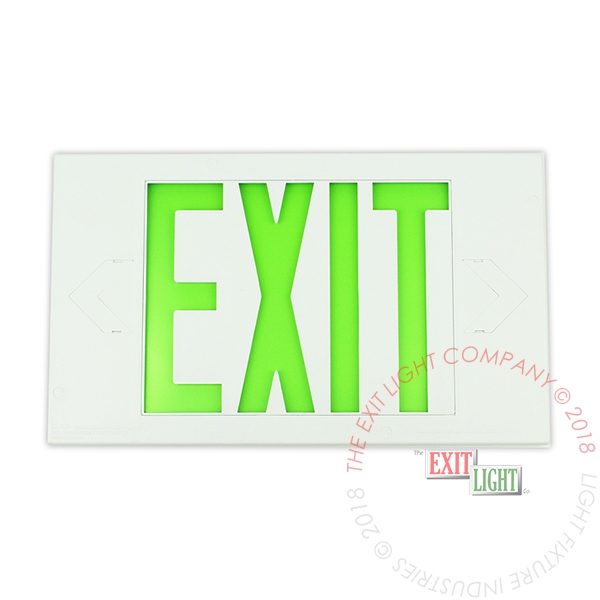

Exit Sign | Electroluminescent Green [LEC-G]

Our most energy efficient powered exit sign, this electroluminescent exit sign delivers bright, even illumination at 1/5 the watt energy of even LED. Impact and scratch resistant polycarbonate/ABS housing, 120/277 VAC operation mounting canopy included for top, side or back mounting.

217.00 217.0 USD 217.00

217.00

  • Housing Color
  • Operation Type
  • Sides

This combination does not exist.


Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Electroluminescent
The most energy efficient lighting source requiring a power supply.
Made in the USA
This unit is made in the United States.

FEATURES

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Made in USA
  • Electroluminescent powered
  • Less than 1/5 watts energy draw
  • 120/277 VAC operation
  • Universal mounting canopy included
  • Knock-out left/right arrows
  • Impact and scratch resistant polycarbonate/ABS housing
  • Voltage surge protected

Previous Product Codes: LEC-W, LEC-B


SPECIFICATIONS

Dimensions
Width 12.875"
Height 7.625"
Depth .625"
Weight 4.00 lb

WHAT'S INCLUDED

  • One LEC Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The LEC-G LEC sign is constructed from an impact and scratch resistant polycarbonate/ABS blend. Housing is UV stable and flame retardant. White housing is standard, black housing available.

ILLUMINATION

Electroluminescent exit signs are powered by electroluminescence using LECs (light emitting capacitors) and “smart” driver technologies. The lamps themselves are less than half the thickness of a credit card contributing to the ultra-thin design of the sign. See page 1 for additional info on LEC technology.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 120 minutes. Recharging a discharged battery happens within 24 hours.

BATTERY - BATTERY BACKUP

The LEC-G Electroluminescent Exit Sign is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 120 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 65°F (18°C) to 85°F (30°C).


ELECTRICAL COMPONENTS

Dual voltage 120/277 input operation. For battery backup units, a LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine operational status.

INSTALLATION

The LEC-G is suitable for surface wall, side and top mounting via included canopy. Knock-out chevrons for customized egress signage.

Mounting Configurations Explained

DIMENSIONS
