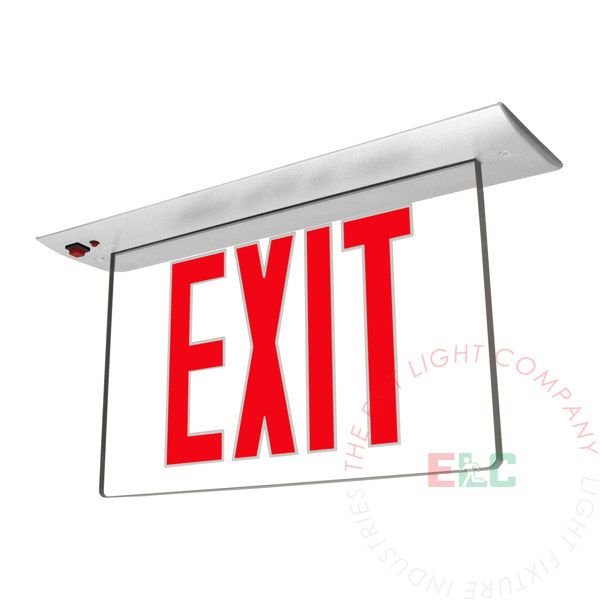

Exit Sign | Edge Lit Recessed Series Red LED [ELR-R]

This Red LED Edge Lit Exit Sign is suitable for almost any mounting configuration with its rotatable faceplate. When purchasing this unit, a Recessed Mounting Kit is included which allows you to retrofit the unit to be suitable for recessed ceiling installation (instructions included). The edge lit panel is constructed of high grade acrylic with customizable directional arrows to point towards exit direction. The removable front cover makes installation and maintenance headache-free!
*USA Option: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.

145.00 145.0 USD 145.00

145.00

  • Housing Color
  • Operation Type
  • Assembly
  • Sides
  • Signage

This combination does not exist.

Signage: EXIT

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • Recessed Mounting Only
  • Aluminum housing with high grade acrylic face
  • Field Installable Arrows for Left, Right or Both directions.
  • Long life LED illumination
  • Test switch and charge rate indicator on battery backup models
  • Dual 120/277 volt operation



SPECIFICATIONS

Dimensions
Width 5.44"
Height 10.56"
Length 14.56"
Weight10.00 lb

WHAT'S INCLUDED

  • RED LED Exit Sign
  • "EXIT" Faceplate (with optional adhesive arrows)
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

CONSTRUCTION

The ELR Edge Lit Exit Sign series housing is constructed from premium-grade, extruded aluminum. Easily access the battery and internals with detachable trim piece. Standard housing color is aluminum with other choices available.

ILLUMINATION

The ELR Edge Lit Exit Sign series has ultra bright, energy efficient, and lost lasting LEDs. The UV stabilized ultra clear acrylic edge-lit panel provides consistent and uniform illumination.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The ELR Edge Lit Exit Sign series is designed with a 4.8V maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option32°F to 122°F


SELF-TESTING OPTION

This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.

ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.

INSTALLATION

The ELR Edge Lit Exit Sign series is suitable for ceiling recessed mounting and compatible with drywall or drop ceiling mount installations. Includes field installable directional arrow indicators. All hardware is included.
