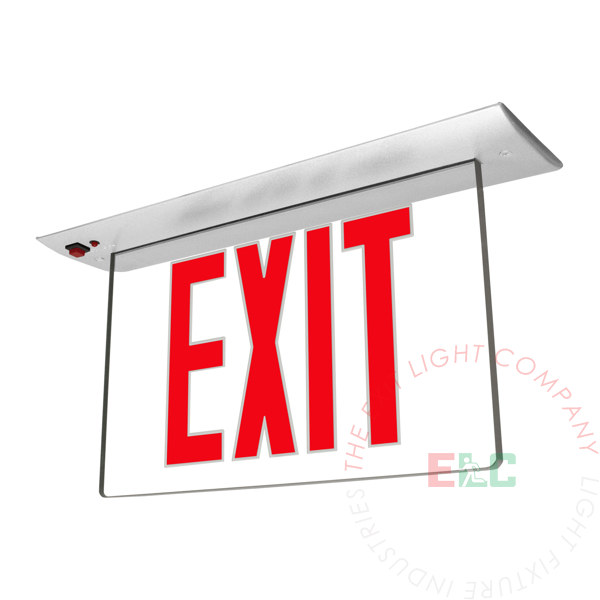

Exit Sign | Edge Lit Recessed Series Red LED [ELR-R]
This Red LED Edge Lit Exit Sign is suitable for almost any mounting configuration with its rotatable faceplate. When purchasing this unit, a Recessed Mounting Kit is included which allows you to retrofit the unit to be suitable for recessed ceiling installation (instructions included). The edge lit panel is constructed of high grade acrylic with customizable directional arrows to point towards exit direction. The removable front cover makes installation and maintenance headache-free!
*USA Option: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Listed for damp location
- Recessed Mounting Only
- Aluminum housing with high grade acrylic face
- Field Installable Arrows for Left, Right or Both directions.
- Long life LED illumination
- Test switch and charge rate indicator on battery backup models
- Dual 120/277 volt operation
- RED LED Exit Sign
- "EXIT" Faceplate (with optional adhesive arrows)
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
The ELR Edge Lit Exit Sign series housing is constructed from premium-grade, extruded aluminum. Easily access the battery and internals with detachable trim piece. Standard housing color is aluminum with other choices available.
The ELR Edge Lit Exit Sign series has ultra bright, energy efficient, and lost lasting LEDs. The UV stabilized ultra clear acrylic edge-lit panel provides consistent and uniform illumination.
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The ELR Edge Lit Exit Sign series is designed with a 4.8V maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.
|Standard Option||32°F to 122°F|
This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.
The ELR Edge Lit Exit Sign series is suitable for ceiling recessed mounting and compatible with drywall or drop ceiling mount installations. Includes field installable directional arrow indicators. All hardware is included.
