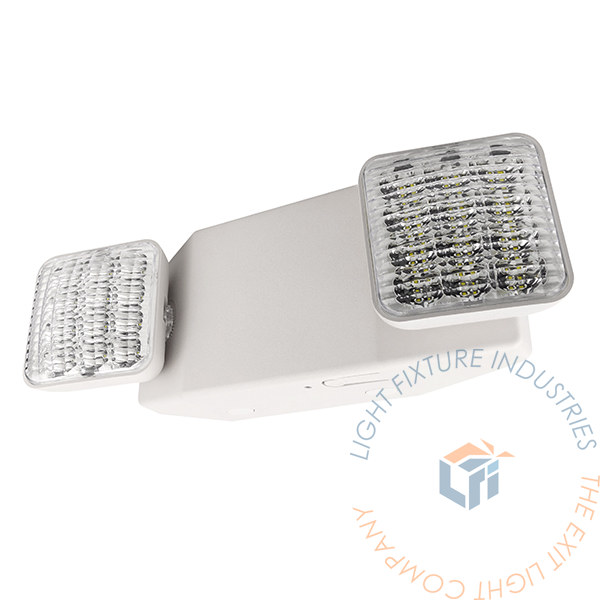

Emergency Light | 2 Series Standard [EL-2]

All LED efficient and secure Emergency Light. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC. Universal mounting plate.

21.00 21.0 USD 21.00

20.00

  • Housing Color
  • Operation Type
  • Certifcations
  • Cord

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:
Download MSDS:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • Two fully adjustable, glare-free LED lighting heads
  • LED indicator light with push-to-test switch
  • Lightweight, injection molded, 5VA flame retardant thermoplastic housing
  • 120/277 VAC operation
  • Universal mounting plate
  • Short circuit, voltage surge, brown out and low battery voltage disconnect protected

Previous Product Codes: EL-2, EL-W2. EL-B2, EL-WST2, EL-BST2, EL-W-RH2, EL-B-RH2

Compatible Battery:  BAA-36900

Compatible Remote Head(s): RHP-L-3V, RHB-WPL-3V, RHB-L-3V


SPECIFICATIONS

Dimensions
Height 4.5"
Depth 3.125"
Length 12.312"
Weight 6.00 lb

WHAT'S INCLUDED

  • White or Black All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

CONSTRUCTION

The EL-2 series is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic. White housing is standard. Also available in black housing.

ILLUMINATION

EL-2 emergency lamps use long-lasting, efficient ultra bright white LEDs. Fully adjustable 1.8W LED lamp heads equipped with 8 series-parallel white LEDs each. Lamp heads are on track-and-swivel arrangement allowing lamp heads to be fully adjustable.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. If remote head capability is used without connecting additional remote heads, the battey can provide a run-time of 180 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-2 Emergency Lights series is designed with a maintenance-free 3.6V 900mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F (10°C) to 104°F (40°C).

PHOTOMETRICS

Total Luminaire Lumens : 80.9 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 3ft path of egress.

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 14ft for a 6ft path of egress.

SELF-TESTING OPTION

Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

REMOTE HEAD CAPABLE OPTION

The remote head capability option allows the EL-2 unit to supply power to up to two additional 3.6V LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry. 220V/50Hz option available as well but only on the standard battery backup model.

INSTALLATION

The EL-2 is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Conduit mount knockout on back plate only.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
