Exit Sign | SM Series Recessed Edge Lit Red [ELSM-R-RM]

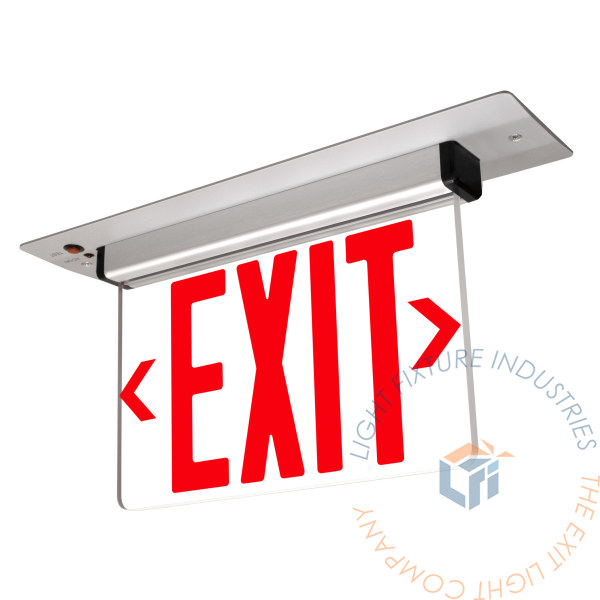

The ELSM-R-RM is an LED Recessed Mount Edge Lit Exit Sign with Red "EXIT" letters suited for any high end design application. The Premium aluminum housing and V stabilized ultra-clear acrylic paneling makes this Red LED letter exit sign architecturally pleasing. Installable press-on directional arrows can be placed to point towards exit direction. Compatible with both sheet-rock and drop ceiling/remodel applications.
The ELSM-RM Edge Lit Exit Sign series is designed with premium-grade, extruded aluminum housing. The trim assembly can easily be detached from below, providing easy and convenient access for service maintenance. Self-adhesive chevrons (arrows) and template guide is provided for arrow installation.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The ELSM-RM Recessed Mount Exit Sign is designed with a 4.8V NiCad maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
|Standard Option||0°C to 50°C / 32°F to 122°F|
This unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the multi-color LED indicator light will indicate the status and adjust when it has been corrected. The self-test feature will automatically perform code compliant testing for five minutes every 28 days and 90 minutes every six months.
Dual voltage input 120/277 VAC operation. 220V/50Hz Special voltage available. LED display indicates AC/ON. An external push button test switch on battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
The ELSM-RM LED Exit Sign allows unit to be ceiling recessed for drop ceiling or new construction application only. Optional field installable directional arrow indicators and all hardware is included.
