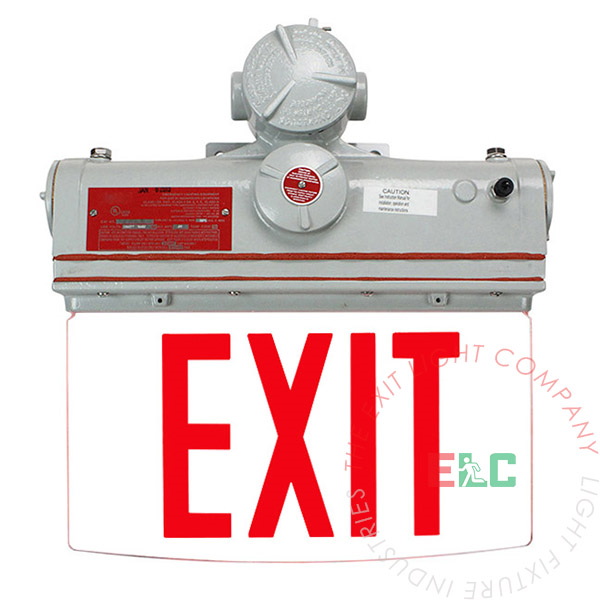

Exit Sign | Hazardous Location C1D1 | Gray Housing [ELSM-C1D1]

Class I, Division 1 Exit Signs are designed for indoors or outdoors where flammable gases or vapors or combustible dusts exist and create a hazardous location, as defined by the NEC.

2,185.00 2185.0 USD 2,185.00


  • Letter Color
  • Operation Type
  • Sides
  • Installation

This combination does not exist.

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 1598A, 844, 924. IP 65, marine outside type
  • NFPA 70 and NFPA 101 Compliant
  • Class 1 Div 1 Groups C & D, Class 1 Div 2 A, B, C, D
  • 120/277 VAC dual voltage
  • Pendant ceiling mount
  • Copper-free cast aluminum housing with baked on epoxy powder finish with 1/2" NPT conduit hubs
  • UL Wet location listed (Indoor & Outdoor)
  • Minimum start 0°C temperature
  • LED Charging indicator light visible through lens


Width 14.88"
Height 16"
Depth 3.69"
Weight 20.00 lb


  • RED or GREEN LED Exit Sign
  • Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
  • Mirrored Double Sided "EXIT" Faceplate (extra cost)
  • Installation Instructions & Hardware
  • Wall Mount or End Mount Bracket
  • NiCad Battery - Must connect the battery after installation


The ELSM-C1D1 series light is constructed from A356T6 aluminum with baked-on gray epoxy finish.


Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 3 hours.


The ELSM-C1D1 Exit Sign is designed with a maintenance-free battery that provides a minimum emergency duration of 3 hours. Recharge time of the battery is 24 hours.


Temperature Rating Operation 50°F - 131°F (Red LED)

Temperature Rating Operation 50°F - 104°F (Green LED)


Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

Max Input Power:

Red no battery - 1.5 Watts

Red with battery - 2.5 Watts

Green no battery - 2.3 Watts

Green with battery - 3.0 Watts


The ELSM-C1 D1 series is designed for wall, pendant, and end mount installation.

Mounting Configurations Explained
