![](/web/image/48930-5e54634b/logo_csa.gif)
CSA Certified
Indicates that the product was tested and has met the certification requirements.
Indicates that the product was tested and has met the certification requirements.
![](/web/image/44978-97fd7b57/Fluorescent.gif)
Fluorescent
This unit produces Fluorescent lighting.
This unit produces Fluorescent lighting.
![](/web/image/46277-5214db59/logo_lamp.gif)
Light Bulb(s) Included
This unit includes light bulb(s).
This unit includes light bulb(s).
FEATURES
- Wall pack fixture with optional emergency light and battery backup
- CSA Listed for Damp or Wet Location
- 120V operation
- Die cast aluminum housing
- UV stabilized polycarbonate lens
- (2) 42W 4-pin CFL
- Maintenance-free battery ballast for emergency operation units
- Charge rate / power on indicator and test button with emergency ballast option
- This product is custom made-to-order with a 2 week lead-time. As such it is final sale and no returns are allowed.
Previous Product Codes: ELF-WP
Light Fixture Only: unit operates as a standard (2) 42W CFL light fixture.Light Fixture w/Emergency Ballast: unit operates as a standard (2) 42W CFL light fixture, in the event of a power failure, the emergency battery ballast option will keep the fixture illuminated for industry standard 90 minutes.
Emergency Light Only: unit operates as emergency fixture only. In the event of a power failure, the emergency battery ballast option will illuminate for industry standard 90 minutes.
Operation: If the power circuit that controls the light fixture is on a time clock, this will void emergency lighting option. Emergency lighting fixtures will need to be removed from this circuit. If fixture is desired to be non-operational during the day, please choose the photocell option.
SPECIFICATIONS
Dimensions | |
---|---|
Width | 18.125" |
Height | 9" |
Depth | 7.156" |
Weight | 25.00 lb |
WHAT'S INCLUDED

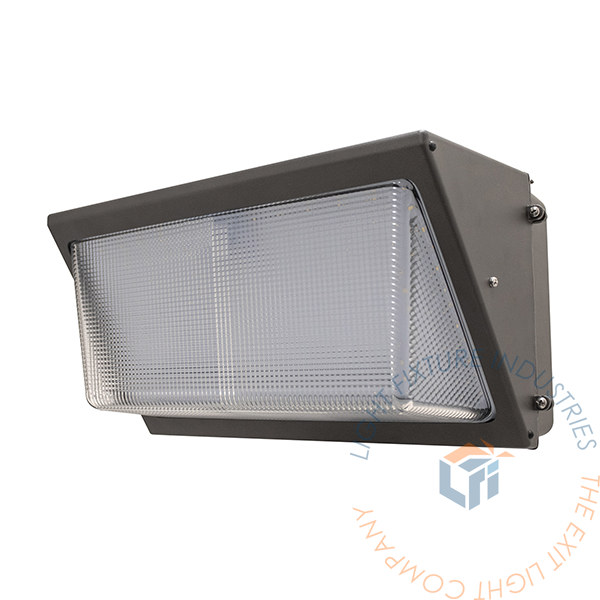

- Bronze Large Wall Pack Light Fixture
- (2) 42W CFL Bulbs
- Installation Instructions & Hardware
- 120V or 277V Photocell (extra cost)
- Emergency Ballast (extra cost)
CONSTRUCTION
Die Cast Aluminum Housing & Hinged Front Frame, ½" Coin Plugs with O-rings for Conduit & Photocell, Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating
EMERGENCY OPERATION
Light Fixture w/Emergency Ballast: unit operates as a standard (2) 42W CFL light fixture, in the event of a power failure, the emergency battery ballast option will keep the fixture illuminated for industry standard 90 minutes.Emergency Light Only: unit operates as emergency fixture only. In the event of a power failure, the emergency battery ballast option will illuminate for industry standard 90 minutes.
ELECTRICAL COMPONENTS
High Pressure Sodium: 100 to 250w
Metal Halide: 100w
Pulse Start: 150 to 250w
Compact Fluorescent: 1 x 26 to 42w, 2 x 26 to 42w
INSTALLATION
Cast-in Template for Mounting Directly Over a 4" Recessed Outlet Box, or Use ½" Surface Conduit.
Mounting Configurations Explained
