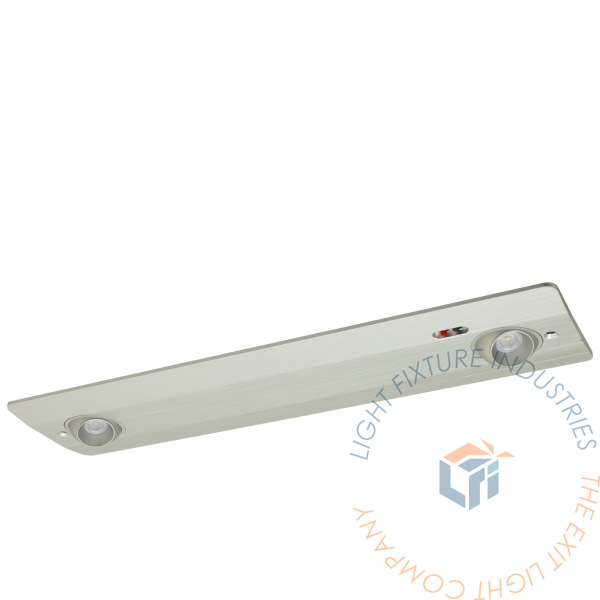

Emergency Light | Recessed Slim Architectural [EL-RSLIM]

The EL-RSLIM is one of a kind recessed mount emergency light. Its aluminum alloy trim plate and adjustable LED lamps make this emergency light great for architectural installation, both business and commercial. Easy installation in both sheet-rock and drop ceiling/remodel applications.

90.00 90.0 USD 90.00

90.00

  • Housing Color
  • Operation Type

This combination does not exist.

Operation Type: Battery Backup

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
  • Listed for damp location IP20 Rated
  • Recessed Mount - Ceiling and Wall
  • Aluminum Alloy Housing
  • Long life LED illumination
  • 3W Power Consumption
  • Test switch and charge rate indicator on battery backup models
  • Dual 120/277 volt operation


SPECIFICATIONS

Dimensions
Width 2.75"
Height 0.41"
Depth 2.98"
Length10.62"
Weight 5.00 lb

WHAT'S INCLUDED

  • Recessed Emergency Lights
  • Installation Instructions & Hardware
  • Battery - Must connect the battery after installation (Located Inside Unit)


CONSTRUCTION

The EL-RSLIM recessed emergency light housing is constructed aluminum alloy.  Aluminum housing color is standard.

ILLUMINATION

The EL-RSLIM recessed emergency light series provides a long life LED illumination. Battery backup units energy consumption is rated at less than 3 watts. The emergency light features adjustable lamps with a 30°, 45°, and 60° beam angel.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-RSLIM recessed emergency light is designed with a 3.6V 1800mAh maintenance-free NI-MH battery.

OPERATIONAL TEMPERATURE

Temperature Ratings
Battery Backup5°C to 40°C / 41°F to 104°F

PHOTOMETRICS

Total Luminaire Lumens : 250

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.


ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

INSTALLATION

The EL-RSLIM recessed emergency light is suitable for recessed wall and ceiling mounting. All hardware is included.

Mounting Configurations Explained

DIMENSIONS
