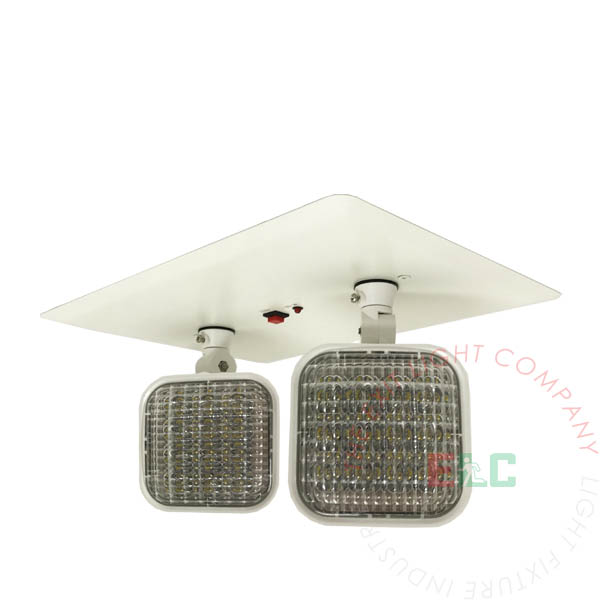

Emergency Light | Recessed 2 Head | White Housing [EL-R2HLED]

https://www.lightfixtureindustries.com/web/image/product.template/1095/image_1920?unique=fd499a8

115.00 115.0 USD 115.00

120.00

Not Available For Sale

  • Operation Type

This combination does not exist.

Operation Type: Battery Backup + Remote Capable

Download Spec-Sheet:
Installation Instructions:

Emergency Light | Recessed 2 Head | White Housing [EL-R2HLED]

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • NFPA 101 Life Safety Code, OSHA, NEC, Local and State Codes
  • Listed for Dry Location
  • Includes two 1 watt LED lamps
  • Complete kit as shown
  • Includes hanging T-Bar kit
  • Ceiling Cut-Out Template Size 11" x 6.25"
  • Comes standard with 10 watts of remote head capacity
  • Push-to-test switch
  • Universal transformer for 120 or 277 VAC operation
  • Maintenance-free sealed battery
  • Charge rate / power on LED indicator light

Previous Product Codes: EL-R2HLED


SPECIFICATIONS

Dimensions
Width 9"
Height 10"
Length 13.25"
Weight 8.00 lb

WHAT'S INCLUDED

  • Steel LED Recessed Emergency Light
  • 6V SLA Battery - Must connect the battery after installation
  • Hanging T-Bar Kit
  • Two 1W LED Lamps
  • Ceiling Cut-Out Template


CONSTRUCTION

The EL-R2HLED is constructed from durable 20-gauge steel trim plate in white or black finish. Trim securely attached to housing with spring clips. UL Listed for dry locations. (25°C)

ILLUMINATION

The EL-R2HLED series features two fully adjustable 1.0W white LED lamp heads. High performance chrome-plated metal reflectors and plastic lens for optimal light distribution.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

6V maintenance-free, rechargeable sealed lead acid battery. Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination. Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

PHOTOMETRICS

Download .IES File


REMOTE HEAD CAPABLE OPTION

The EL-R2HLED has 10 watts of additional remote capacity. 6 volt remote heads are required and will maintain brightness for a minimum of 90 minutes.

ELECTRICAL COMPONENTS

Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge. Remote capacity of 10W standard.

INSTALLATION

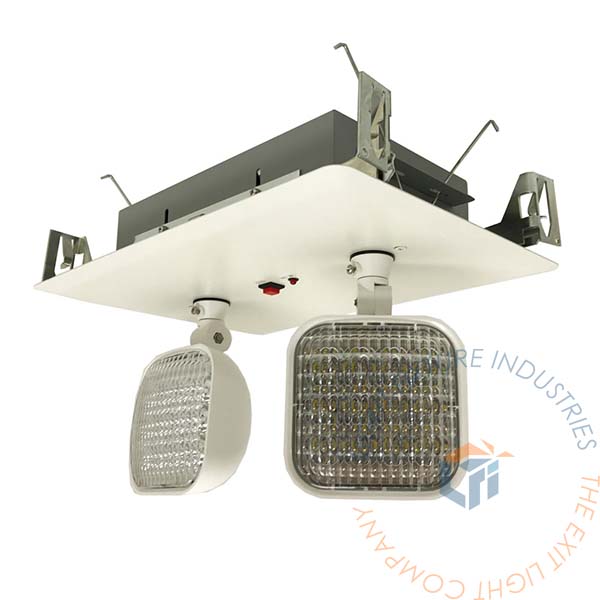

Bar hangers on the back box for recessed mount. Compatible with drop ceiling mount installations. Bar hangers included.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
