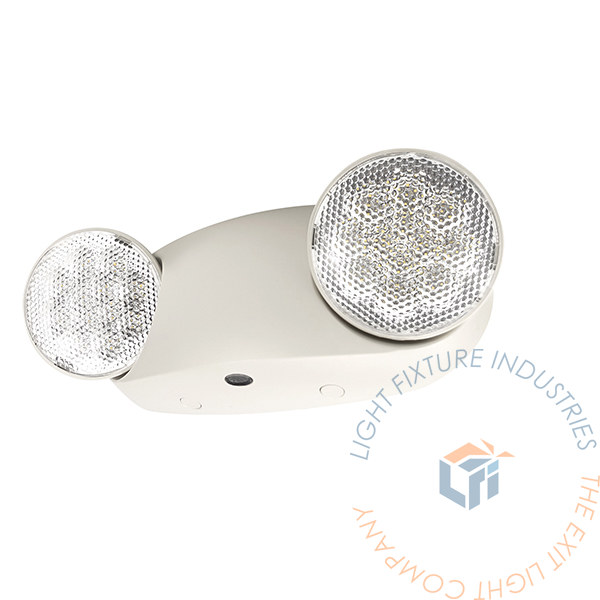

Emergency Light | M2 Series Oval | White Housing [EL-M2]

Fully adjustable emergency light with energy-saving LED lamps in an economical package. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid emergency lighting batteries! Provides emergency power for up to 90 minutes, works on either 120 or 277 VAC.
Brighter than our standard EL-MW unit.

20.00 20.0 USD 20.00

21.00

  • Operation Type

This combination does not exist.


Download Spec-Sheet:
Download MSDS:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Damp location listed
  • 120/277 VAC operation
  • Two fully adjustable, glare-free LED lighting heads
  • Push-to-test switch and status indicator
  • Injection-molded, high impact, UV-stabilized, UL 94 VO thermoplastic housing
  • Lightweight with snap-together construction for easy installation
  • Universal mounting plate with quick-connect feature

Previous Product Codes: EL-MW2, EL-MW2-RH

Compatible Battery:  Standard: 3.6V 1000mAh
Remote Head: BAA-3618

Compatible Remote Head(s): RHP-L-3V, RHB-WPL-3V


SPECIFICATIONS

Dimensions
Height 4"
Depth 2.75"
Length 9"-11"
Weight 3.00 lb

WHAT'S INCLUDED

  • White or Black All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

CONSTRUCTION

The EL-M2 series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

ILLUMINATION

The battery backup and remote head capable series uses two 1.5W LED lamp heads each equipped with 12 series-parallel white LEDs. Lamp heads are on track-and-swivel guides. Glare-free lenses provide clear light source to ensure performance in emergency situations.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solid­state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-M2 Emergency Light series (Battery Backup Model) is designed with a maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Remote Head capable unit is designed with a maintenance-free 3.6V 1800mAh Ni-Mh battery that provides 90 minute battery backup time (180 minute battery backup time if no remote heads are connected). Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 104°F (40°C).

PHOTOMETRICS

Total Luminaire Lumens : 72 Per Lamps

Download .IES File

Battery Backup and Remote Head Capable Units Only

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 6ft path of egress.


REMOTE HEAD CAPABLE OPTION

The remote head capability option allows the EL-M2 unit to supply power to up to two additional LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-M2 is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
