Emergency Light | Recessed Architectural Ceiling Mount | Aluminum 48' Light Spread [EL-LEG]

112.00 112.0 USD 112.00


  • Housing Color
  • Operation Type

This combination does not exist.

Operation Type: Battery Backup
UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • LED indicator light with push-to-test switch
  • Narrow and Wide Lens
  • Universal 120-277 VAC 50/60Hz
  • Solid-state switcing transistor - eliminates damage contacts


Width See Diagram
Height See Diagram
Weight 4.00 lb


  • Recessed Light
  • 2 Trim Plates
  • Installation Instructions & Hardware
  • LiFePO4 Battery - Must connect the battery after installation (Located inside unit)

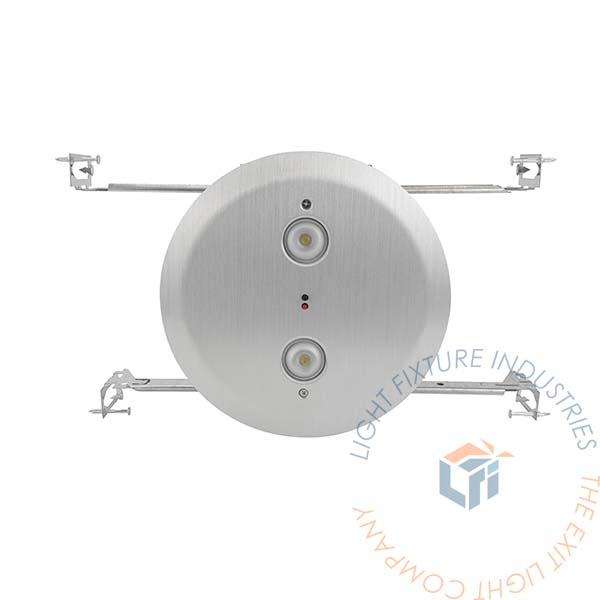

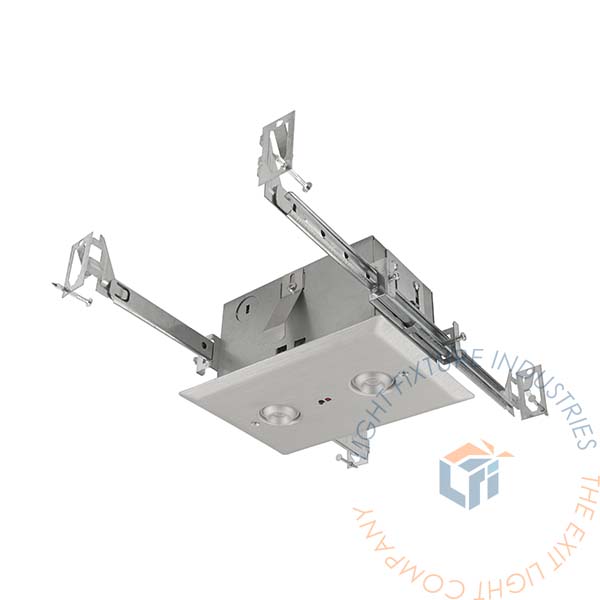

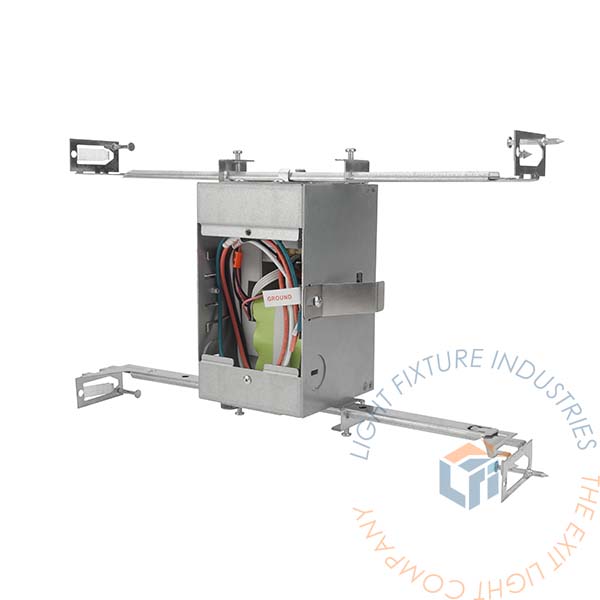

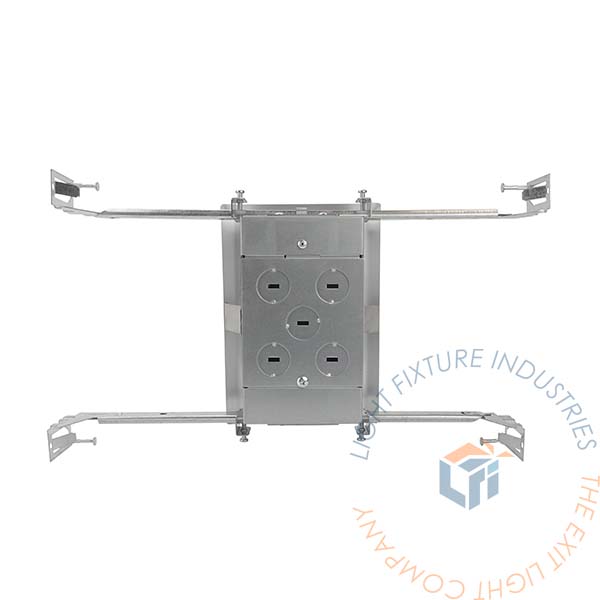

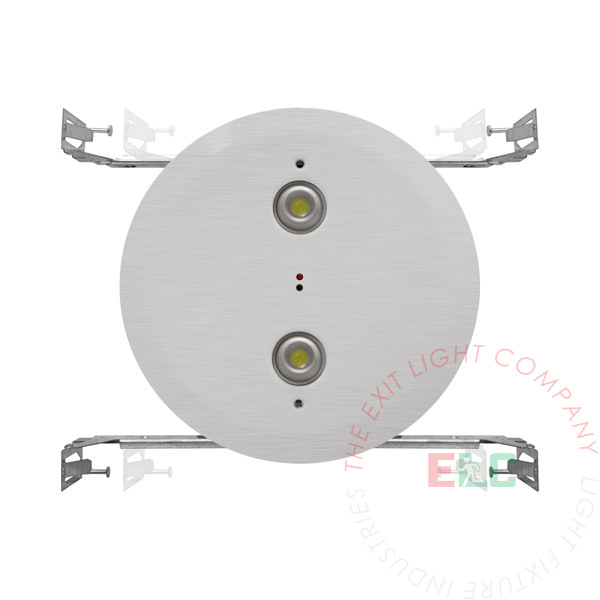

The EL-LEG Recessed Emergency Light is constructed from 20-gauge steel back box with junction box, trim plate is constructed out of aluminum. Friendly configuration design for quick and easy installation.


The EL-LEG Recessed Emergency Light use long-lasting, efficient ultra bright white LEDs CCT 5000k. Equipped with 2 adjustable LED lamps.


Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.


The EL-LEG Recessed Emergency Light is designed with a maintenance-free 3.6V 1800mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.


Temperature Ratings
Standard Option50°F to 104°F


Total Luminaire Lumens : 400lm
Input Wattage: 2.0
Input mA: 22
Hz: 50/60

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 42ft for a 3ft path of egress.

Standard mounting height of 10ft illuminates 1 footcandle (FC) spaced at 48ft for a 3ft path of egress.


Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.


Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Self-testing will take place once a month for 3 minutes and 90 minutes once a year.


Universal voltage input 120/277 VAC 50/60Hz operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Features battery over discharge protection.


The EL-LEG is suitable with drywall or drop ceiling mount installations.

   Mounting Configurations Explained
