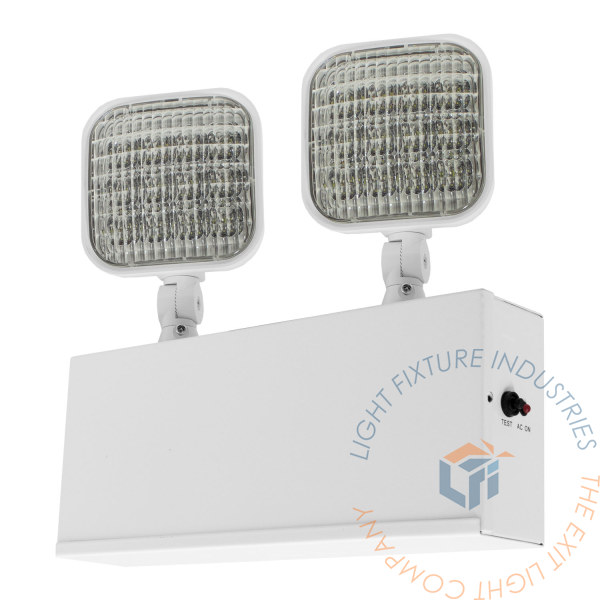

Emergency Light | Industrial Steel [EL-HDLED]

All new LED Heavy Duty Emergency light with remote head capability. Includes maintenance free battery backup, works on either 120V or 277V. Remote capacity up to 20W.

160.00 160.0 USD 160.00

140.00

  • Housing Color
  • Operation Type
  • Heads

This combination does not exist.

Operation Type: Battery Backup + Remote Capable

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • UL Listed for Damp Locations
  • Universal 120/277 VAC (60Hz) input
  • Includes two adjustable LED 1.5W lamp heads - 65 lumens per lamp
  • Remote Capacity of 20W in Standard
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Charge rate / power-on indicator light
  • Battery Backup up to 8hrs (See Battery Backup Section)


SPECIFICATIONS

Dimensions
Height11.37"
Depth 2.5"
Length 12.31"
Weight 10.00 lb

WHAT'S INCLUDED

  • Heavy Duty LED 6V 27W Emergency Light
  • Installation Instructions & Hardware
  • 1 SLA Battery (Located Inside unit)


CONSTRUCTION

The EL-HDLED Heavy Duty Emergency Light is constructed from 20-gauge steel with a white or black finsih. Head lamps are constructed from injection-molded engineering grade high-impact thermoplastic.

ILLUMINATION

The EL-HDLED Heavy Duty Emergency Light comes with 2 fully adjustable LED heads lamps. Each lamp is equipped with 12 x .125W LEDs providing 65 lumens per lamp (130 total lumens).

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-HDLED Emergency Light is equipped with a maintenance-free 6V 12Ah rechargeable sealed lead acid batteries. If no remote heads are attached, unit provides a battery backup runtime up to 8 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
SeriesTemperature
Battery Backup20°C to 50°C / 68°F to 122°F


REMOTE HEAD CAPABLE OPTION

The total capacity is 27W for the entire unit (20W remote capacity). This allows the EL-HDLED unit to supply power to additional 6V remote heads. These remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-HDLED Heavy Duty Emergency Light is suitable for wall installation via included mounting plate. Includes side and top knockouts for conduit feed applications.

Mounting Configurations Explained

DIMENSIONS
