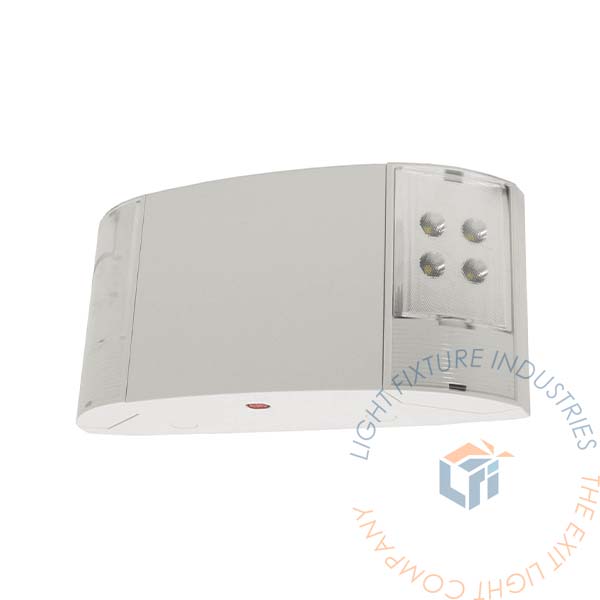

Emergency Light | F2 Series Low Profile [EL-F2]

Fully adjustable white or black housing emergency light with energy-saving LED lamps in an economical package. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC.

21.00 21.0 USD 21.00

21.00

  • Housing Color
  • Operation Type

This combination does not exist.

Operation Type: Battery Backup

Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp locations
  • Universal transformer for 120 or 277 VAC operation
  • Injection-molded, engineering grade, 5VA flame retardant, high impact thermoplastic housing
  • Quick connect back plate
  • Push-to-test switch & Charge rate / Power on LED indicator light
  • Fully automatic solid-state, two-rate charger

Previous Product Codes: EL-F2, EL-FW2, EL-FB2


SPECIFICATIONS

Dimensions
Height 4.5"
Depth 2.1"
Length 9.5"
Weight 5.00 lb

WHAT'S INCLUDED

  • White or Black All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)


CONSTRUCTION

The EL-F2 Emergency Lighting series is contructed from injection-molded, highimpact, engineering-grade, 5VA flame retardant thermoplastic. White housing is standard.

ILLUMINATION

EL-F2 heads use long-lasting, efficient ultra bright white LEDs. The lens is constructed with a high-performance smooth thermoplastic reflector. Prismatic glare-free lens design for increased light distribution.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-F2 Emergency Light is designed with a maintenance-free 3.6V 700mAh NiCad battery (black housing) 3.6V 1000mAh battery (white housing) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Black Housing: 32°F (0°C) to 122°F (50°C)

White Housing: 32°F (0°C) to 104°F (40°C)

PHOTOMETRICS

Total Luminaire Lumens : 240lm

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 3ft path of egress.

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 14ft for a 6ft path of egress.


ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The ELCEL-F2 is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Conduit mount knockout on top of housing and back plate.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
