Emergency Light | Chicago Approved Steel LED [EL-CHLED]

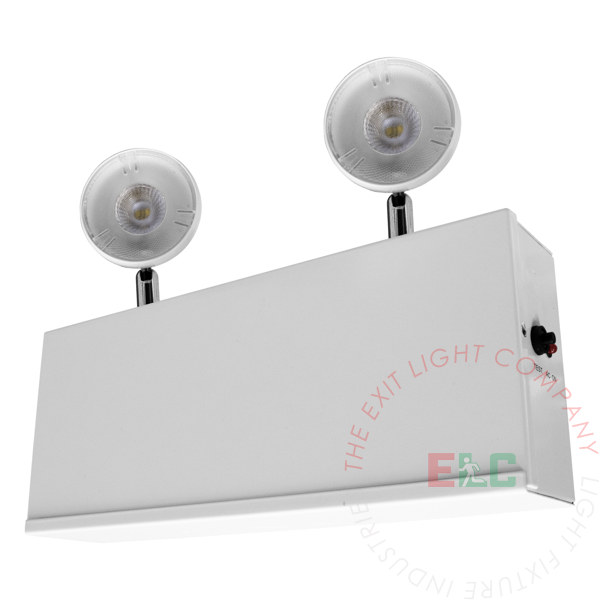

NEW Steel housing emergency light approved for City of Chicago. Features 6V LED lamps along with a durable 20-gauge steel housing available in black and white.

110.00 110.0 USD 110.00

110.00

  • Housing Color
  • Operation Type
  • Remote Capacity

This combination does not exist.

Operation Type: Battery Backup + Remote Capable

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • UL Listed for Damp Locations
  • Universal 120/277 VAC (60Hz) input
  • Includes two adjustable LED lamps - 349 lumens per lamp
  • Remote Capacity of 10W on remote head capable models
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Charge rate / power-on indicator light

Compatible Battery:
Battery Backup Model:
B6V4A Battery
Remote Head Capable Model: B6V12 Battery

Compatible Remote Head(s):
RHB-L (Multi-Volt Option)
RHB-WPL (Multi-Volt Option)


SPECIFICATIONS

Dimensions
Height 11.38"
Depth 2.5"
Length 12.38"
Weight 10.00 lb

WHAT'S INCLUDED

  • Steel Housing LED Emergency Light
  • Installation Instructions & Hardware
  • 1 SLA Battery (Located Inside unit)


CONSTRUCTION

The EL-CHLED series steel housing emergency light is constructed from 20-gauge steel with a white or black finish. Head lamps are also constructed from steel (glass lens).

ILLUMINATION

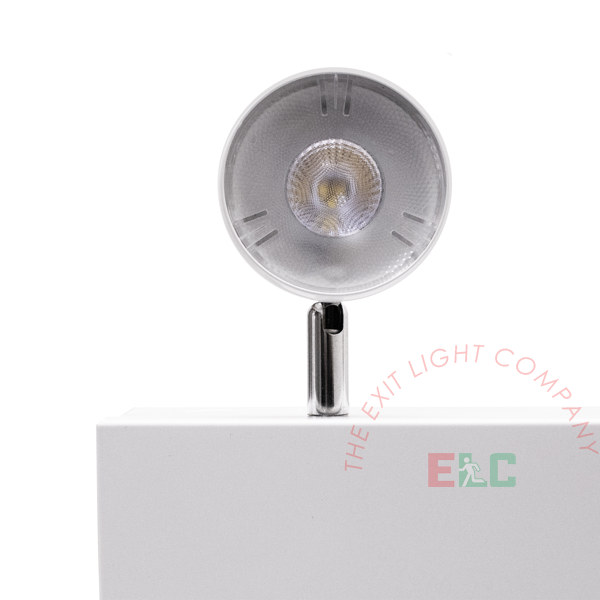

The EL-CHLED series steel housing emergency light comes with 2 fully adjustable LED heads lamps that provide 349 lumens per lamp (698 total lumens). The unit is equipped with (2) 6V 5.3W LED lamps heads.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 120 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

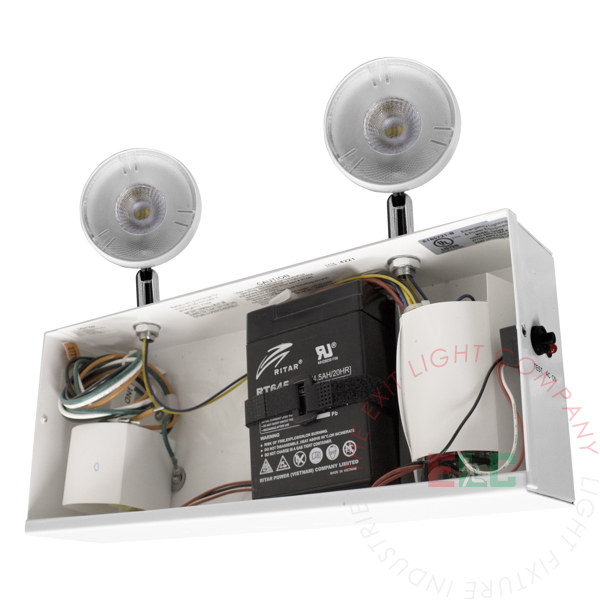

The EL-CHLED series steel housing emergency light is equipped with a maintenance-free 6V rechargeable sealed lead acid battery.

OPERATIONAL TEMPERATURE

Temperature Ratings
SeriesTemperature
Battery Backup20°C to 50°C / 68°F to 122°F


REMOTE HEAD CAPABLE OPTION

The total capacity is 10W. This allows the EL-CHLED unit to supply power to additional 6V remote heads. These remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

ELECTRICAL COMPONENTS

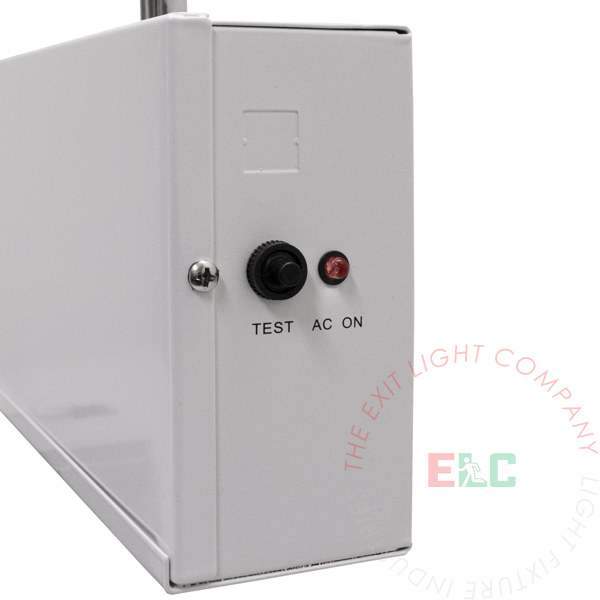

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-CHLED series steel housing emergency light is suitable for wall installation. Includes universal knockout pattern on back plate. Side and top knockouts for conduit feed applications.

Mounting Configurations Explained

DIMENSIONS
