Accessory | Emergency LED Driver | High Bay Lighting | Industrial [EB-UFO]
The EB-UFO Emergency Driver turns your high bay LED light fixtures into code-compliant emergency lights. The powerful LED driver provide emergency lighting for a minimum of 90 minutes in an event of power failure. Easy to install and maintain. Includes remote control tester.
General Applications:
LED UFO High bay Lights
High bay Warehouse Lights
Industrial Lighting
Wattage: 40W |
LED Driver is designed with an easy to follow wiring schematic
This unit uses energy efficient and long lasting LED's.
LED Driver is designed to support high voltage fixtures
FEATURES
- Complies with UL924 standards and CSA 22.2, No. 141 for USA and Canada
- CEC Title 20 with BC Compliance
- UL Listed for field or factory installation
- Simple Wiring - Directly connects to AC input of UFO LED driver
- High output voltage
- Built-in junction box
- Optimized design for UFO high bay fixtures
SPECIFICATIONS
Dimensions | |
---|---|
Width | 5.6" |
Height | 10.75" |
Diameter | 5.6" |
What's Included
- LED Driver
- Installation Instructions
- Wire Nuts
- Steel Hook and Ring
CONSTRUCTION

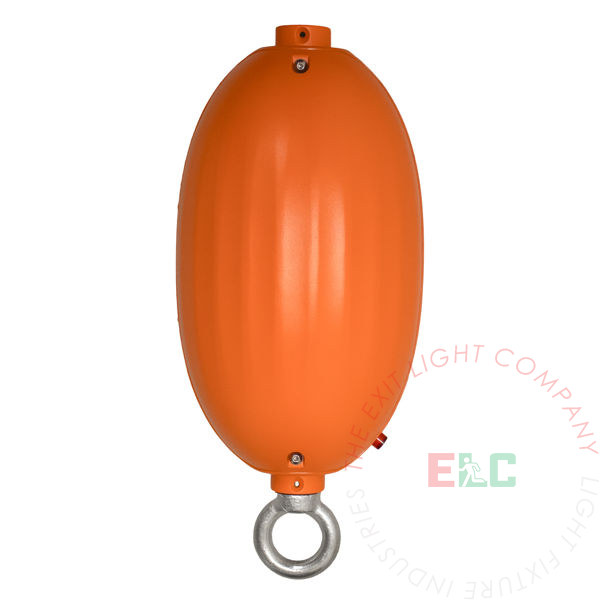

The EB-UFO emergency driver is constructed from durable cast aluminum.
EMERGENCY OPERATION
The EB-UFO emergency driver provides a minimum of 90 minutes of battery backup time in case of power loss.
BATTERY - BATTERY BACKUP
The EB-UFO emergency driver is designed with a maintenance-free Li-ion battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
Temperature Ratings | |
Standard Option | 41°F to 122°F |
SELF-TESTING OPTION
The EB-UFO emergency driver will perform an initial self-diagnostic test for 3 seconds after the diver has been properly installed followed by a second test after 120 minutes to confirm the wiring and battery output. The driver will perform monthly self-test every 30 days for 3 seconds; this will test for wiring and battery output. *A blinking LED or completely off means failed test.
ELECTRICAL COMPONENTS
Model No. | EB-UFO-40W |
Input Voltage | 100-347V AC, 50/60Hz |
Output Voltage | 170V DC |
Emergency Power | 40W |
Battery Type | Lithium |
Recharge Time | ≥24 Hours |
Emergency Time | ≥90 Minutes |
INSTALLATION
The EB-UFO emergency driver can be installed in different types of indoor UFO LED lights, LED highbay lights, warehouse lighting, industrial lighting. We recommend confirming electrical specs to make sure the LED Driver is fully compatible.
Mounting Configurations Explained
