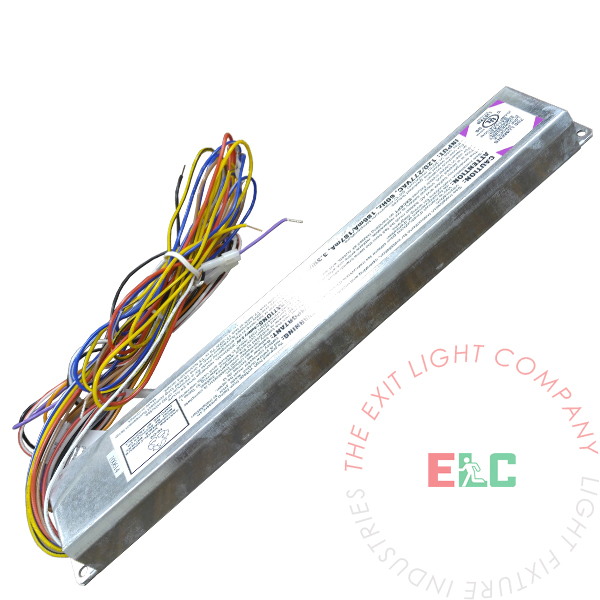

Accessory | Battery Ballast | Fluorescent Low Profile 800 Lumens [EB LFL-800]
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit produces Fluorescent lighting.
FEATURES
- Linear fluorescent lamp emergency ballast
- Contains battery, charger and inverter circuit
- 700 Lumens
- Meets or exceeds all NEC and Life Safety Code emergency lighting requirements
- 90 Minute emergency operation
- 120/277V 60Hz operation (requires unswitched AC power source)
- For use with grounded, UL Listed indoor fixtures
- Compatible with all AC magnetic and electronic ballasts (including multiple lamp ballast w/one lamp operating in emergency mode)
- Cold starts and operates for 90 minutes one 2' to 4' T5 or T8 lamp
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 2.25" |
| Height | 1.125" |
| Length | 14.25" |
| Weight | 10.00 lb |
WHAT'S INCLUDED
- Low Profile Ballast
- Wiring Instructions
- Installation Hardware
CONSTRUCTION
The EB-LFL-800 Low Profile Ballast is designed with a compact heavy duty galvanized steel housing.
ILLUMINATION
The EB-LFL-800 Low Profile Ballast has a 700 lumens output.
EMERGENCY OPERATION
In an event of a power failure, the unit will switch to emergency mode and operate one or two existing lamps for a minimum of 90 mionutes each
BATTERY - BATTERY BACKUP
The EB-LFL-800 Low Profile Ballast is designed with a maintenance-free 8.4V 2000mAh NiCd battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| EB-LFL-800 | 20°C to 50°C / 68°F to 122°F |
ELECTRICAL COMPONENTS
Input: 120/277, 60Hz, 186mA/187mA, 3.3W/3.7W
Compatible with the following lamps:
T5: One Lamp - 17W-54W
Two Lamps - 17W-39W
T8: One Lamp - 17W-54W
Two Lamps - 17W-39W
CFL: One Lamp - 32W
Long CFL: One Lamp - 18W-50W
INSTALLATION
The EB-LFL-800 Low Profile Ballast is suitable for top installation of fixture, in the wire-way and is also approved for use in sealed gasketed fixtures.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
