This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL and cUL Listed
- Two 300° adjustable LED heads lamps
- Injection-modled, high-impact, UL94 V-0 thermoplastic construction
- 120-277 VAC operation
- Universal mounting pattern knock-out in back plate for J-box mounting
- Knock-out left/right arrows
- Test switch and charge indicator
- Innovative and easy installation in minutes
SPECIFICATIONS
| Dimensions | |
|---|---|
| Height | 7.59" |
| Depth | 1.02" |
| Weight | 7.00 lb |
WHAT'S INCLUDED

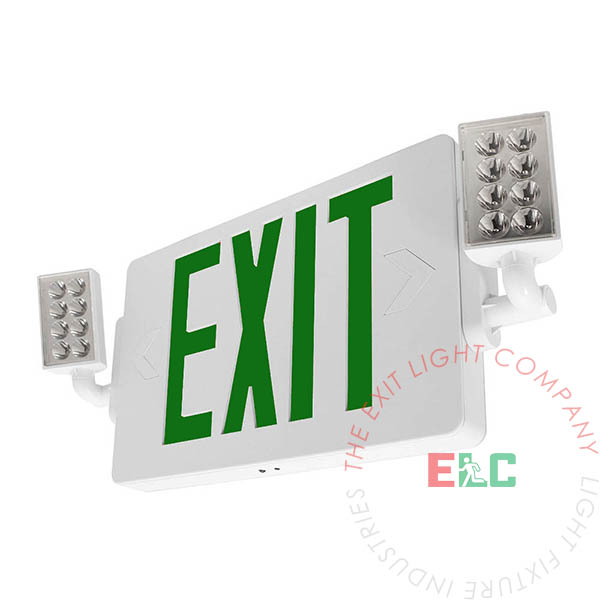

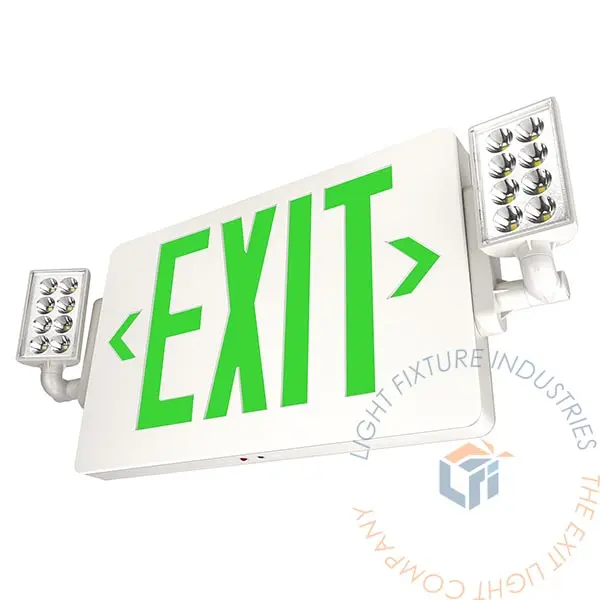

- Thin Green LED Combo Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- Battery (Inside Unit) - Must connect the battery after installation
CONSTRUCTION
The COMBOT-G series is constructed from injection-molded, high-impact, engineering-grade, UV-stabilized, UL 94 V-0 thermoplastic. White housing is standard.
ILLUMINATION
Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chrome-plated reflectors and polycarbonate lenses for optimal light distribution. Exit portion uses Green LEDs.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
BATTERY - BATTERY BACKUP
The COMBOT-G Thin Combo Exit Sign series is designed with a maintenance-free 1.2V 1000mAh NiMH battery that provides an emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 0°C to 40°C / 32°F to 104°F |
PHOTOMETRICS
Total Luminaire Lumens : 85 per lamp
ELECTRICAL COMPONENTS
120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
INSTALLATION
The COMBOT-G is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
