Combo | Thin Green | White Housing [COMBOT-G]

https://www.lightfixtureindustries.com/web/image/product.template/1069/image_1920?unique=a1c3965

28.00 28.0 USD 28.00

26.00

Not Available For Sale

  • Operation Type

This combination does not exist.

Operation Type: Battery Backup

Download Spec-Sheet:
Download MSDS:
Installation Instructions:

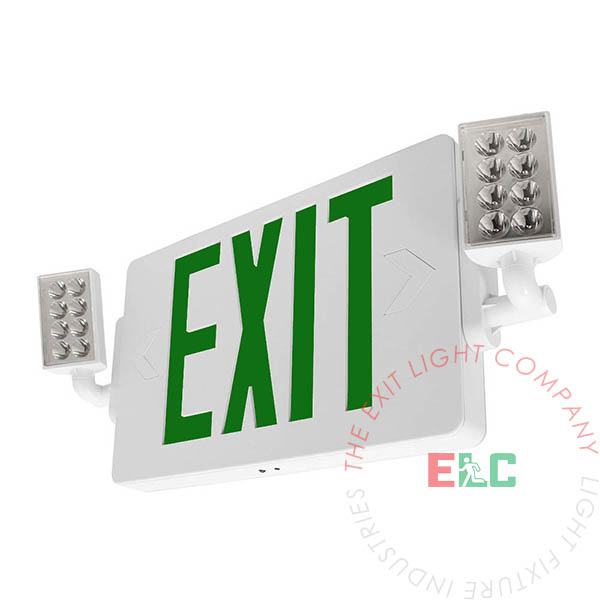

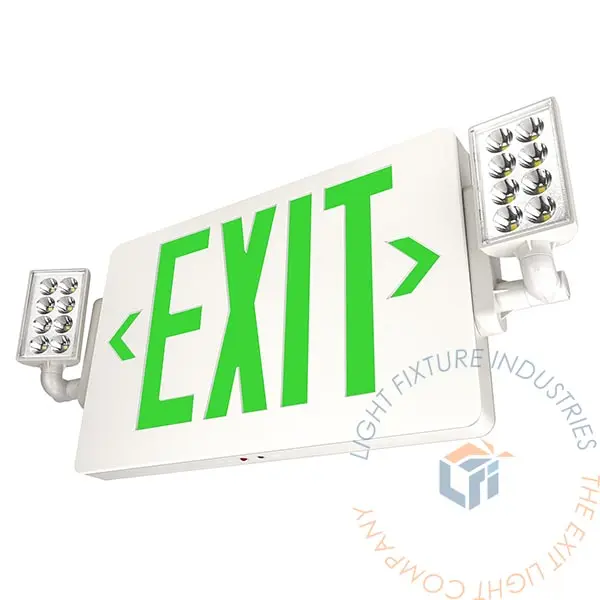

Combo | Thin Green | White Housing [COMBOT-G]

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL and cUL Listed
  • Two 300° adjustable LED heads lamps
  • Injection-modled, high-impact, UL94 V-0 thermoplastic construction
  • 120-277 VAC operation
  • Universal mounting pattern knock-out in back plate for J-box mounting
  • Knock-out left/right arrows
  • Test switch and charge indicator
  • Innovative and easy installation in minutes


SPECIFICATIONS

Dimensions
Height 7.59"
Depth 1.02"
Weight 7.00 lb

WHAT'S INCLUDED

  • Thin Green LED Combo Exit Sign
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • Battery (Inside Unit) - Must connect the battery after installation


CONSTRUCTION

The COMBOT-G series is constructed from injection-molded, high-impact, engineering-grade, UV-stabilized, UL 94 V-0 thermoplastic. White housing is standard.

ILLUMINATION

Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chrome-plated reflectors and polycarbonate lenses for optimal light distribution. Exit portion uses Green LEDs.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

BATTERY - BATTERY BACKUP

The COMBOT-G Thin Combo Exit Sign series is designed with a maintenance-free 1.2V 1000mAh NiMH battery that provides an emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option0°C to 40°C / 32°F to 104°F

PHOTOMETRICS

Total Luminaire Lumens : 85 per lamp

Download .IES File


ELECTRICAL COMPONENTS

120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

INSTALLATION

The COMBOT-G is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
