Combo | Low Level Green [COMBOLO-G]

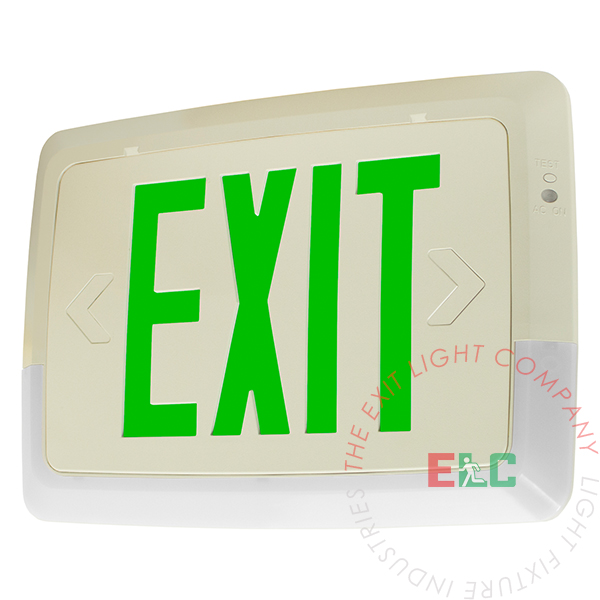

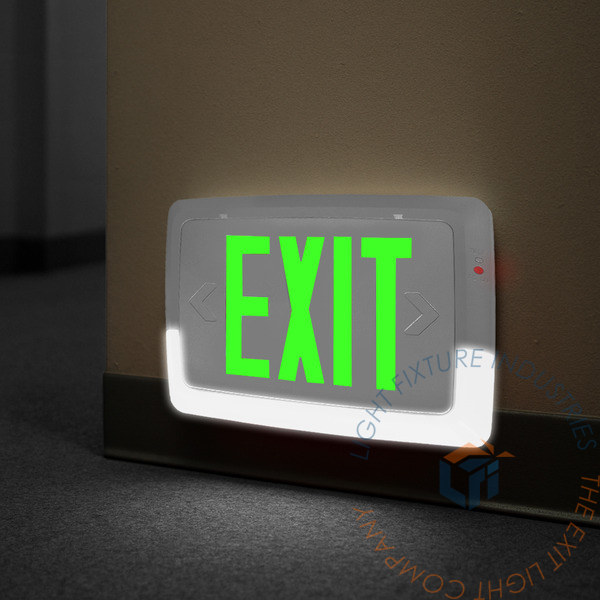

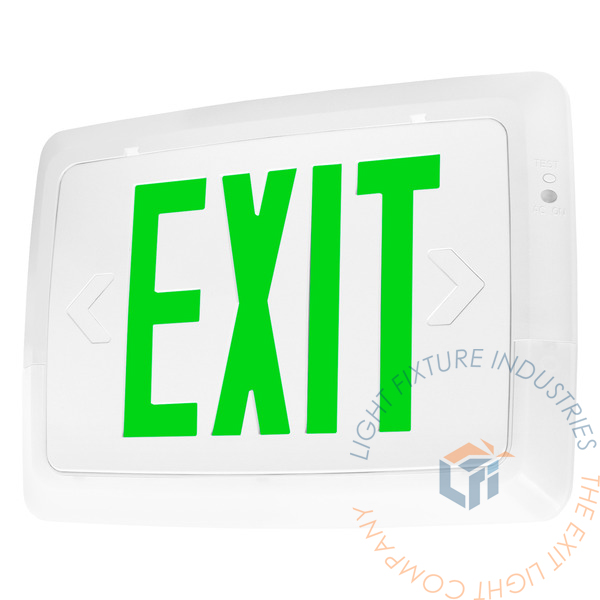

All new Low-Level Green LED Exit Light Combo. Featuring long lasting, efficient ultra bright white LED light strip. Perfect for hospitals, theaters, and other required low-level exit signage installations. Available in both beige and black housing.

121.00 121.0 USD 121.00

121.00

  • Housing Color
  • Operation Type
  • Certifcations

This combination does not exist.

Operation Type: Battery Backup

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC and NFPA 101 Life Safety Code, OSHA, Local and State Codes
  • Listed for damp location
  • 120 or 277 VAC operation
  • Injection-molded, VO flame retardant, high impact housing
  • Charge rate/power "ON" LED indicator light
  • 90 Minute battery backup time


SPECIFICATIONS

Dimensions
Height 10.12"
Depth 1"
Length 14.12"
Weight 5.00 lb

WHAT'S INCLUDED

  • Green LED Exit Sign Combo
  • Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The COMBOLO Low Level Combo LED Exit Sign is constructed from injection molded, 5VA flame retardant, high impact thermoplastic housing. Easy snap-out chevron directional indicators (Arrows).

ILLUMINATION

The COMBOLO Low Level Combo LED Exit Sign illumination is achieved by using long-lasting, efficient ultra bright red or green LEDs for the EXIT portion and white LEDs for the emergency light portion. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

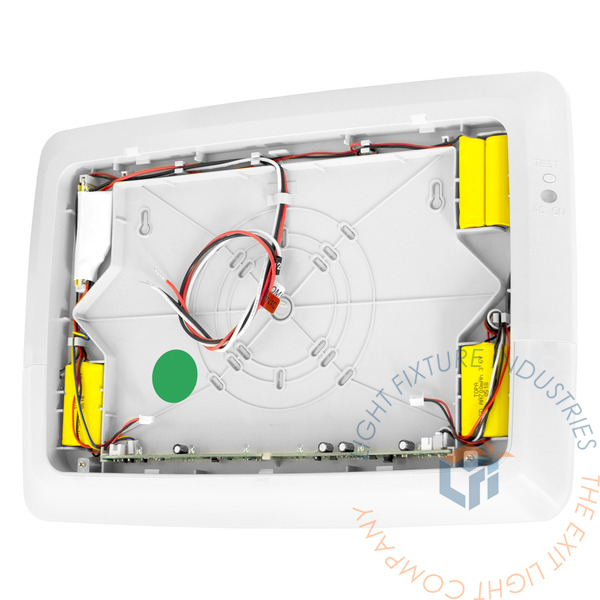

The COMBOLO Low Level Combo LED Exit Sign is designed with a maintenance-free 3.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option0°C to 50°C / 32°F to 122°F


ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Features unique bi-color LED indicator that alerts occupant on battery condition (Green-Normal Status Red-Check Battery). Unit offers surge protected, solid state circuitry.

INSTALLATION

The COMBOLO Low Level Combo LED Exit Sign is suitable for surface wall installation. Knock-out chevrons for customized egress signage.

Mounting Configurations Explained

DIMENSIONS
