Combo | Recessed Edge Lit Green | Aluminum Housing [COMBOELR-G]

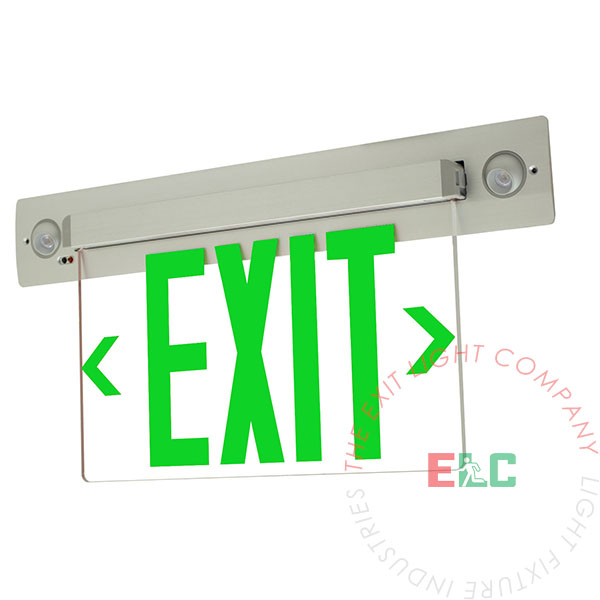

The COMBOELR is a one of a kind Combo LED Recessed Mount Edge Lit Exit Sign with Red "EXIT" letters suited for any high-end design application. The Premium aluminum housing and V-stabilized ultra-clear acrylic paneling makes this Red LED letter exit sign architecturally pleasing. Field installable directional arrows for easy and fast configuration. Compatible with both sheet-rock and drop ceiling/remodel applications.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
- Listed for damp location
- Recessed Mount - Ceiling and Wall
- Aluminum housing with high grade acrylic face
- Field Installable Arrows for Left, Right or Both directions.
- Long life LED illumination
- 3W Power Consumption
- Test switch and charge rate indicator on battery backup models
- Dual 120/277 volt operation
SPECIFICATIONS
Dimensions | |
---|---|
Width | 2.75" |
Height | 6.98" |
Depth | 2.98" |
Length | 17.24" |
Weight | 10.00 lb |
WHAT'S INCLUDED
- Green COMBO LED Edge Lit Exit Sign
- Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
- Mirrored Double Sided "EXIT" faceplate (extra cost)
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The COMBOELR Combo Edge Lit Exit Sign housing is constructed of die-cast aluminum housing with an etched, clear acrylic panel. Double sided panel comes as mirrored configuration. Lettering is 6” high with 3/4” stroke. Aluminum housing color is standard.ILLUMINATION
The COMBOELR Combo Edge Lit Exit Sign series provides a long life LED illumination. The unit is constructed with a red or green high output LED board. Energy consumption is rated at less than 3 watts. Directional heads have a total of 250 lumen output.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The COMBOELR series is designed with a 3.6V 1800mAh maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 41°F (5°C) to 104°F (40°C).OPERATIONAL TEMPERATURE
Temperature Ratings | |
Standard Option | 5°C to 40°C / 41°F to 104°F |
PHOTOMETRICS
Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.Standard mounting height of 10ft illuminates 1 footcandle (FC) spaced at 25ft for a 3ft path of egress.
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.
INSTALLATION
The COMBOELR Combo Edge Lit Exit Sign series is suitable for wall or ceiling recessed mounting. Note: the recessed box has a width in excess of 16" so depending on orientation, it may not be compatible with traditional 16" on center framing. Includes field installable directional arrow indicators. All hardware is included.
