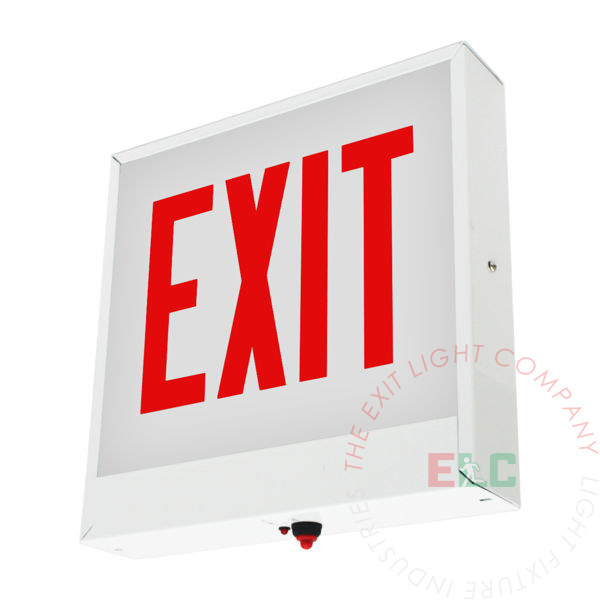

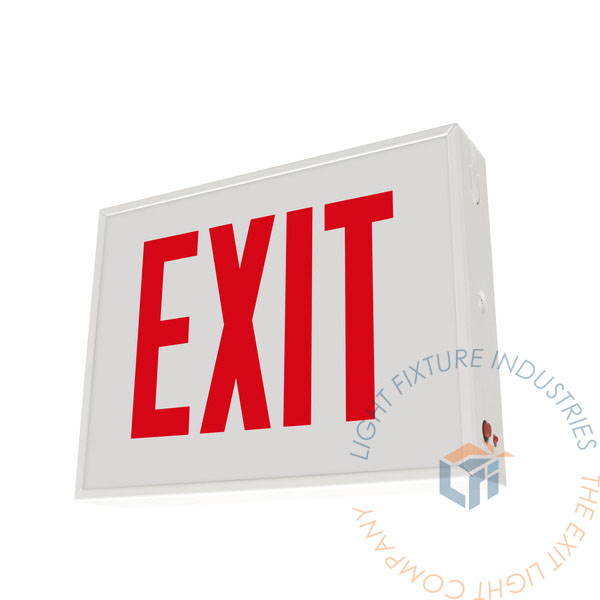

Exit Sign | Chicago Approved Red [CHEX-R]

City of Chicago approved exit sign with steel housing and glass face. Now standard with energy saving LED illumination instead of incandescent lamps.

84.00 84.0 USD 84.00

68.00

  • Operation Type
  • Arrows
  • Sides
  • Signage

This combination does not exist.


Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

City of Chicago Approved
This product is approved for Chicago City.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • City of Chicago approved
  • Universal 100-300VAC 50Hz Operation
  • Now uses LEDs for improved energy efficiency
  • Open-face glass panel, silk-screen letters
  • 20 gauge steel housing with white powder coat finish
  • Universal mounting canopy included for side, top and flush mounting (add 2" for canopy)
  • NON CEC Compliant

Previous Product Codes: CHEX


SPECIFICATIONS

Dimensions
Width 11"
Height 12.125"
Depth 2.25"
Weight 10.00 lb

WHAT'S INCLUDED

  • RED LED Exit Sign
  • One "EXIT" Faceplate ("STAIRS" faceplate extra cost)
  • One Blank Faceplate
  • Faceplate with arrow (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The CHEX series is constructed from durable 20-gauge steel. Unique design allows double face conversion on field.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The CHEX series is designed with a maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.


ELECTRICAL COMPONENTS

Universal input 100-300 VAC 50HZ operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit.

INSTALLATION

The CHEX is suitable for ceiling and end mount via steel mounting canopy.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
