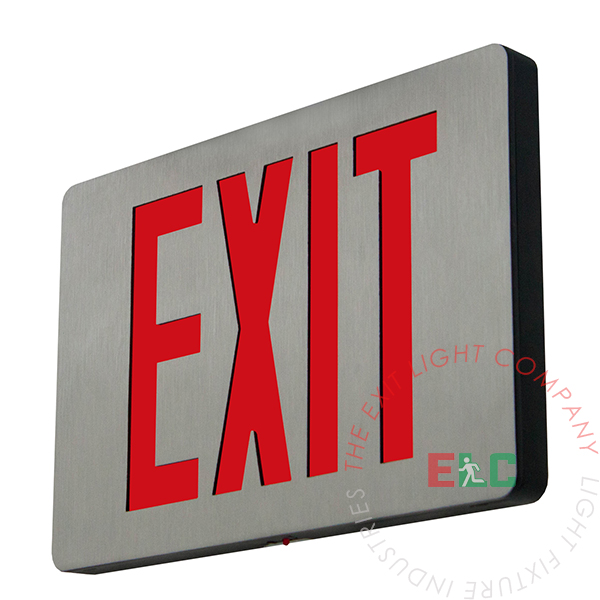

Exit Sign | Thin Cast Aluminum Red [CASLIM-R]

Attractive, functional, architectural and slim design that fits into any environment. Works on either 120 or 277 VAC. Faceplate includes knock-out left/right arrows for directional indication. Included canopy mount allows both top or end installation.

110.00 110.0 USD 110.00

110.00

  • Faceplate / Housing Color
  • Operation Type
  • Sides

This combination does not exist.


Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • Universal 120/277 VAC operation
  • Low profile unit
  • Precision die cast aluminum construction
  • Low-profile canopy included (allows nearly flush ceiling or end mounting)
  • Chevron style universal arrow knock-outs
  • Push-to-test switch with Charge rate / power on LED indicator light
  • NON CEC Compliant


SPECIFICATIONS

Dimensions
Width 11.8125"
Height 7.75"
Depth 0.875"
Weight 8.00 lb

WHAT'S INCLUDED

  • RED LED Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Matching Second "EXIT" Faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The CASLIM-R series is constructed from spec grade die-cast aluminum with a low profile, thin design. Aluminum face with black housing is standard.

ILLUMINATION

The CASLIM-R illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

EMERGENCY OPERATION

The CASLIM-R series is designed with a maintenance-free 2.4V long life, NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

BATTERY - BATTERY BACKUP

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The CASLIM-R is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
