This unit uses energy efficient and long lasting LED's.
- Meets UL 924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
- Adjustable 8 LED lamp head
- Multi-Volt: 3/6/9/12V
- Constructed from premium grade die-cast aluminum
- Adjustable lamp head(s)
- For use with any remote head capable emergency light or exit sign with matching voltage
Compatible Units (Battery Backup + Remote Head Capable Option Must be Selected)
Emergency Light(s): EL-2, EL-M2, and EL-LWET
Combo Exit Sign(s): COMBO2, COMBOJR2, and COMBOLP
Exit Sign(s): LEDJR

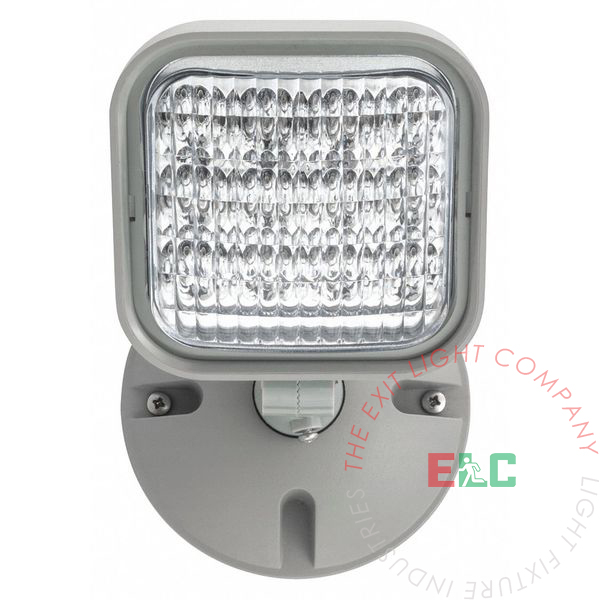

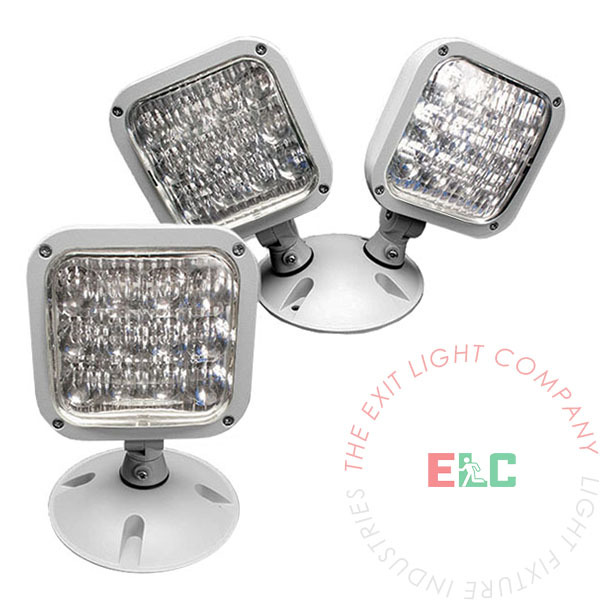

- Single or Double Lamp LED Remote Head
- Weatherproof Gasket
- Mounting Hardware
The RHB-SWP remote head series is constructed from premim grade die-cast aluminum. Housing is sealed and gasketed
The RHB-SWP remote head series has long lasting, efficent, and ultra bright LED's with a chrome-plated metallized reflector and lens for optimal light distribution.
|Standard Option||-22°F to 122°F|
Powered from low voltage power source with low voltage wiring (not provided).
The RHB-SWP LED Remote Head includes a universal mounting base plate with mounting hardware. The distance of maximum run is determined by system voltage, wire gauge and total maximum wattage on the run. Suitable for wall or ceiling mount.
Mounting Configurations Explained
