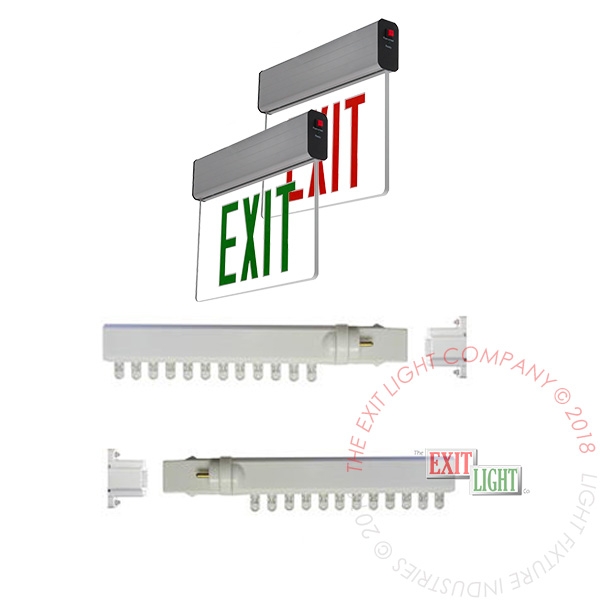

Accessory | White LED | Retrofit Kit for Edge Lit Exit Signs [RETRO-W-FL]
This LED kit is for retrofitting Edge Lit Exit Signs that have F8T5 or PL5, 7, 9 fluorescent bulbs and replacing them with LED lamps (included). Please choose the PL Socket Adapter option if PL G23 socket adapters with pre-drilled mounting holes for easy hardwiring are needed.
LED Lighting
This unit uses energy efficient and long lasting LED's.
FEATURES
- 12" by 2" footprint with two lamps and two sockets installed.
- For 120V applications (277V available - please call)
- 1 watts per lamp (2 watts per kit)
- Solid-state electronics
- Surge protected
- No need for ballast's - lamps operate on direct line voltage
Previous Product Codes: RETRO-W-FL
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 1.5" |
| Diameter | 1" |
| Length | 5.625" |
| Weight | 2.00 lb |
WHAT'S INCLUDED
- 2 RETROFIT Kits
- 2 Base Sockets
ILLUMINATION
With the ELCRETRO-W-FL Kit easily convert incandescent edge lit exit signs to energy efficient LED exit signs. Ultra bright long-life white LED.ELECTRICAL COMPONENTS
Dual 120/277 voltage. Energy usage of 1W per kit. No need for ballasts, lamp operates on direct line voltage.INSTALLATION
The ELCRETRO-W-FL kit is supplied with PL G23 sockets that have pre-drilled mounting holes for easy hard-wiring.Mounting Configurations Explained
DIMENSIONS
