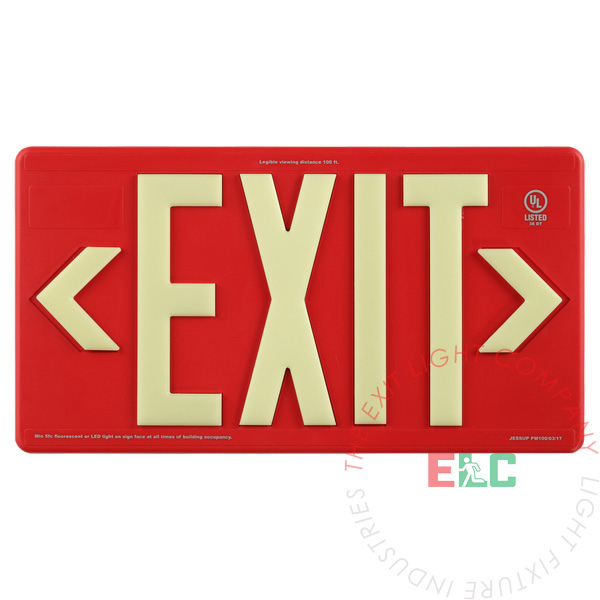

Exit Sign | Photoluminescent | 100' View [PA100]
100' Viewing Distance! The only photoluminescent sign on the market at 100' viewing distance. Extremely durable explosion-proof, weatherproof, flame retardant and non toxic plastic. Approved for outdoor/wet-location applications. No electricity or battery required. Provides 90+ minutes of illumination.
Please note adhesion of the letters to the exit sign will require clear caulking or other materials rated for the environment in which signs are installed (not included). Double sided tape is included, but will need supplemental adhesion to ensure long term durability of the letters.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology.
This unit is made in the United States.
FEATURES
- UL 924, OSHA and NFPA 101 Life Safety Code
- Listed for wet location
- LEED points qualified
- Explosion-proof, weatherproof.
- 7" Letter Height
- No electricity, no batteries
- Ceiling, side or wall mounting - mounting bracket included with double sided units
- Life Expectancy: 25+ years
- No future hazmat disposal needed
Previous Product Codes: PAR100, PA100, PAG100
100' Viewing Distance! The only photoluminescent sign on the market at 100' viewing distance. Extremely durable explosion-proof, weatherproof, flame retardant and non toxic plastic. Approved for outdoor/wet-location applications. No electricity or battery required. Provides 90+ minutes of illumination.
Please note adhesion of the letters to the exit sign will require clear caulking or other materials rated for the environment in which signs are installed (not included). Double sided tape is included, but will need supplemental adhesion to ensure long term durability of the letters.
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 15.87" |
| Height | 8.62" |
| Depth | 0.37" |
| Weight | 6.00 lb |

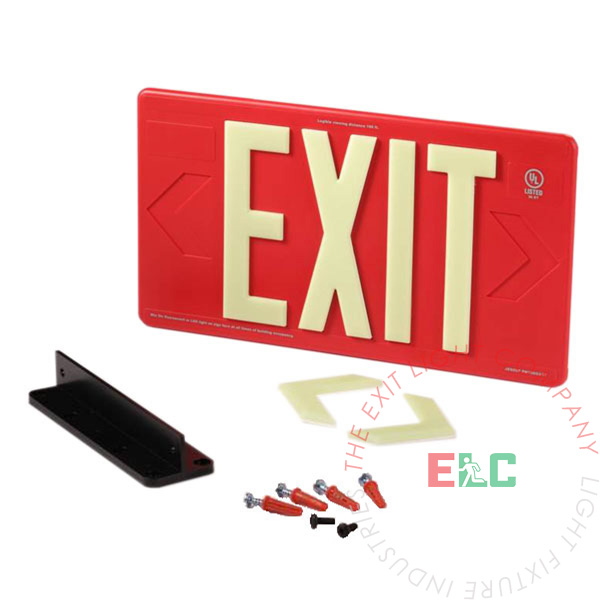

WHAT'S INCLUDED
- RED or GREEN Photoluminescent Exit Sign
- 2 optional adhesive arrows
- Mounting Canopy, Installation Instructions & Hardware
CONSTRUCTION
The PA100 Series has a thin, low profile construction with ABS plastic paneling and photoluminescent lettering. This wire-free exit sign is high durability explosion proof and suitable for wet locations with a life expectancy of 25+ years.

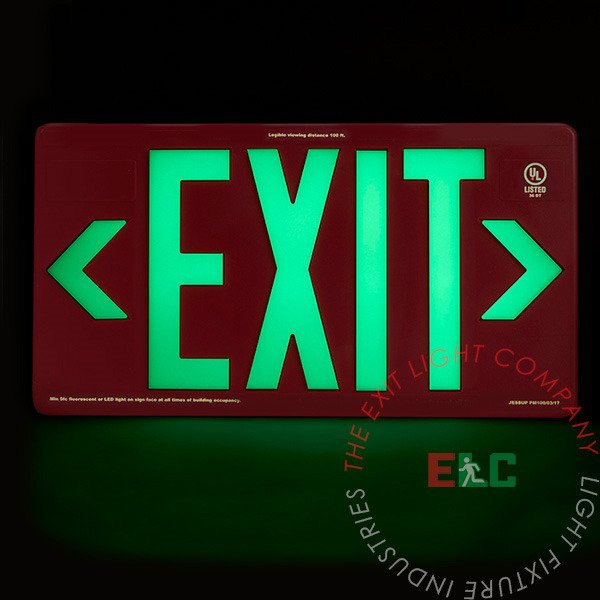

ILLUMINATION
The PA100 Series has a viewing visibility of 100 feet. Provides consistent, uniform illumination.
EMERGENCY OPERATION
Upon failure of the normal utility power the PA100 exit sign will provide at least 90 minutes of illumination. *The sign must be charged for a minimum of 60 minutes to become fully operational.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | -28°C to 65°C / -20°F to 150°F |
ELECTRICAL COMPONENTS
The PA100 Series does not use nor requires any type of electrical components.
INSTALLATION
Surface, flag or ceiling mounted (hardware included). Before installation it must be determined that there is a minimum of 5 FC of LED or fluorescent light on the face(s) of the sign at all times during building occupancy. The sign can be used in both high-level and low-level applications. (Conduit bracket sold separately.)
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
