This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This product uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology.
This unit doesn't require electricity or a battery.
FEATURES
- UL 924, NEC and NFPA 101 Life Safety Code
- Listed for Wet Locations
- No electricity, no batteries required
- Life Expectancy 20 years
- Operating Temperature -4°F – 122°F
- Field installable arrow configuration
- 50 foot viewing distance
- 90 minutes of illumination
- Requires 54 LUX (5-ft candles) of LED, fluorescent, metal halide or mercury vapor light to charge material for 60 minutes
- Indoor/Outdoor installation
- No future hazmat disposal needed
Previous Product Codes: PAJ
SPECIFICATIONS
| Dimensions (May Vary by Model) | |
|---|---|
| Width | 15.5" |
| Height | 8.6" |
| Depth | .38" |
| Weight | 4.00 lb |
WHAT'S INCLUDED
- Single Sided RED or GREEN Photoluminescent Exit Sign
- Two optional adhesive arrows
- Black Frame
- Installation Instructions
CONSTRUCTION
The PA1 Series Exit Sign has a thin, low profile construction with 50' visibility. It has a durable plastic photoluminescent panel with a black plastic frame. This photoluminescent exit sign is explosion-proof for areas requiring explosion-proof exit signage.
ILLUMINATION
The PA1 Series Exit Sign has a viewing visibility of 50'. Provides consistent, uniform illumination.
EMERGENCY OPERATION
Upon failure of the normal utility power the PA1 exit sign will provide at least 90 minutes of illumination.
Charging this glow in the dark exit sign requires 54 LUX (5-ft candles) of LED, fluorescent, metal halide, or mercury vapor light for 60 minutes.
*The sign must be charged for a minimum of 60 minutes to become fully operational.
BATTERY - BATTERY BACKUP
The PA1 Series Exit Sign does not require a battery to operate.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | -4°F to 122°F |
ELECTRICAL COMPONENTS
The PA1 Series Exit Sign does not use nor require any type of electrical components.
INSTALLATION

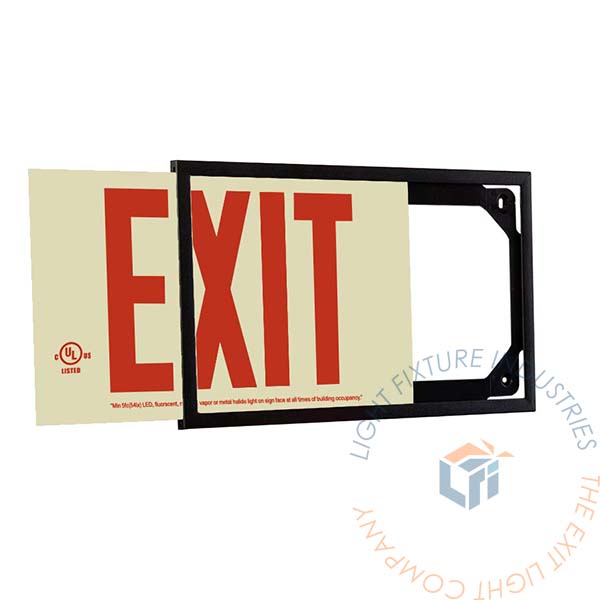

The PA1 Series Exit Sign is designed for wall mount application. The black frame features holes in each corner for easy installation. For signs without a frame, double-sided tape (tape not provided) can be used for mounting. It also comes with two self-adhesive arrows for easy customization. This sign is suitable for both indoor and outdoor installations. However, prolonged exposure to direct sunlight in outdoor settings may lead to some discoloration, particularly in signs with plastic components. The photoluminescence of the lettering itself is not expected to be significantly affected by sunlight exposure.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
