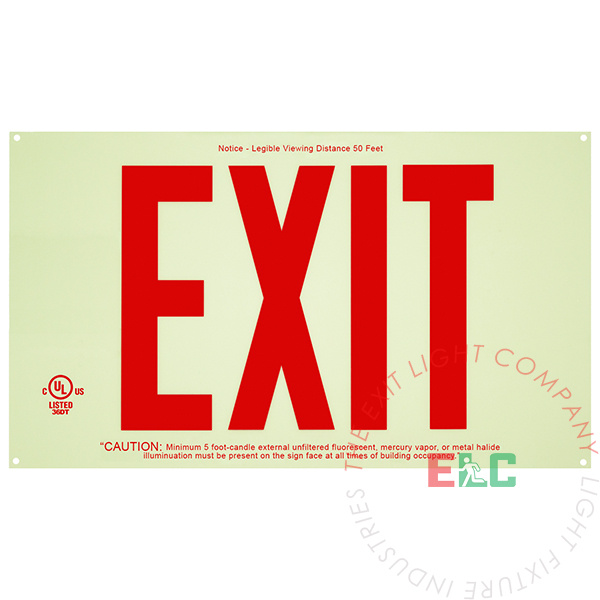

Exit Sign | Photoluminescent | NYC Approved Red [NYCPA-R]
UL 924 listed and certified. 8" Lettering Approved for New York City Standards. No electricity nor battery required. Provides 50-foot viewing distance. Produced on plastic substrate. Provides great life expectancy (+25 years). Sign comes with kit for LEFT and/or RIGHT arrows. Provides 90 minutes of illumination.
![](/web/image/41374-66372db2/ul_logo.jpeg)
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![](/web/image/45711-c376a22b/Photoluminescent.gif)
This unit uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology.
![](/web/image/49539-df3927c8/logo_nyc.gif)
This product is approved for New York City.
FEATURES
- UL 924 & NFPA 101 Life Safety Code
- LEED points qualified
- No electricity, no batteries
- Explosion proof, weatherproof
- Four mounting holes provided
- Requires 54 LUX (5-ft candles) of LED, fluorescent, metal halide or mercury vapor light to charge material for 60 minutes
- Install indoors only. Do not expose to direct sunlight
- Long life expectancy
- No future hazmat disposal needed
Previous Product Codes: PARNYC
SPECIFICATIONS
Dimensions | |
---|---|
Width | 17" |
Height | 10" |
Weight | 2.00 lb |
WHAT'S INCLUDED
- NYC Approved Exit Sign
- 2 Self-Adhesive Arrows
- Installation Instructions
CONSTRUCTION
The NYCPA-R series has a thin, low profile, durable plastic construction with 8" NYC approved lettering with 50' visibility. It has a durable plastic photoluminescent. This photoluminescent exit sign is explosion-proof for areas requiring explosion-proof exit signage.
ILLUMINATION
The NYCPA-R exit sign provides a high photoluminescent visible green background. (Sign must be kept fully charged for best results)
EMERGENCY OPERATION
Upon failure of the normal utility power the NYCPA-R exit sign will provide at least 90 minutes of illumination. *The sign must be charged for a minimum of 60 minutes to become fully operational.
INSTALLATION
The NYCPA-R is suitable for surface mount: Both high and low level applications. This unit can be mounted to the surface via screw or with adhesive (not included). Before installation it must be determined that there is a minimum of 5Fc of fluorescent, LED, metal halide, or mercury vapor light on the face(s) of the sign at all times during building occupancy.
Mounting Configurations Explained
