Combo | NYC Approved Steel [NYCOMBOLED]

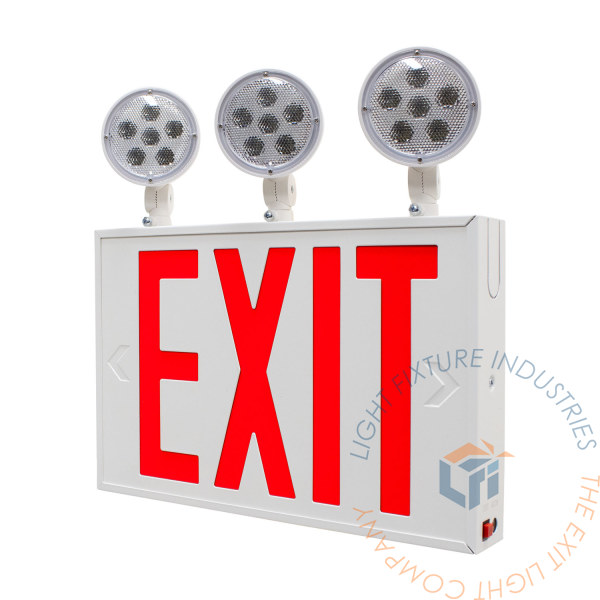

New York City Approved Exit Sign / Emergency Light Combo unit. Energy efficient and bright LED's power the EXIT sign verbiage and the fully adjustable lamp heads. This unit ships with 3 LED lamp heads, with the 3rd being optional. This NYC Combo Exit Light is single sided and allows for indoor surface wall mounting. EXIT faceplate has two optional pop-out directional chevron arrows.

80.00 80.0 USD 80.00


  • Housing Color
  • Operation Type

This combination does not exist.

Operation Type: Battery Backup

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.


  • NYC Emergency light combo with battery backup
  • Rugged 20 gauge steel housing
  • Approved for New York City Code requirements
  • Universal 120/277 VAC input
  • Includes three adjustable LED lamp heads
  • Third head is optional and installed by field-technician
  • Brown-out protection
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Maintenance-free battery
  • Charge rate / power-on indicator light


Width 14.58"
Height 16.78"
Depth 2.5"
Weight 10.00 lb


The NYCOMBOLED New York City Steel Combo is constructed from powder-coated 20-gauge steel with injection-molded thermoplastic heads. White housing is standard.


The NYCOMBOLED uses two LED lamps. High-performance smooth metal reflector and glass lens for optimal light distribution.


Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.


The NYCOMBOLED series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.


Total Luminaire Lumens : 195.3 Per Lamp

Download .IES File


Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.


The NYCOMBOLED is suitable for wall installation, back faceplate has knockouts for universal mounting configuration.

Mounting Configurations Explained
