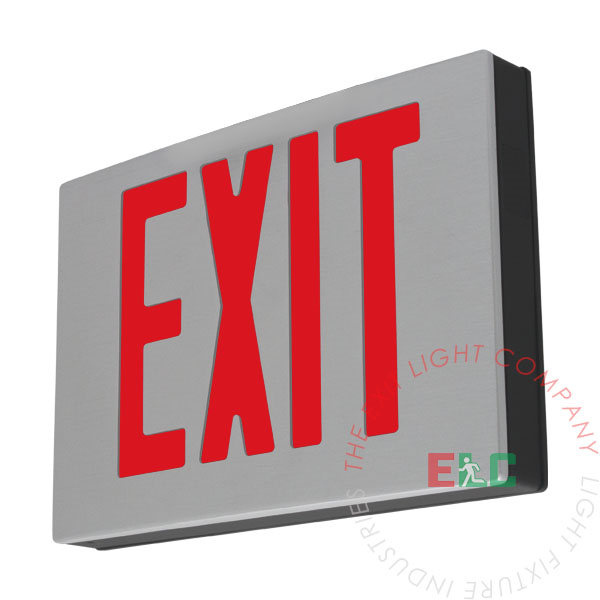

Exit Sign | NYC Approved Cast Aluminum Red [NYCCA-R]
An efficient and secure exit sign with cast aluminum housing that is architecturally pleasing. Works on either 120 or 227 VAC. Faceplate includes knock-out left/right arrows. Allows both top or lateral installation.
![](/web/image/41374-66372db2/ul_logo.jpeg)
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![](/web/image/41362-da32702f/led_logo.gif)
This unit uses energy efficient and long lasting LED's.
![](/web/image/49539-df3927c8/logo_nyc.gif)
This product is approved for New York City.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- New York City Approved
- 8" Letters
- Damp Location Rated
- Universal 120/277 VAC operation
- Universal canopy included
- Spec grade cast aluminum
- Universal knock-out chevrons
- Push-to-test switch
Previous Product Codes: NYCA-ABR
Compatible Battery: BAA-48R
SPECIFICATIONS
Dimensions | |
---|---|
Width | 15.5" |
Height | 11.25" |
Depth | 2.06" |
Weight | 6.00 lb |
WHAT'S INCLUDED
- RED LED Exit Sign
- One "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Matching Second "EXIT" Faceplate (extra cost)
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The NYCCA-R series is constructed from premium-grade, aluminum housing. Field selectable knockout chevron (Arrows) directional indicators. Aluminum face with black housing is standard. 8" EXIT verbiage for NYC Code.
ILLUMINATION
The NYCCA-R Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red LEDs. Color-matched diffuser eliminates hot spots and striations, providing optimal light output.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The NYCCA-R series is designed with a maintenance-free 4.8V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
Temperature Ratings | |
Standard Option | 0°C to 50°C / 32°F to 122°F |
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid-state circuitry.
INSTALLATION
The NYCCA-R is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions
