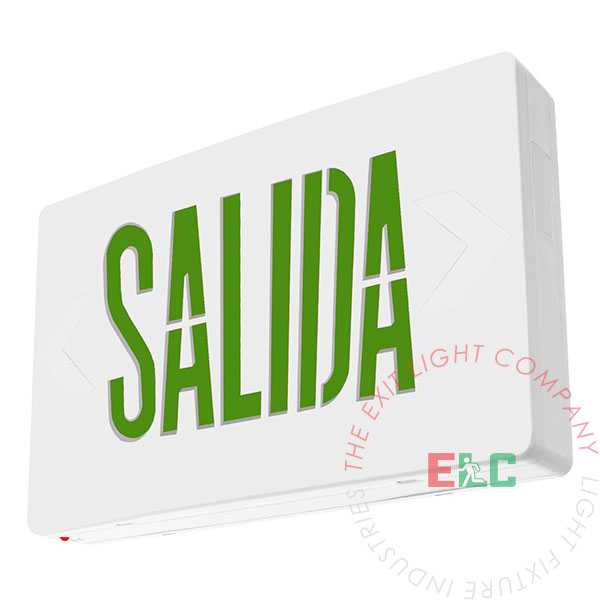

Exit Sign | Salida Spanish | White Housing [LEDSP]
A simple, efficient and secure exit sign reading SALIDA. This Backup Battery or AC Only unit works on either 120 or 277 VAC. An optional rear SALIDA faceplate is included with this unit.
A left and right arrow can be knocked out from the faceplate to point to the exit direction. A universal mounting bracket allows for easy mounting from the top or sides.
The LEDSP series is UL listed and meets or exceeds the following: UL 924, NEC and NFPA 101 Life Safety Code requirements.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- Push-to-test switch
- 120 or 277 VAC operation
- Injection-molded, VO flame retardant, high impact housing
- Charge rate / power on LED indicator light
- Listed for damp location
- Universal mounting canopy for top or side installation
- NiCad battery 4.8V 700mAh
- Please note, this product does not meet UL924 requirements
Previous Product Codes: LEDRBB-SP
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 12.25" |
| Height | 75" |
| Depth | 1.75" |
| Weight | 4.00 lb |
CONSTRUCTION
The LEDSP Exit Sign is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing. White housing is standard.
ILLUMINATION
The LEDSP Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The LEDSP Exit Sign series is designed with a maintenance-free 4.8V 700mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 20°F (-7°C) to 95°F (35°C).
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 20°C to 30°C / 68°F to 86°F |
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
INSTALLATION
The LEDSP Exit Sign is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
