Exit Sign | JR Series Green [LEDJR-G]

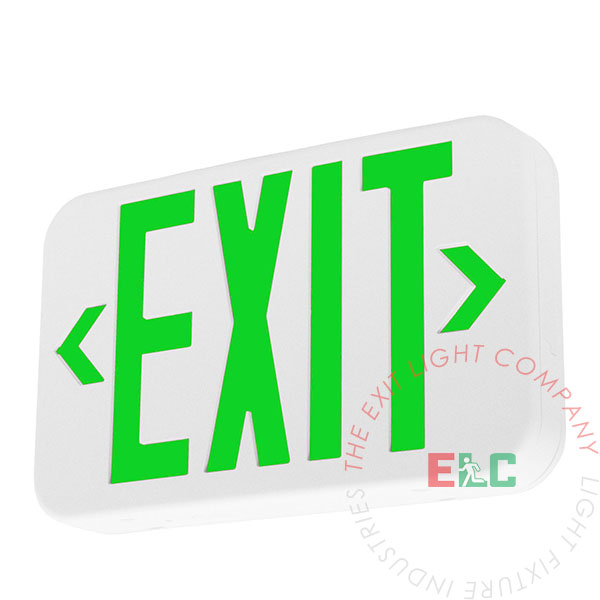

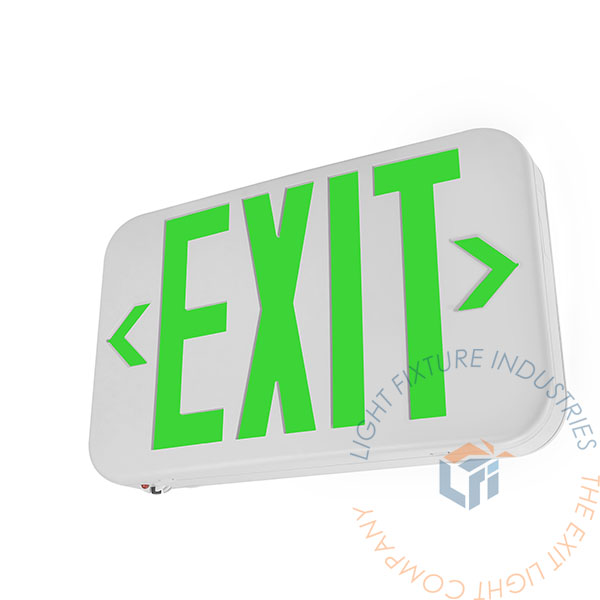

A modern, energy effecient UL Listed LED Exit Sign with standard Green LED letters. This unit works on either a 120 or 277 VAC and includes a backup battery providing up to 90 minutes of power during an emergency.
A left and right arrow can be knocked out from the faceplate to point to the exit direction. A universal mounting bracket allows for easy mounting from the top or sides. This exit sign is pre-assembled and shipped single sided with an additional EXIT faceplate included in the box for optional manual assembly.
Compatible Battery:
Battery Backup: BAA-12
Remote Head Capable: BAA-3618 (White Housing ONLY)
Download Spec-Sheet:
Download MSDS:
Installation Instructions:
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC and NFPA 101 Life Safety Code
- Listed for damp location

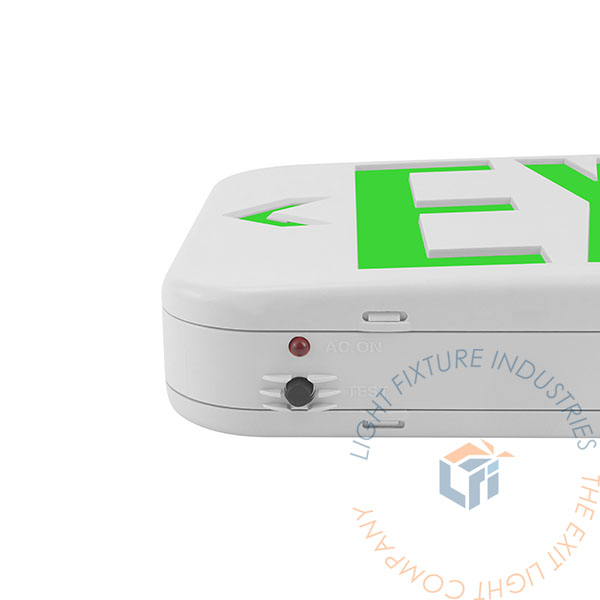

- Push-to-test switch
- 120 or 277 VAC operation
- Injection-molded, VO flame retardant, high impact housing
- Charge rate / power on LED indicator light

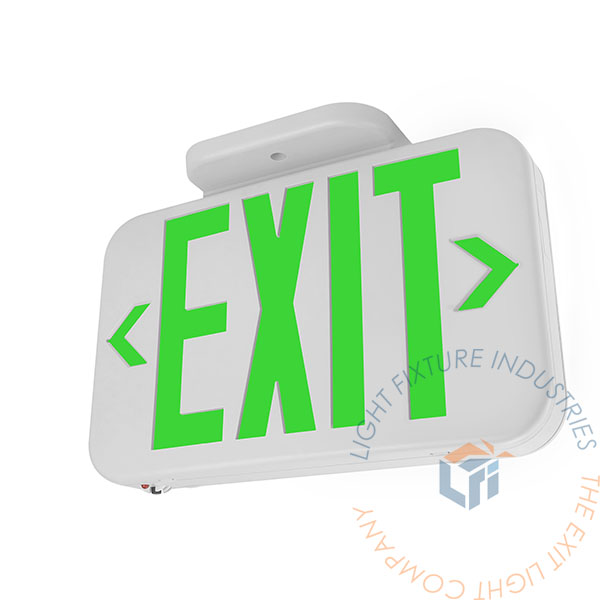

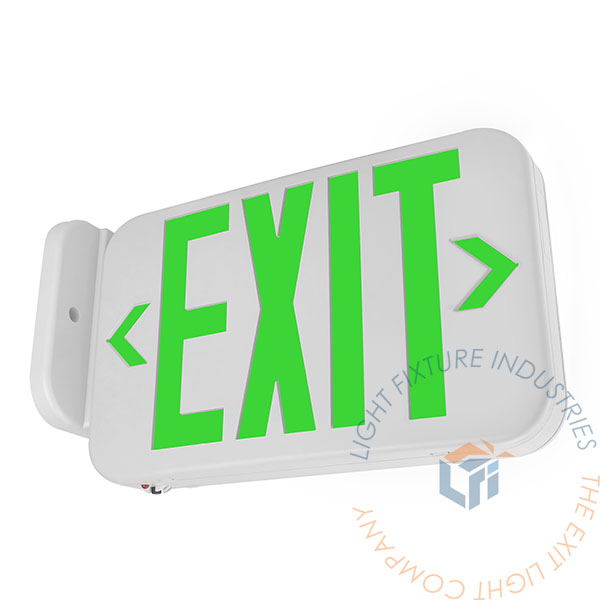

- Universal mounting canopy for top or side installation
Previous Product Codes: LEDGBB-JR, LEDGBB-JR-RH, LEDG-JR
SPECIFICATIONS
Dimensions | |
---|---|
Width | 11.6" |
Height | 7.2" |
Depth | 2" |
Weight | 4.00 lb |
WHAT'S INCLUDED
- GREEN LED Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION

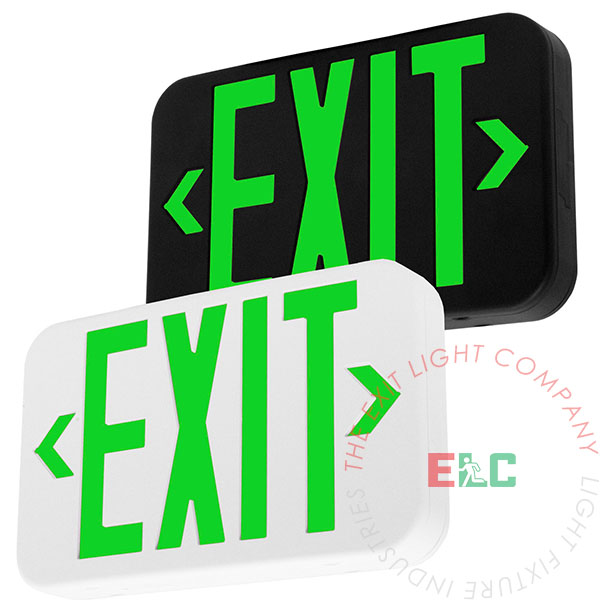

The LEDJR-G LED Exit Sign is contructed from injection molded, V-0 flame retardant, high impact thermoplastic housing. White housing is standard.
ILLUMINATION
The LEDJR-G illumination is achieved by use long-lasting, efficient ultra bright green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours

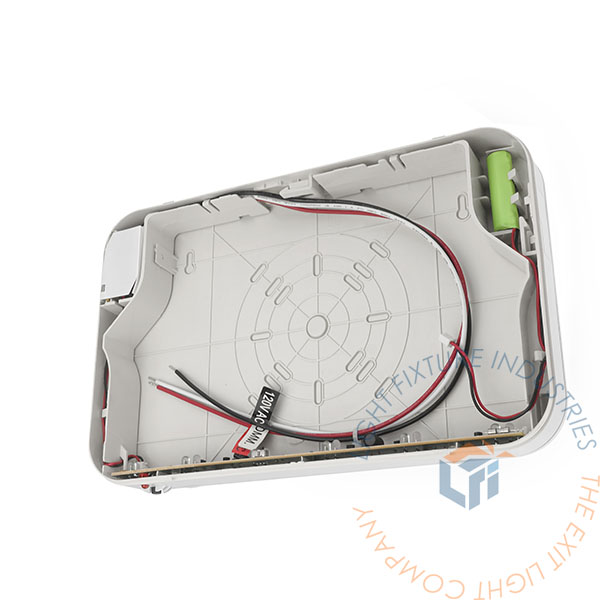

BATTERY - BATTERY BACKUP
The LEDJR-G Exit Sign is designed with a maintenance-free 1.2V 1000mAh NiCad battery (Battery Backup Models) or a 3.6V 1800mAh battery (Remote Head Capable Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
Temperature Ratings | |
Battery Backup + Remote Head Capable | 20°C to 30°C / 68°F to 86°F |
Battery Backup | 0°C to 0°C / 32°F to 104°F |
REMOTE HEAD CAPABLE OPTION
The remote head capability option allows the LED unit to supply power to up to two additional 6V remote heads. Remote wattage of 14.4W available. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
INSTALLATION
The LEDJR-G Exit Sign is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions
