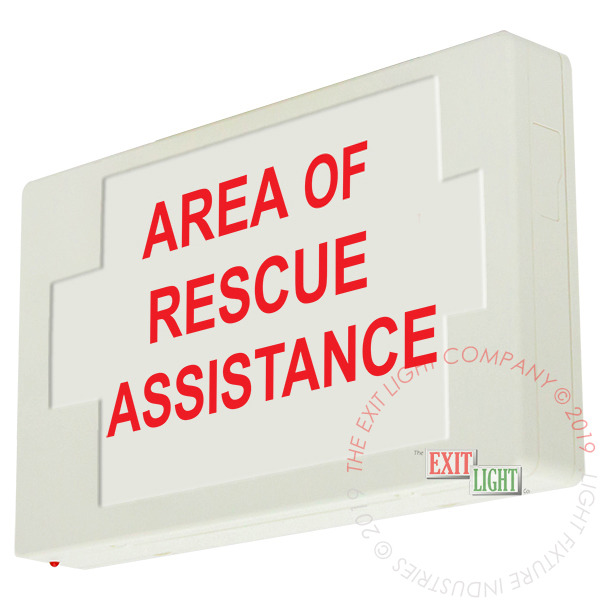

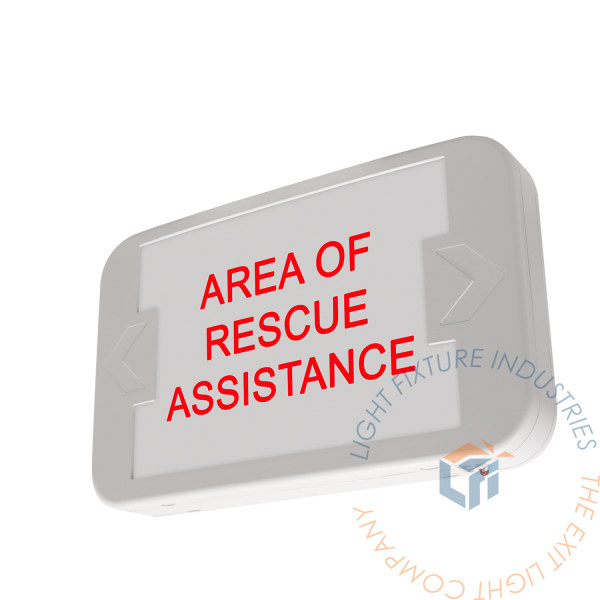

Exit Sign | Custom Wording | AREA OF RESCUE ASSISTANCE [EX-CU-AREA-OF-RESCUE-ASSISTANCE]

https://www.lightfixtureindustries.com/web/image/product.template/1130/image_1920?unique=da1aeca

137.00 137.0 USD 137.00

112.00

Not Available For Sale

  • Letter Color
  • Operation Type
  • Sides

This combination does not exist.


Download Spec-Sheet:
Installation Instructions:

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • Mounting bracket for ceiling, wall mount (flag pole style) or flush mount included
  • Injection-molded, VO flame retardant, high impact housing
  • Constant uniform illumination
  • 120/277VAC
  • Short circuit protection / voltage surge protection
  • Green LEDs and black housing available upon request


SPECIFICATIONS

Dimensions
Height 7.5"
Depth 1.75"
Length 12.25"
Weight 5.00 lb


CONSTRUCTION

The EX series is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing.  Available in white and black housing.

ILLUMINATION

The EX series illumination is achieved by use of long-lasting, efficient ultra bright red or green LEDs.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.  The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EX series is designed with a maintenance-free 4.8V 700mAh NiCad battery that provides a minimum emergency duration of 90 minutes.  Recharged time of the battery is 24 hours.  Operation temperature range is 20°F(-7°C) to 95°F (35°C).


ELECTRICAL COMPONENTS

Dual voltage input 120/277VAC operation.  LED display indicates AC/ON.  An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operation status of the unit.  Unit offers surge protected, solid state circuitry.

INSTALLATION

The EX is suitable for surface wall, side and top mounting via included canopy.  Snap together design allows for quick and easy installation.

Mounting Configurations Explained

View Installation Instructions
