Exit Sign | RT Series Edge Lit Red or Green [ELRT-U]
|

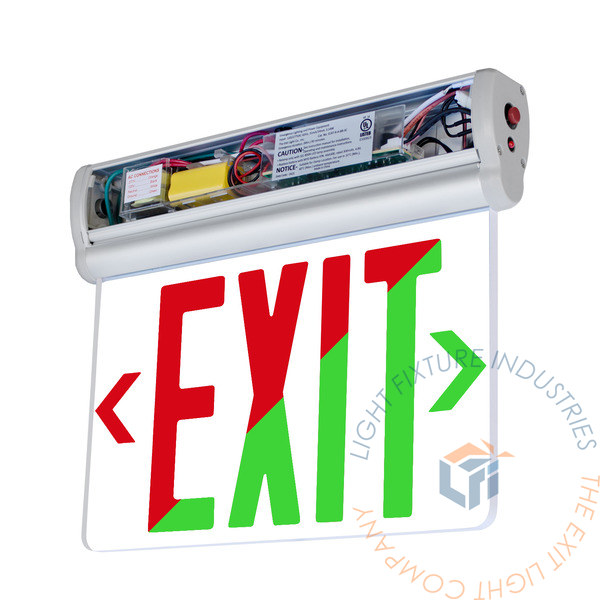

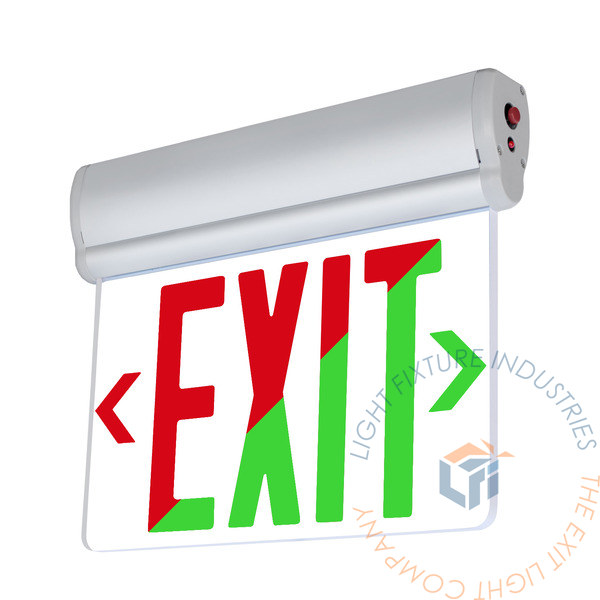

The ultimate exit sign in design and versatility. This Red LED Edge Lit Exit Sign will solve almost any mounting configuration problem. This one style allows for surface, recessed and wall mount installation. The edge lit panel is constructed of high grade acrylic with customizable directional arrows to point towards exit direction. The removable front cover makes installation and maintenance headache-free!
|
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Listed for damp location
- Field Selectable Red and Green
- Most versatile edge lit exit sign on the market

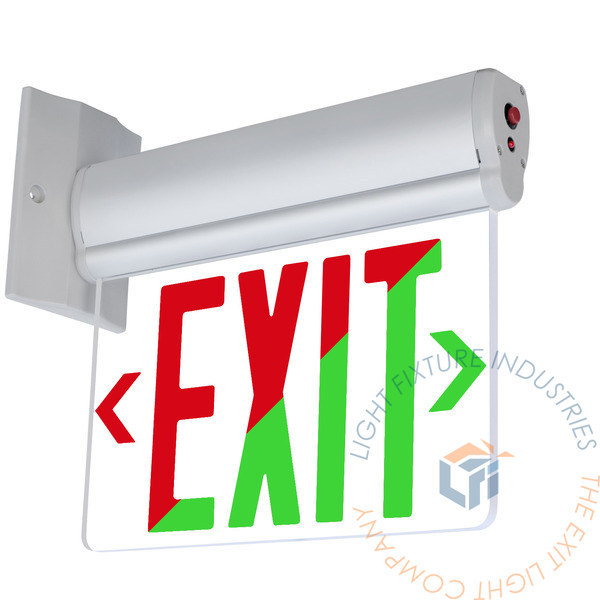

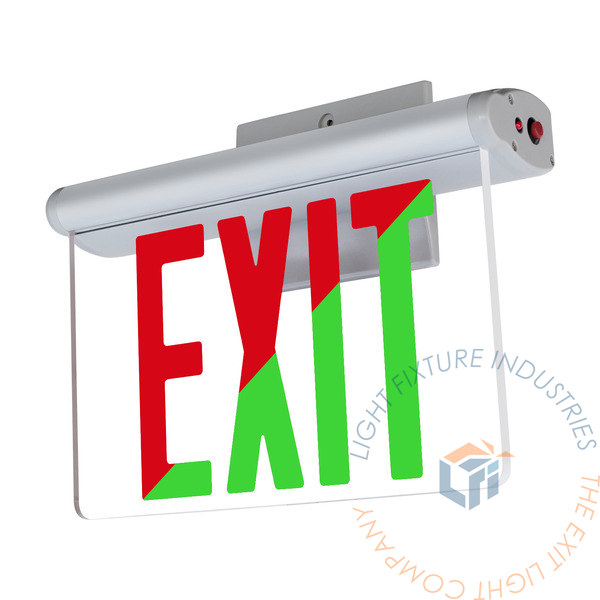

- Wall, sloped, high, or standard ceiling and recessed mount available
- Aluminum housing with high grade acrylic face
- Field Installable Arrows for Left, Right or Both directions.
- Long life LED illumination
- Test switch and charge rate indicator on battery backup models
- Dual 120/277 volt operation
- CEC Compliant
Previous Product Codes: ELRTR
Available in Recessed Mount (ELRT-R-RM)
Compatible Battery: B3A-48
How To: Replace battery and faceplate
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 12.13" |
| Height | 9.75" |
| Depth | 1.75" |
| Weight | 5.00 lb |
WHAT'S INCLUDED
- LED Exit Sign
- Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
- Mirrored Double Sided "EXIT" faceplate (extra cost)
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The ELRT-U Edge Lit Exit Sign housing is constructed of high-grade extruded aluminum housing with an etched, clear acrylic panel. Double sided panel comes as mirrored configuration. Lettering is 6” high with 3/4” stroke. Aluminum housing is standard, black and white housing available.
ILLUMINATION
The ELRT-U Exit Sign series delivers long-lasting LED illumination with a high-output LED board that includes both red AND green options (Red is set as default). The energy-efficient design consumes less than 3 watts for AC-only models, while battery backup units are rated at less than 4 watts, ensuring reliable performance with minimal energy use.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The ELRT-U series is designed with a 3.6V 300mAh maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 50°F to 104°F |
SELF-TESTING OPTION
This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.
DUAL CIRCUIT
A dual circuit exit sign is designed with two independent electrical inputs, allowing it to remain illuminated even if one power source fails. This redundancy enhances safety and ensures compliance with strict building and fire codes, making it ideal for high-occupancy areas like stairwells, hospitals, and commercial buildings. Dual circuit signs are a reliable solution for maintaining continuous egress illumination without relying solely on battery backups.
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.
ELECTRICAL SPECIFICATIONS
| Series | Input Voltage | Power Consumption | Current | Discharge Duration |
|---|---|---|---|---|
| ELRT-U-BB | 120/277VAC 60Hz | 3.5W | 31mA (120V) 15mA (277V) | 90 Minutes |
| ELRT-U-AC | 120/277VAC 60Hz | 2.4W | 31mA (120V) 15mA (277V) | No Battery |
INSTALLATION
The ELRT-U is versatile and adaptable, suitable for mounting on walls, sloped or side surfaces, as well as high or standard ceilings. It comes with field-installable directional arrow indicators for added flexibility. All necessary hardware is included for a hassle-free installation.
Mounting Configurations Explained
View Installation Instructions

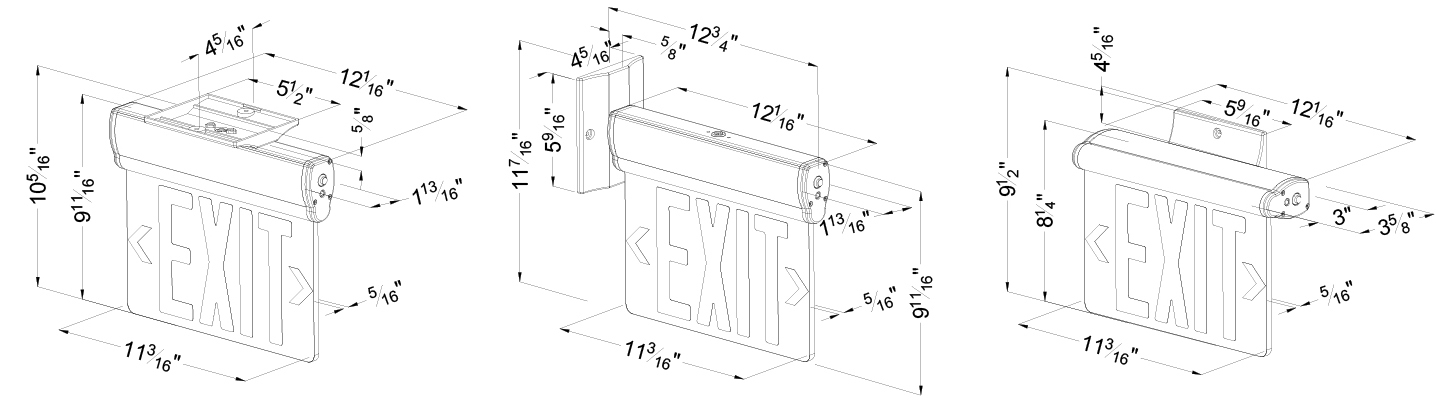

DIMENSIONS
