Emergency Light | XD Series Wet Location Rated Decorative [EL-XD]

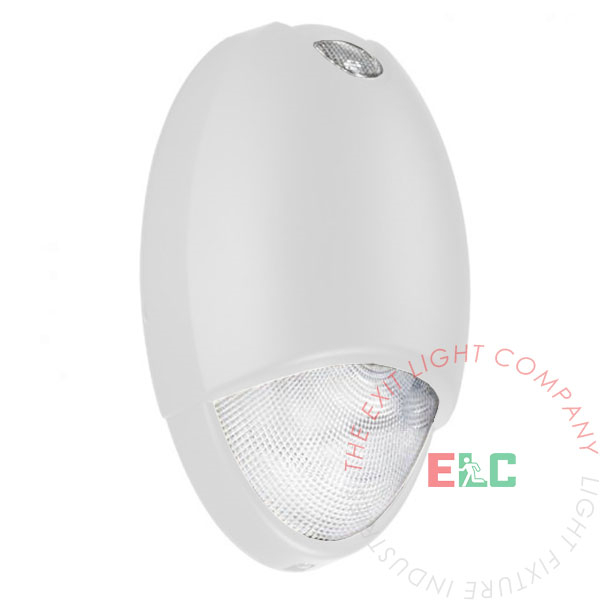

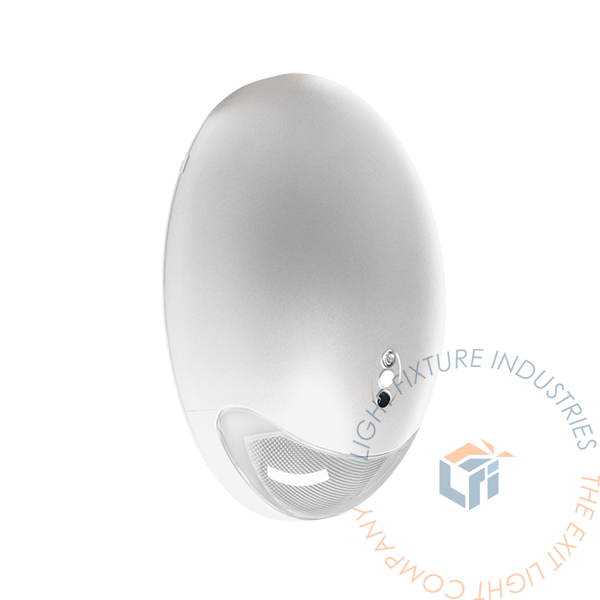

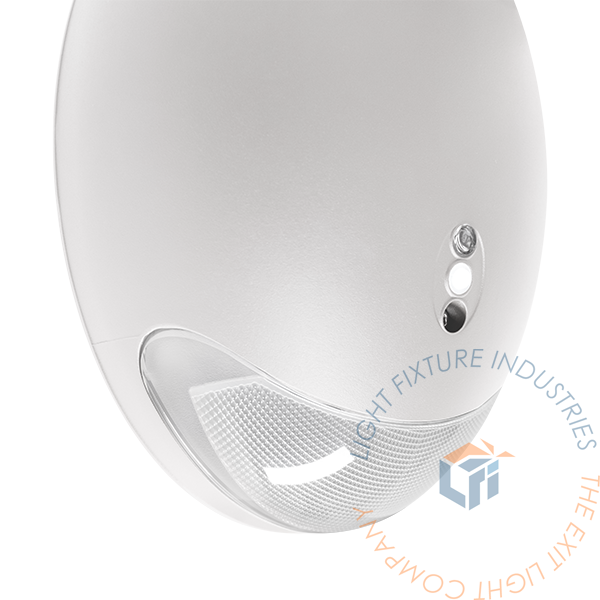

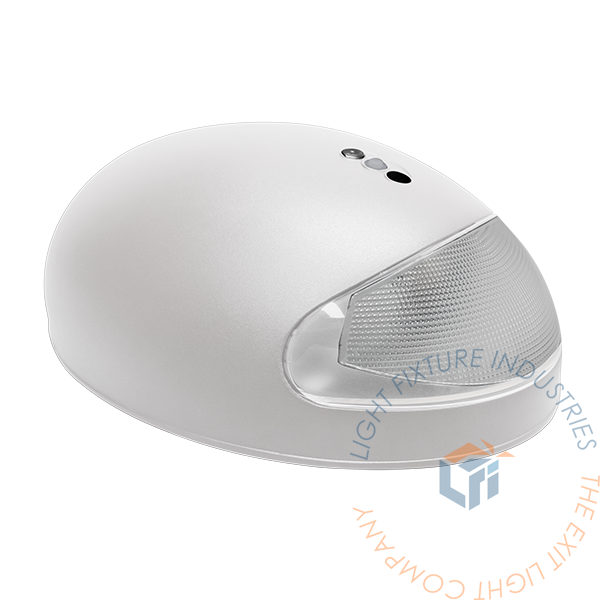

Contemporary, low-profile architectural emergency egress light. Durable die cast aluminum housing provides both an attractive and dependable egress lighting that complements any exterior design. Also a great choice for cold, damp, or wet environments.
Housing available in dark bronze, white or black (additional costs may apply)

125.00 125.0 USD 125.00

130.00

  • Housing Color
  • Operation Type
  • Temp Rating

This combination does not exist.

Operation Type: Battery Backup

Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL924, NFPA70, NFPA101, NEC700.16 and OSHA
  • Listed for damp or wet location
  • Die cast aluminum housing
  • UV Stable polycarbonate lens and mirrored reflector
  • UL94-5VA Flame rating on polycarbonate
  • Universal transformer for 120 or 277 VAC operation (60 Hz)
  • Wall or ceiling mount with quick connect mount
  • Optional cold weather package: -22°F to 122°F
  • Maintenance-free battery
  • Low voltage disconnect (LVD)
  • Charge rate / power on indicator

Previous Product Codes: ELX-D


SPECIFICATIONS

Dimensions
Width 6.56"
Height 10.5"
Depth 3.62"
Weight 6.00 lb

WHAT'S INCLUDED

  • Dark Bronze, White, or Black Indoor/Outdoor LED Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)


CONSTRUCTION

The EL-XD light is constructed from premium die cast aluminum components and is available in three colors (Bronze, Black, and White).

ILLUMINATION

The EL-XD Light series is designed with super bright 12W COB LEDs. 1000lm output in Normal Light Mode and 190lm output in Emergency Light mode.

BATTERY - BATTERY BACKUP

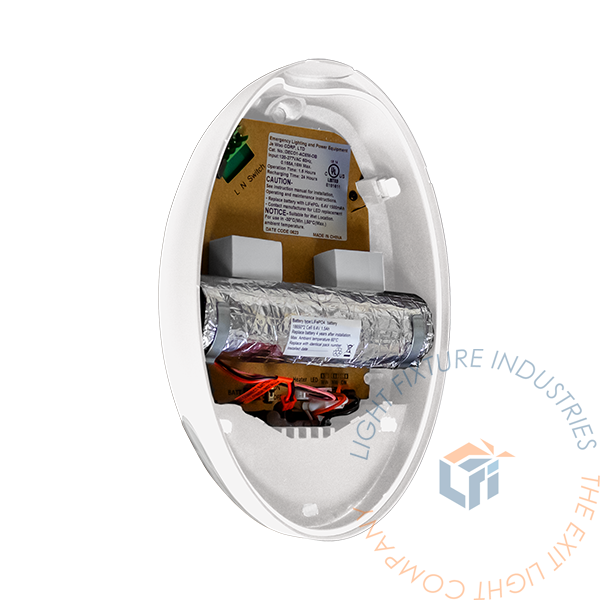

The EL-XD Light offers a long life maintenance-free 4.8V NiCad battery. Internal solid-state transfer switch automatically connects the internal battery to LED board for a minimum 90 minute emergency operation.

OPERATIONAL TEMPERATURE

Temperature Ratings
SeriesTemperature
Standard Option32°F to 104°F
Expanded Temperature Rating-22°F to 122°F


ELECTRICAL COMPONENTS

120/277VAC dual primary 60Hz operation. Standard unit includes G2 self test/diagnostics. Offers field-selectable wiring that allows for AC operation of unit to be controlled using a wall-switch, photocell, or other switching mechanism (switch mechanism not included).

INSTALLATION

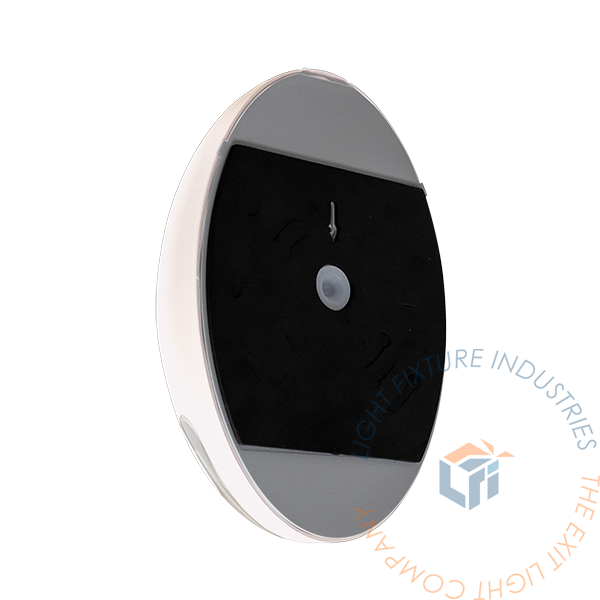

The EL-XD Light has a universal knockout patter located on the back of the plate for easy wall mounting. Also has a threaded opening at the top for conduit mounting.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
