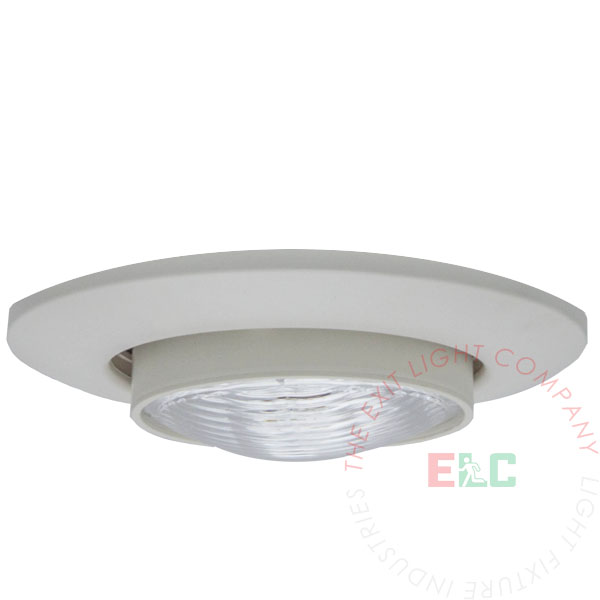

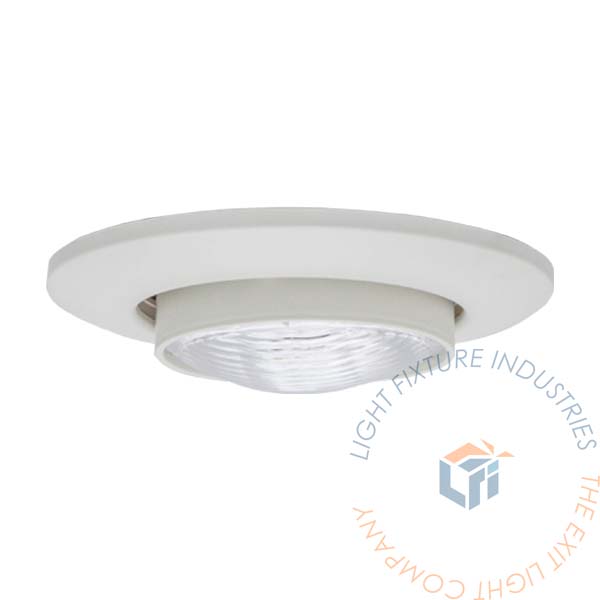

Emergency Light | Recessed 1 Head | White Housing [EL-RG6]
Install beautiful architectural emergency lighting directly into ceiling (t-bar). Lamp provides bright, safe lighting. Includes maintenance-free 6V backup battery. Works on either 120 or 227 VAC.
|Operation Type: Battery Backup|
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit produces High Output Halogen light.
This unit contains a battery for backup power. The battery must be connected during installation.
- UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- 120/277V operation
- Aluminum housing with plastic gimbal trim
- IC rated for direct contact with insulation
- Uses one 6V 8W halogen lamp
- LED indicator light and test switch
- Low voltage battery disconnect protected
- Housing adjusts 1.375" to accommodate various ceiling thicknesses
Compatible Battery: B6V4A
- 6" Adjustable Recessed Emergency Light
- Installation Instructions & Hardware
- SLA Battery - Must connect the battery after installation (Located inside unit)
The EL-RG6 is constructed with a steel mounting frame and 6" steel recessed housing with mounting bar hangers. The impact-resistant thermoplastic adjustable trim is securely attached to housing with spring clips.
The EL-RG6 series has an adjustable, ultra-bright 8W bi-pin halogen lamp head. The sealed beam gimbal trim with smooth chrome-plated reflector and plastic lens offers optimal light distribution.
The EL-RG6 has a 6V maintenance-free, rechargeable Sealed lead acid battery. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge. Junction box with 3/4" knockouts for AC input.
Included Bar hangers allow for drywall or drop ceiling mount installations.
