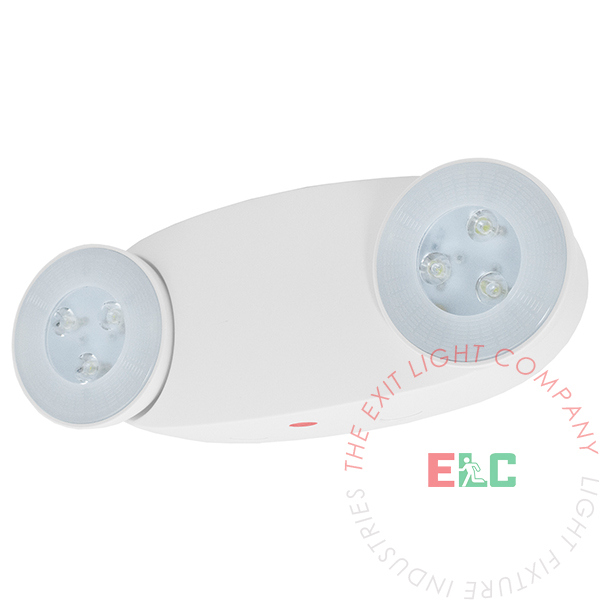

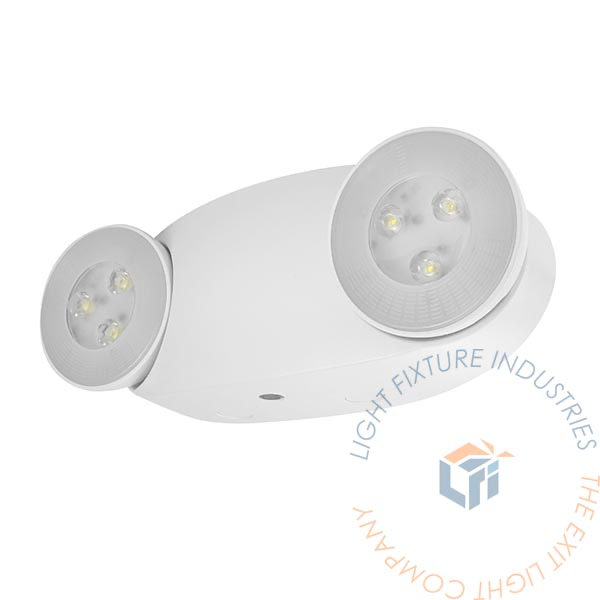

Emergency Light | M2 Series Oval | White Housing | High Output [EL-M2-W-HO]
High Output fully adjustable emergency light with energy-saving LED lamps in an economical package. Long lasting, low maintenance battery. Provides emergency power for up to 90 minutes, works on either 120 or 277 VAC.
Brighter than our standard EL-M and EL-M2 unit with 650 Lumen Lamp Heads
| Operation Type: Battery Backup |
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Damp location listed
- Lumen: 650lm
- 120/277 VAC operation
- Two fully adjustable, glare-free LED lighting heads
- Push-to-test switch and status indicator
- Injection-molded, high impact, UV-stabilized, UL 94 VO thermoplastic housing
- Lightweight with snap-together construction for easy installation
- Universal mounting plate with quick-connect feature
SPECIFICATIONS
| Dimensions | |
|---|---|
| Height | 4.9" |
| Depth | 2.8" |
| Length | 11.4" |
| Weight | 3.00 lb |
WHAT'S INCLUDED
- White or Black All LED Emergency Light
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation (Located inside unit)
CONSTRUCTION
The EL-M2-HO series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.
ILLUMINATION

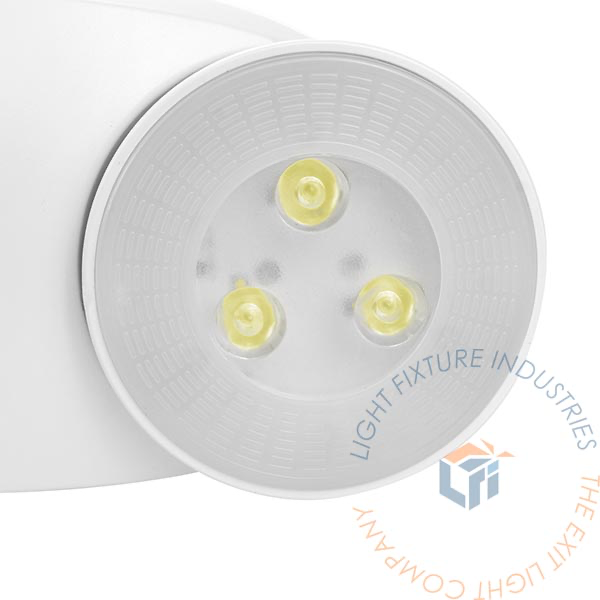

The EL-M2-HO emergency light features two 3 piece super bright LEDs providing 650 lumen. Lamp heads are on track-and-swivel guides. Glare-free lenses provide clear light source to ensure performance in emergency situations.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP

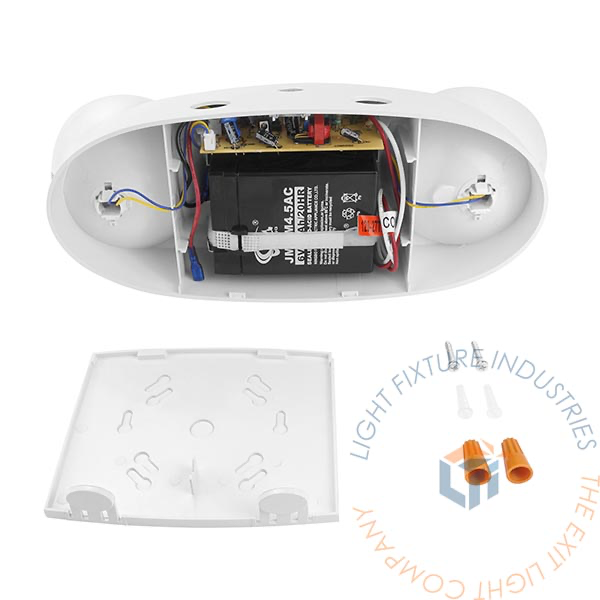

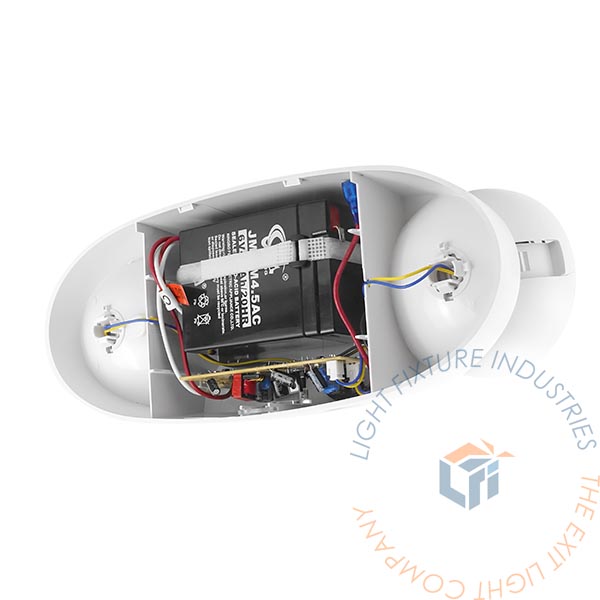

The EL-M2-HO Emergency Light series is designed with a maintenance-free 6V 4.5mAh sealed lead acid battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°) to 104°F (40°).
ELECTRICAL COMPONENTS

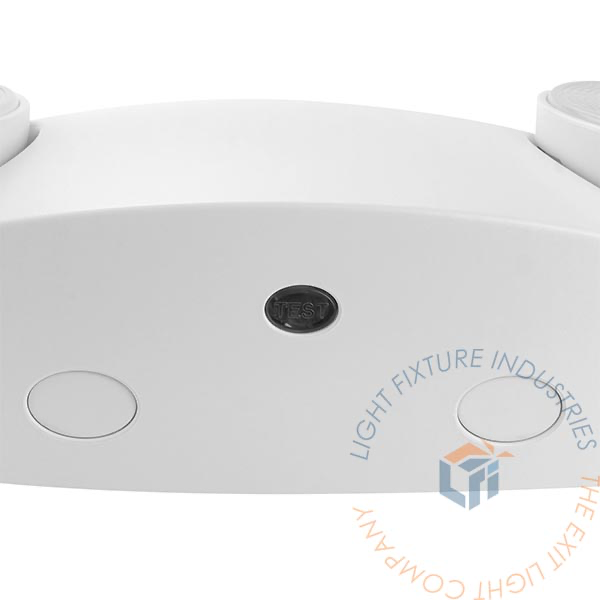

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
INSTALLATION

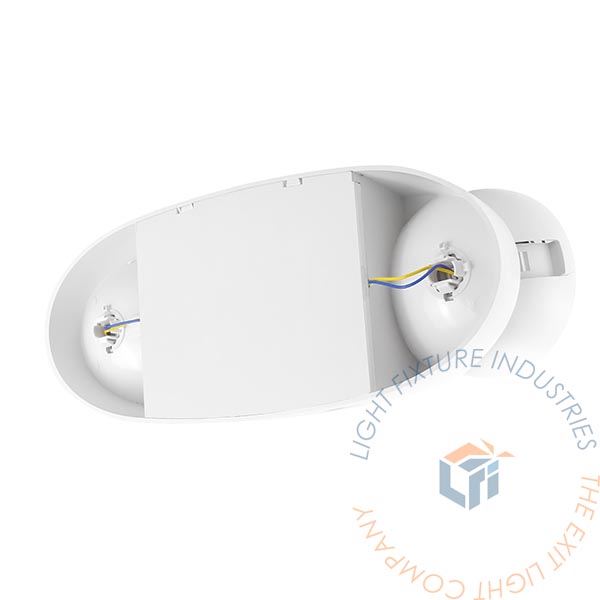

The EL-M2-HO is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.
Mounting Configurations Explained
DIMENSIONS
