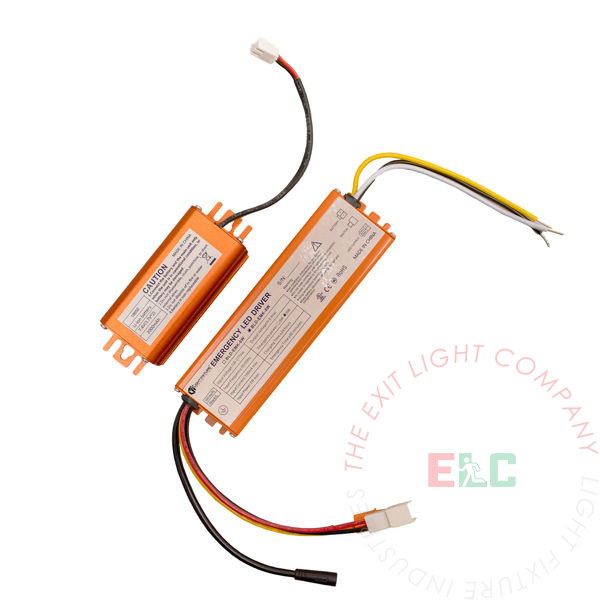

    Accessory | Lighthouse Emergency LED Driver and Module | 6-8.4VDC 8W Output [EB-LHOUSE-8W]

     Wiring Made Simple

    LED Driver is designed with an easy to follow wiring schematic

    Battery Included

    This unit contains a battery for backup power. The battery must be connected during installation.

    High Voltage

    LED Driver is designed to support high voltage fixtures

    FEATURES

    • UL Listed for factory and field installation
    • Compact Design
    • Simple Wiring
    • Self-Testing (monthly/yearly)
    • Constant Output Power
    • Built-in Lithium Battery



    SPECIFICATIONS

    Dimensions
    Width 1.65"
    Height .87"
    Length 5.55"

    What's Included

    • LED Driver
    • Installation Instructions
    • LED Strip
    • Test-Button
    • Battery Pack

    CONSTRUCTION

    The EB-LHOUSE emergency driver is constructed from durable steel.

    ILLUMINATION

    The EB-LHOUSE emergency driver features a bright LED strip that puts out birght 5000k light (1000lm).

    EMERGENCY OPERATION

    The EB-LHOUSE emergency driver provides a minimum of 90 minutes of battery backup time

    BATTERY - BATTERY BACKUP

    The EB-LHOUSE emergency driver is designed with a 7.4V 2000mAh maintenance-free lithium battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

    OPERATIONAL TEMPERATURE

    Temperature Ratings
    Standard Option41°F to 122°F




    ELECTRICAL COMPONENTS

    Model No.EB-LHOUSE-8W
    Input Voltage100-277V AC
    Brightness1000lm
    Emergency Power8W
    Battery TypeLi-ion
    Emergency Time90 mins

    INSTALLATION

    The EB-LHOUSE emergency driver can be installed in different types of indoor troffers, panels, vapor lights, linear lights, most T5 and T8 fixtures. We recommend confirming electrical specs on existing light to make sure the LED Driver is fully compatible.

       Mounting Configurations Explained

    DIMENSIONS
